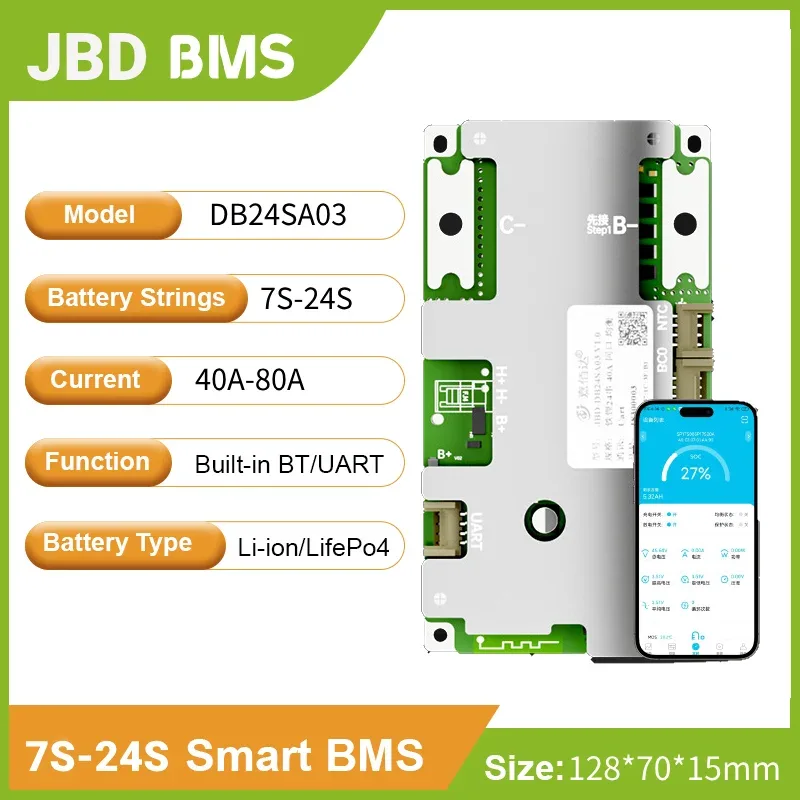

Build-in BT JBD Smart BMS Automatic Identify 7S-24S 8S 9S 10S 11S 12S 13S 14S 16S 20S 21S 22S 40A 50A 60A 80A LFP NMC Battery

SPECIFICATIONS

Accessory Type: Battery Accessories

Application field: Electric motorcycles,tricycles,small four-wheelers

BMS Applicable Battery Type: 3.2V Lifepo4/3.7V Li-ion

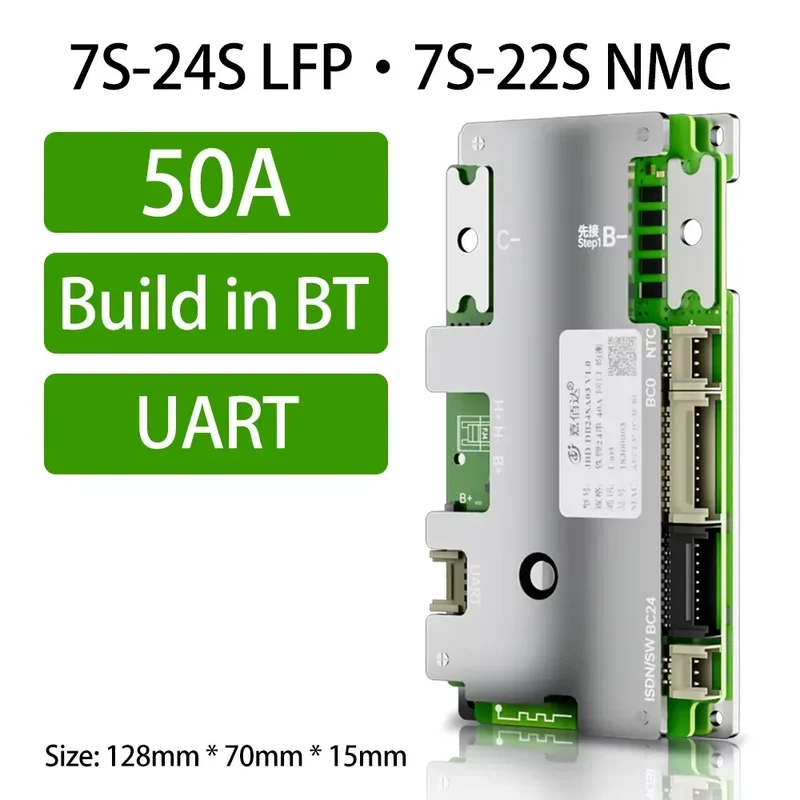

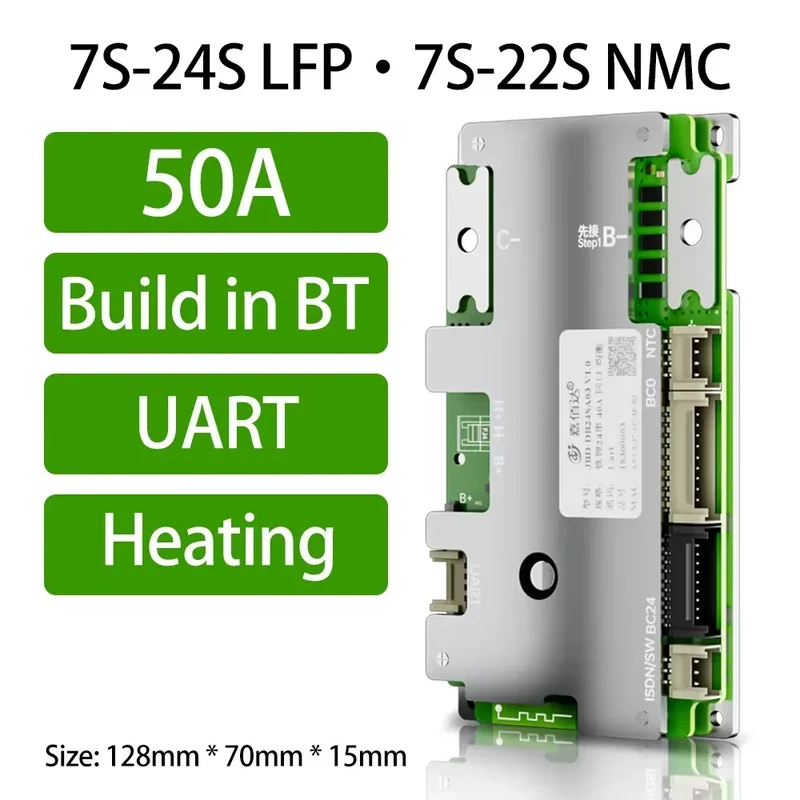

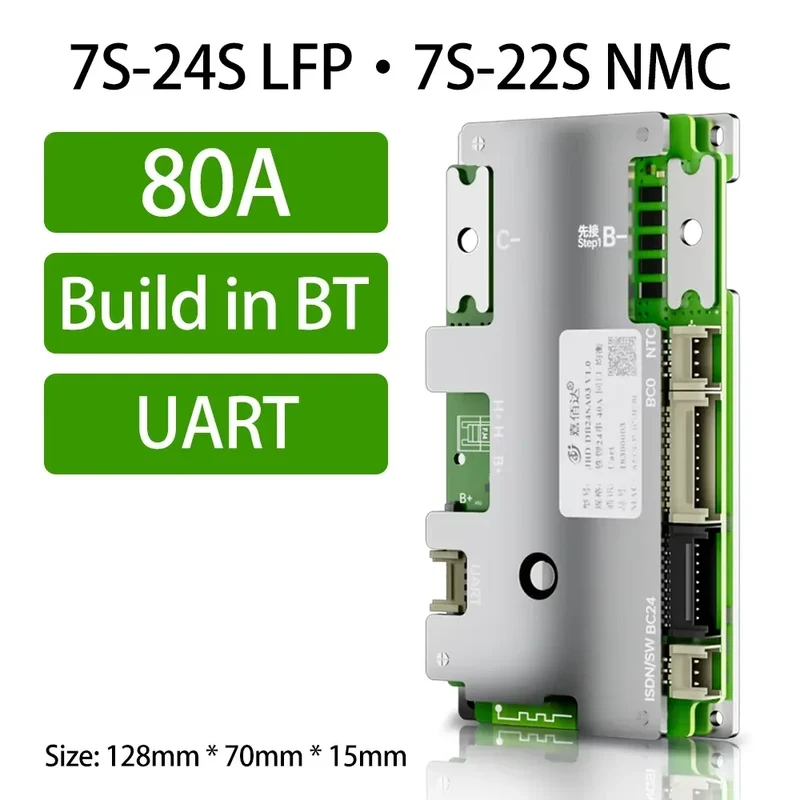

BMS Size: 128*70*15mm

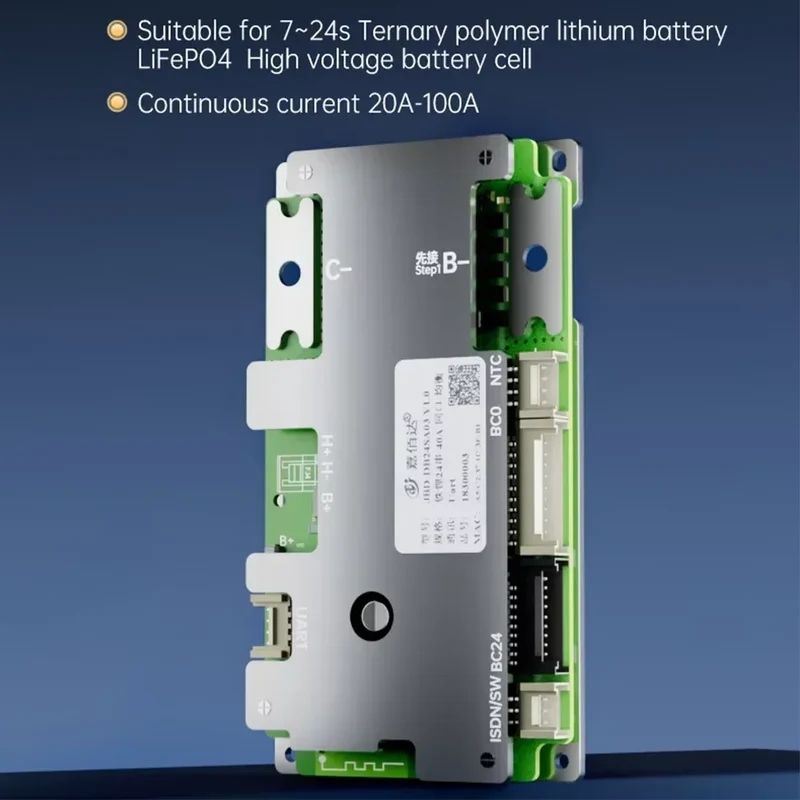

BMS Support Strings: 7s 8s 9s 10s 11s 12s 13s 14s 15s 16s 17s 18s 19s 20s 21s 22s 23s 24s

Balance Current: 30-150mA

Balance Function: Same Port with Balance

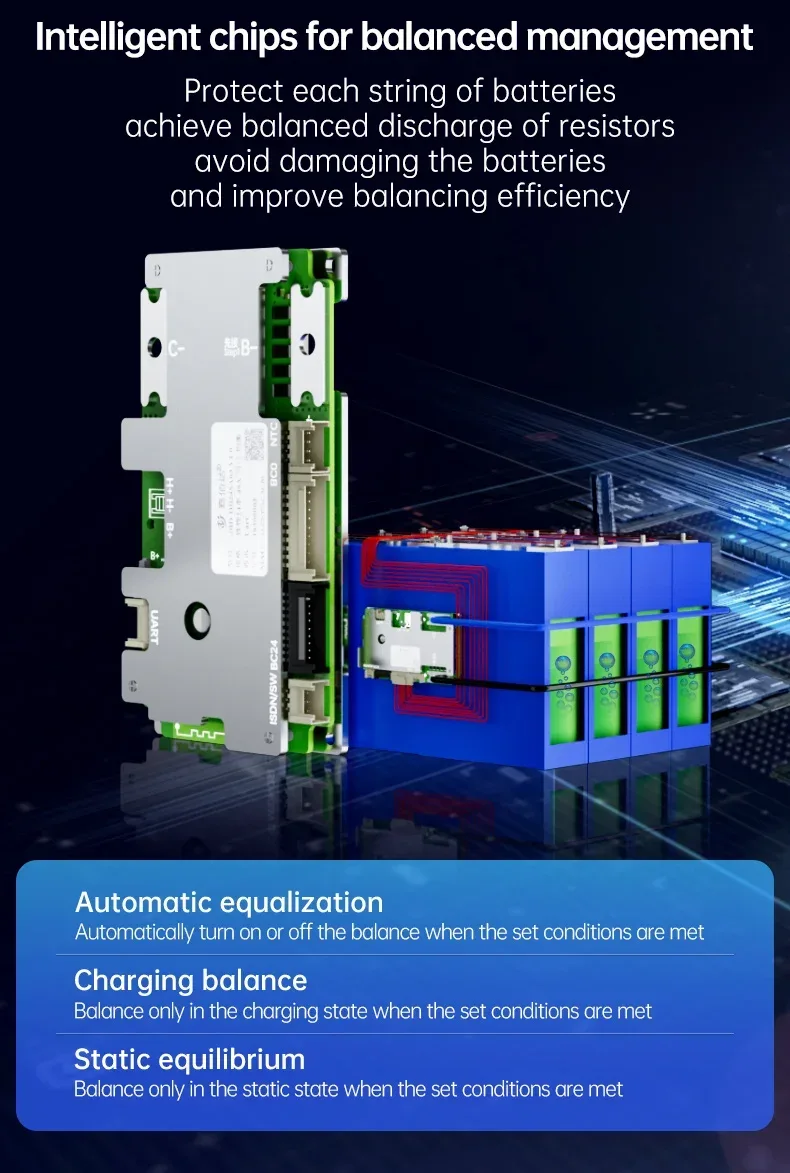

Balance Model: Idle Balance/Charging Balance

Balance Wires: Yes and Free

Battery Included: No

Bluetooth Function: Integrated BT

Brand Name: JBDBMS

Certification: CE,FCC,RoHS

Charger included: N

Choice: yes

Communication Function: UART

Continuous Current: 40A 50A 60A 80A

Feature 1: jbd smart bms

Feature 2: bms 13s

Feature 3: bms lifepo4 16s

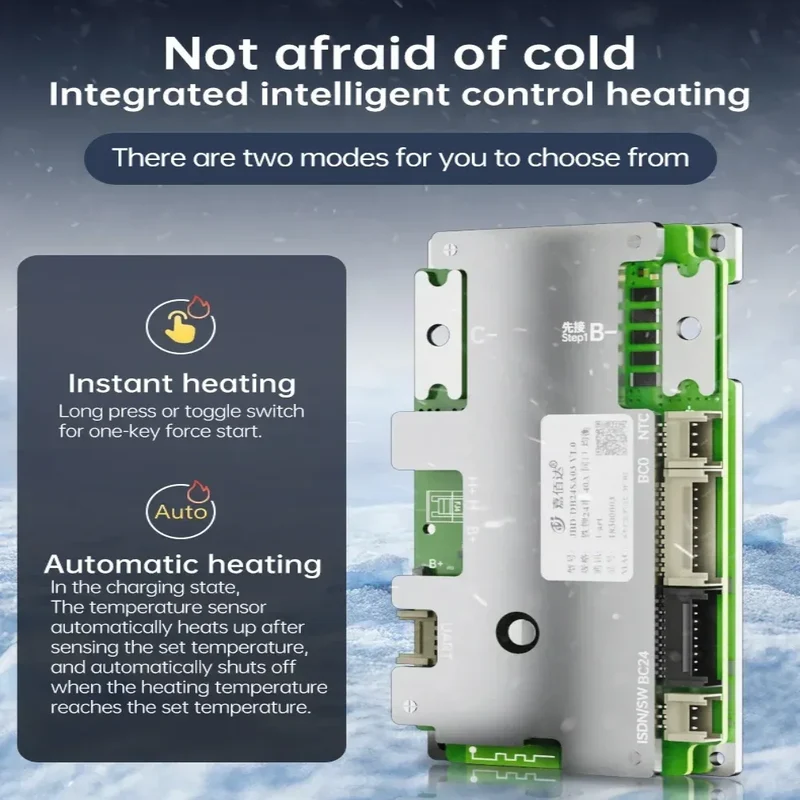

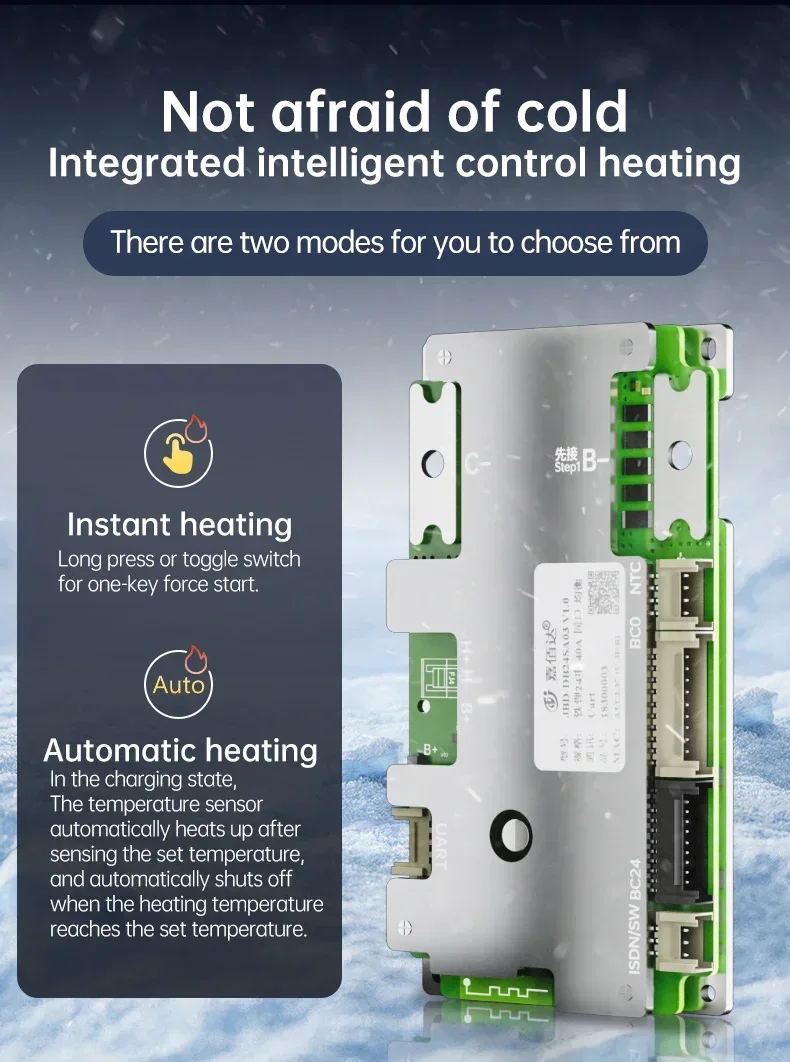

Heat Function: optional,no heating film

High-concerned chemical: None

Model Number: DB24SA03

Origin: Mainland China

Peak Current: Continuous*3

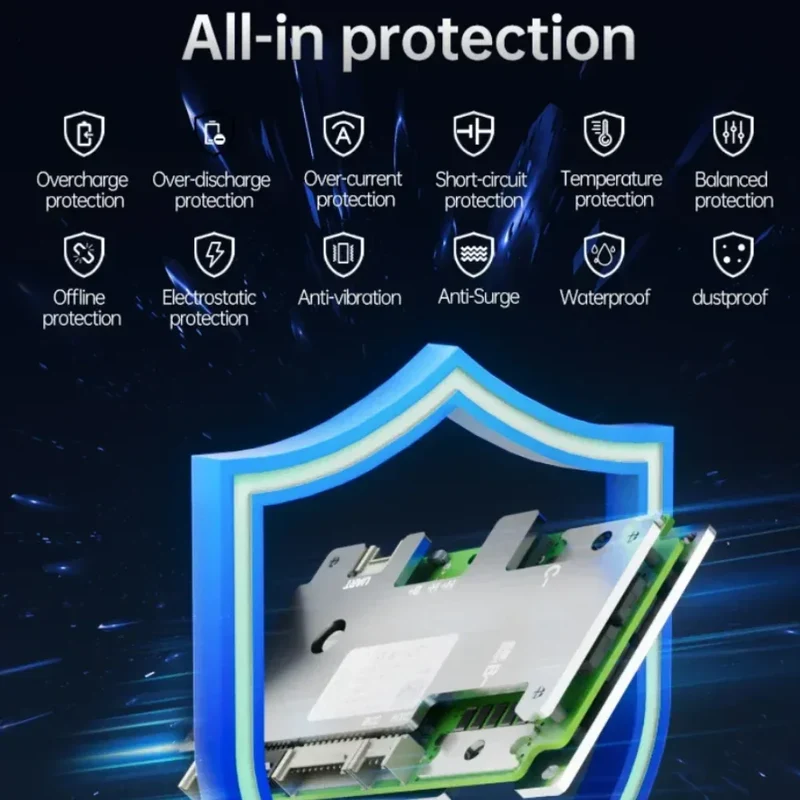

Six Protection functions: Yes

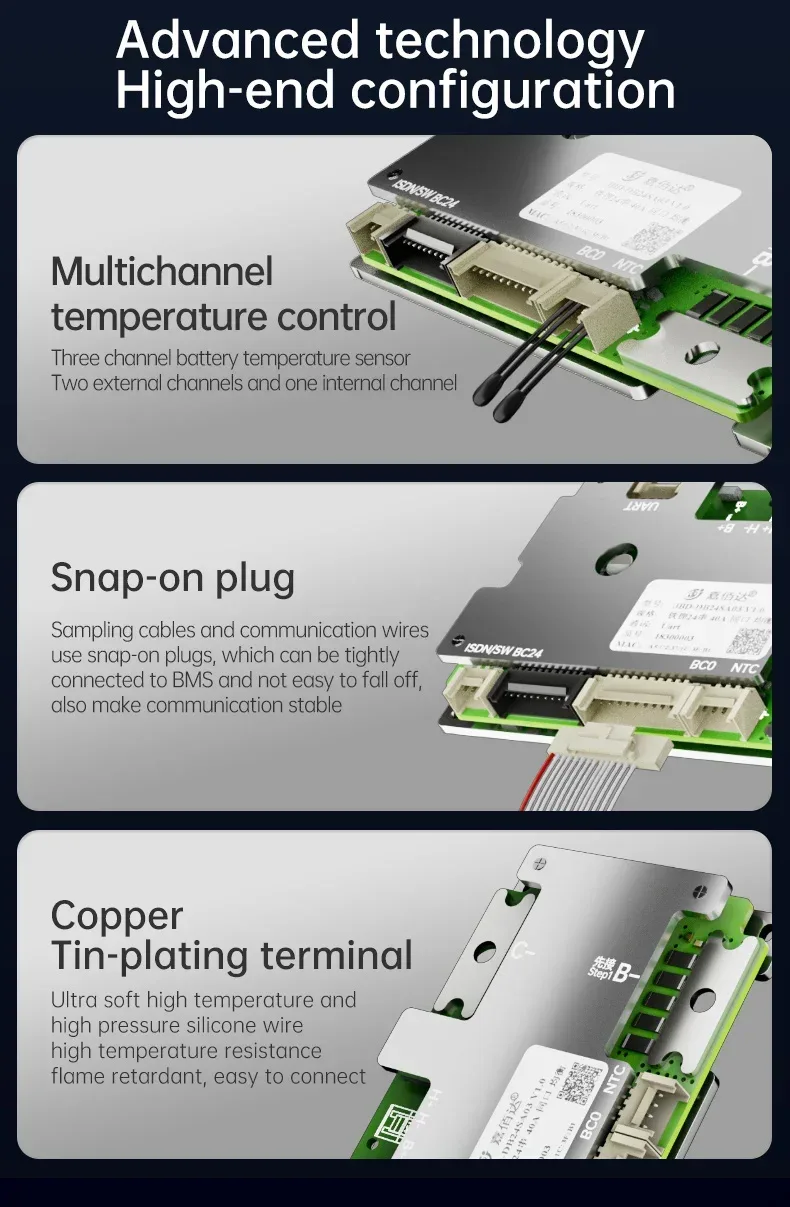

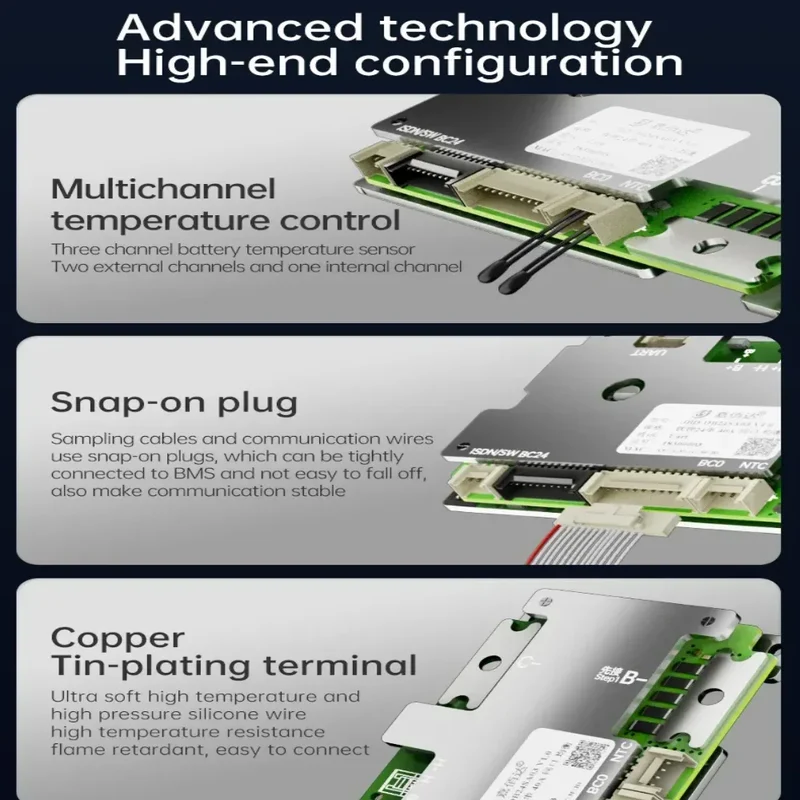

Temp Sensor: 1pc internal,2pcs external

Voltage: 24V 36V 48V 52V 60V 72V 80V

semi_Choice: yes

(1)BT-APP in Phone
xiaoxiangElectric App:
https://mauspadpro.com/appdown/index.html
Support Both IOS and Android version,can monitor and set parameters(need to be within the specified range)
(2)UART-JBD PC Tool Box:can Monitor and Set parameters on PC.
PC Tool Software: https://mauspadpro.com/packfile/JBDTools.zip
(3)UART LCD Displayer:Can monitor parameters on LCD displayer.

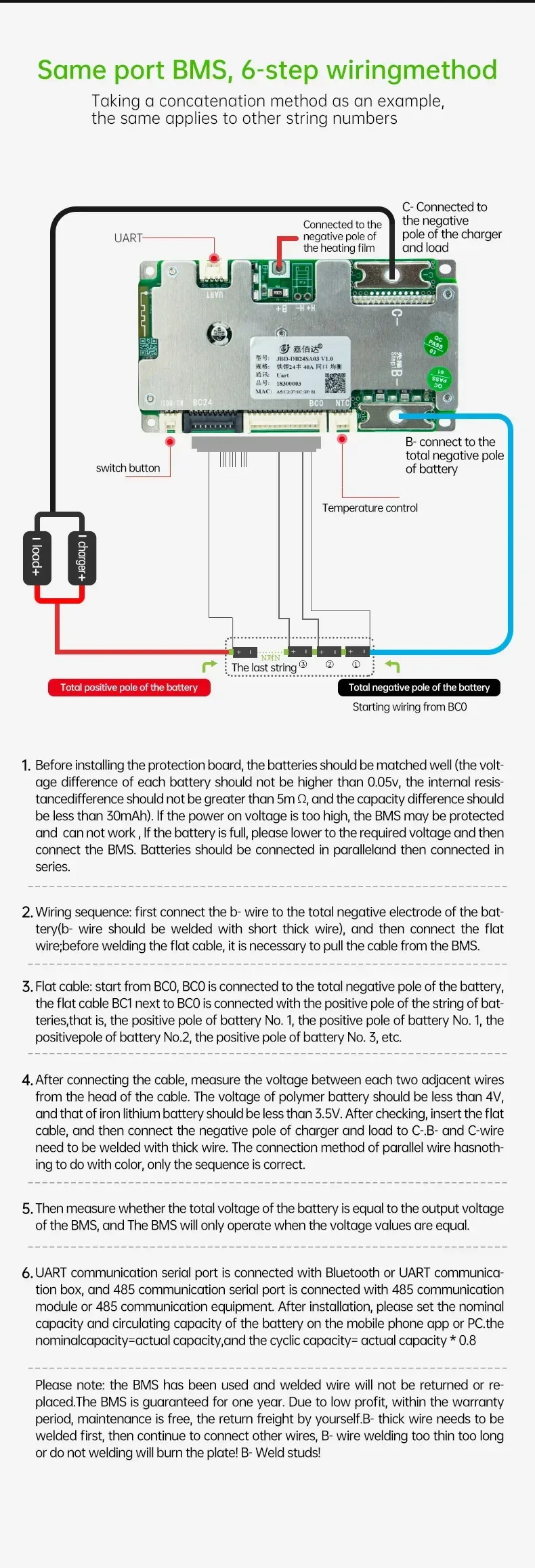

Wiring Diagram
