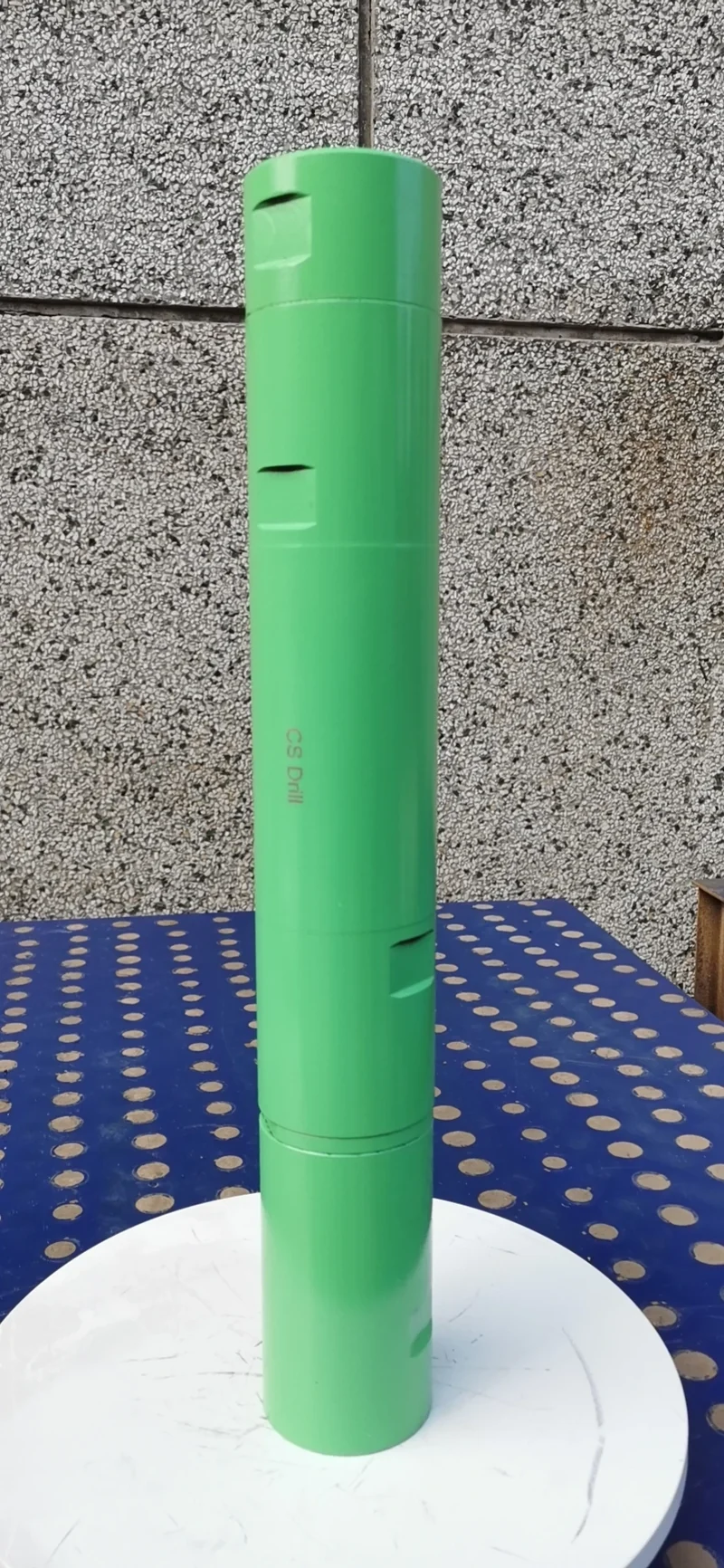

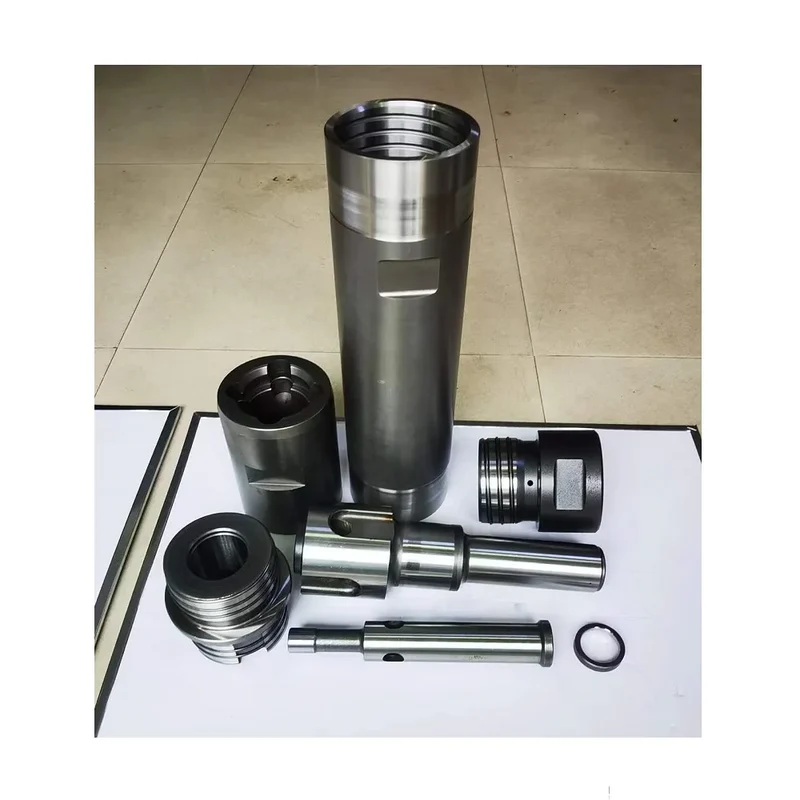

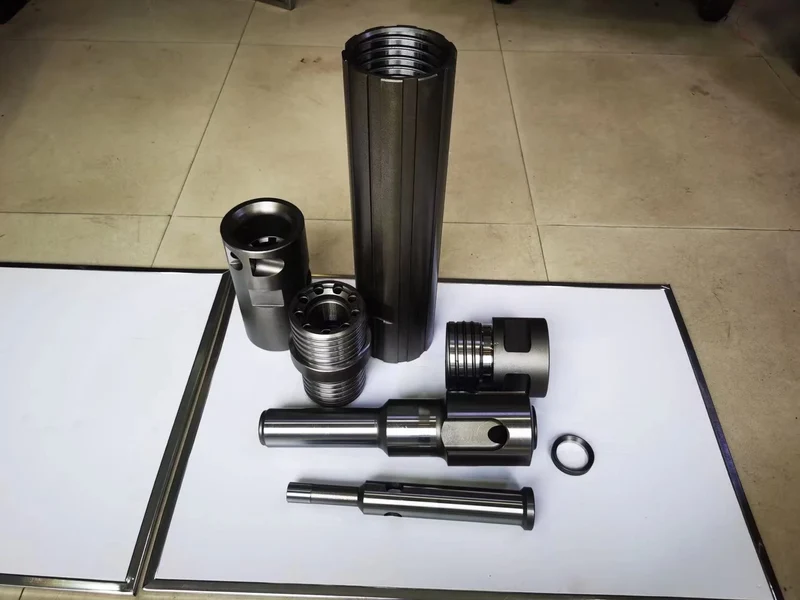

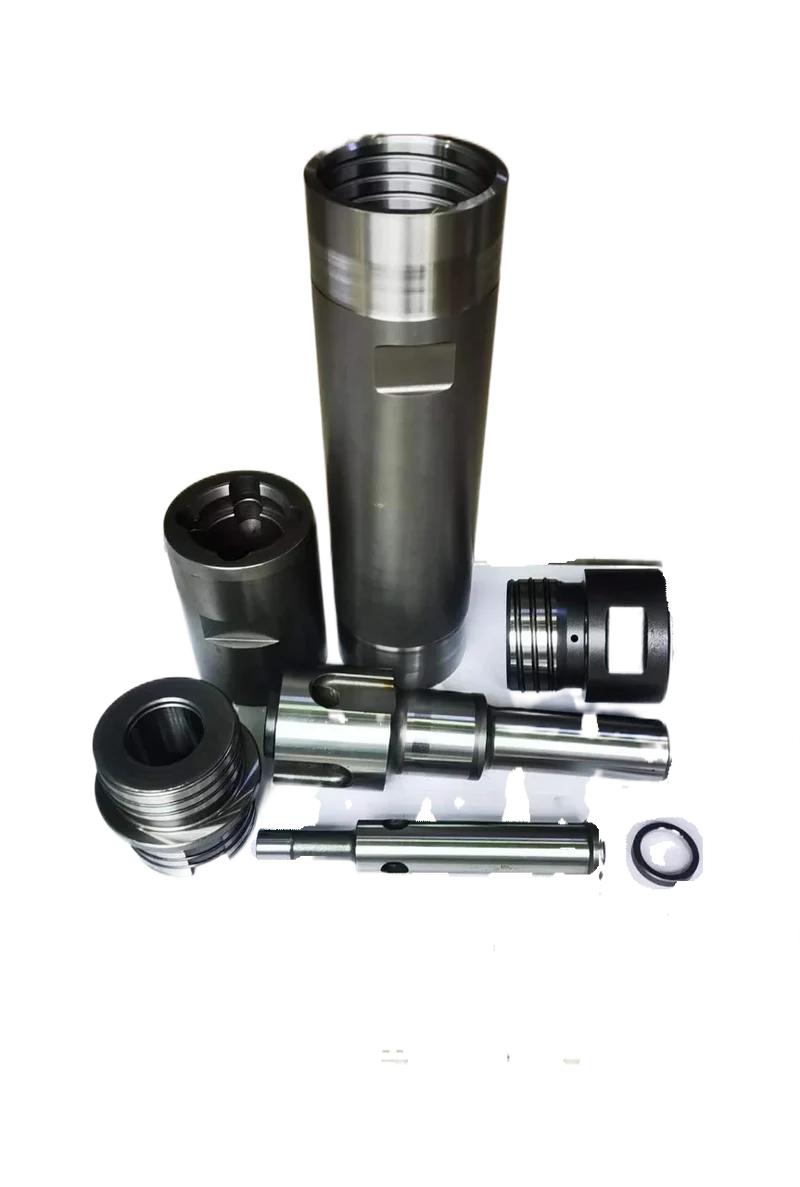

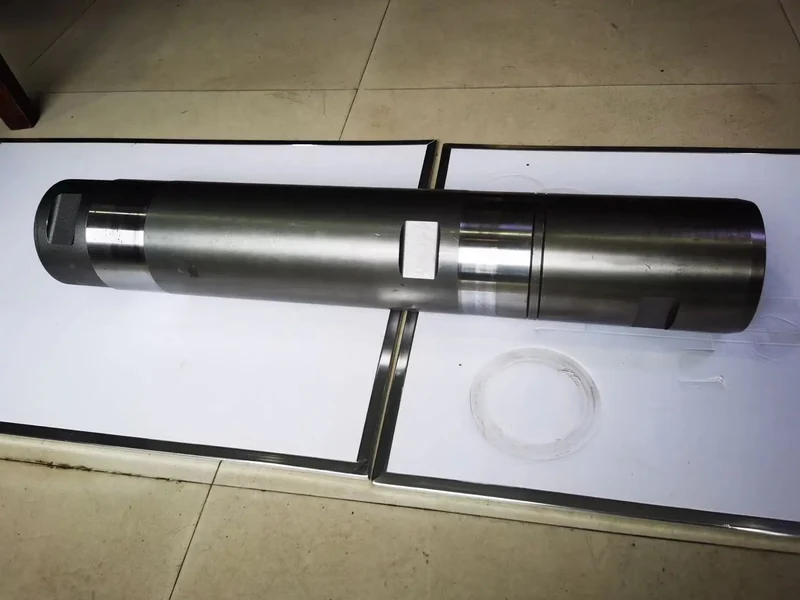

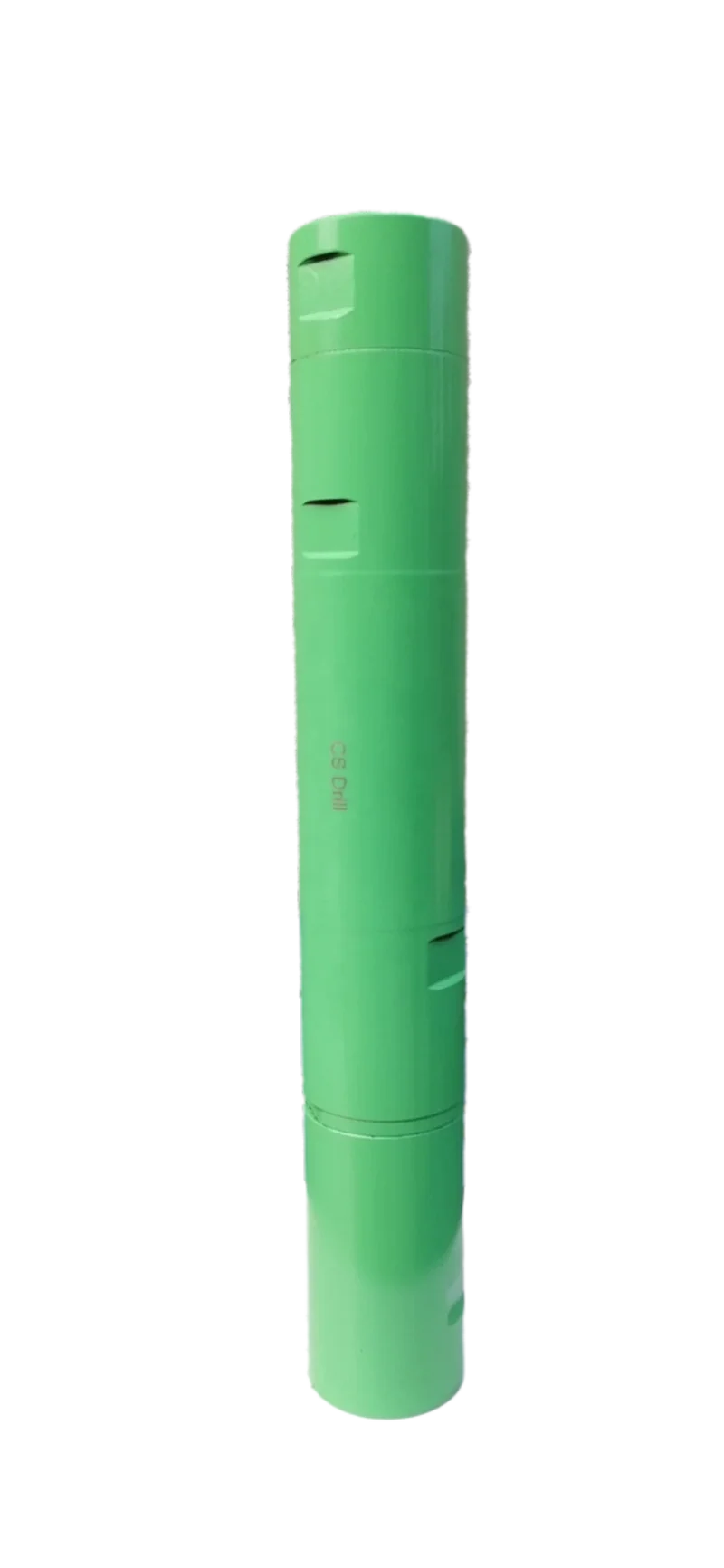

Black Diamond Dth Hammer Low air Pressure Dth Hammer P110 P130 Russia Type for Water Well Drilling

SPECIFICATIONS

Applicable Industries: Machinery Repair Shops,Construction works ,Energy & Mining

Applicable Industriey: Energy & Mining

Brand Name: CS DRILL

Condition: New

Connection thread: RD 50 BOX

Diamater: 62

Hole range: 70-90mm

Length(mm): 868

Machine Type: Drilling Tool

Machinery Test Report: Not Available

Marketing Type: Ordinary Product

Material: Carbon Steel

Net Weight(kg): 12.5KG

Place of Origin: Hunan, China

Place of origin: Changsha, China

Process: Forging+Machining+surface Treatment

Processing Type: Forging

Showroom Location: None

Type: High air pressure hammer,Russia hammer P110

Use: heavy construction mining oil and gas quarries and water-well

Video outgoing-inspection: Provided

Warranty: 1 Year

Weight (KG): 9

Working pressure: 0.7-1.8Mpa

Product Description

P130 hammer

Параметр Значение Длина, без коpонки 657.0 (мм) Тип соединения с коронкой байонетное Диаметp пневмоудаpника 115.0 (мм) Диаметp коронки 130.0 (мм) Частота удаpов 1000.0 (удар/мин) Удаpная мощность 4.0 (кВт) Объемный pасход сжатого воздуха 9.0 (куб. м/мин) Номинальное давление сжатого воздуха 0.7 (МПа) Масса, без коpонки 33.0 (кг) Гарантийный срок 12 (мес) Specification

p110 Hammer

Параметр Значение Диаметр коронки, мм 110 Давление воздуха, МПа 0,5 — 0,7 Ударная мощность, кВт 3,2 Частота ударов, 1/с 25 Расход воздуха, м^3/мин 7,0 Диаметр пневмоударника, мм 99 Длина пневмоударника, мм 615 Масса пневмоударника, кг 22,1

Length (without bit)	Weight (without bit)	External Diameter	Bit Shank	Hole range	Impact power
615mm 675mm	22 KG 33 KG	φ65mm φ78mm	P110 P130	φ110mm φ130mm	3.2KW4.0KW
Working Pressure	0.5-0.7Mpa	Impact frequency	1/s 25

Details Images Packing & Delivery Company Profile Changsha DTH Drill Construction Machinery Co., Ltd has more than 20 years of drilling tools industry since 1996.Its predecessor was the designated processing workplace of down-the-hole drilling tools of Changsha Institute of Mining Research. It is the Institute of Metal Research of the Chinese Academy of Sciences, the National Institute of Materials Research (NIMS) of Japan, and the partner of University of Queensland, Australia, the Swiss Federal Institute of Technology (EMPA). FAQ 1. Are you exact manufacturer or just trading company?
We are both,we have our own factory. And also have many long-relationship factories.

2.What is your minimum order quantity?
Our MOQ are 1 pcs or 1 complete set, the price may rely on the order quantity. We are welcome your sample order to testing our quality.

3. Can you accept OEM & ODM?
Yes, both of them are acceptable,.Please tell us your requirements or design drawings kindly.
As we have our own R&D team and the team leader is Dr.Zhao mingchun who has been always
in the material research and drawing design of drilling tools for 25 years.And he had designed
the world’s biggest top hammer bit and DTH hammer bit, highly praised by the users.

4. How about Packing
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation.
Also, we can customize package according to your special requests.

5. How about the delivery time?
It depends, generally it takes about 15-25 days. If have stocks, Usually only 5-10 days if in stock.

6. Can I have a visit to your factory before the order?
Sure, welcome, kindly contact us for address details and time schedule.
