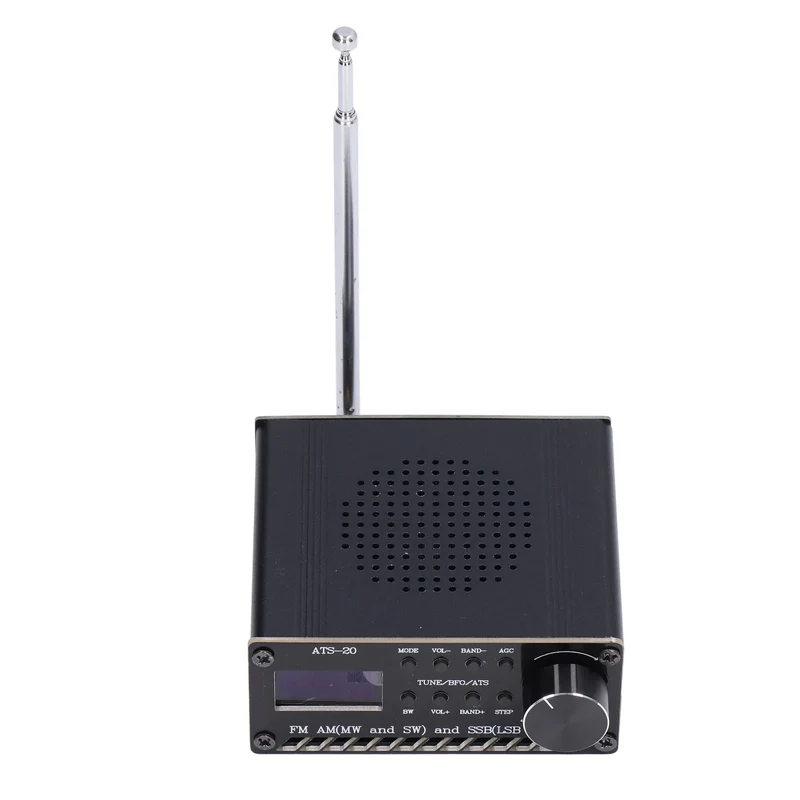

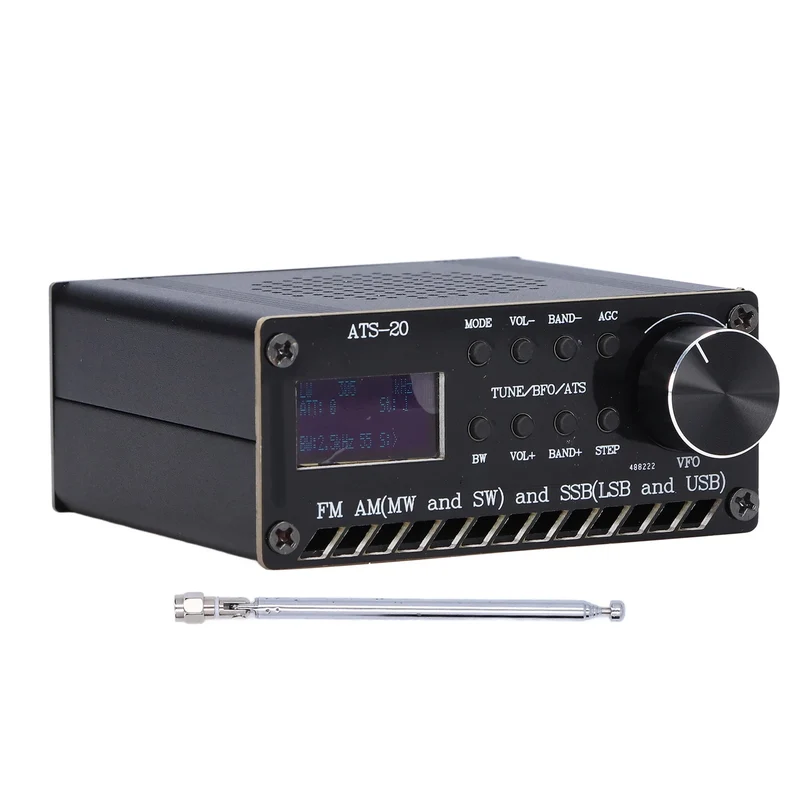

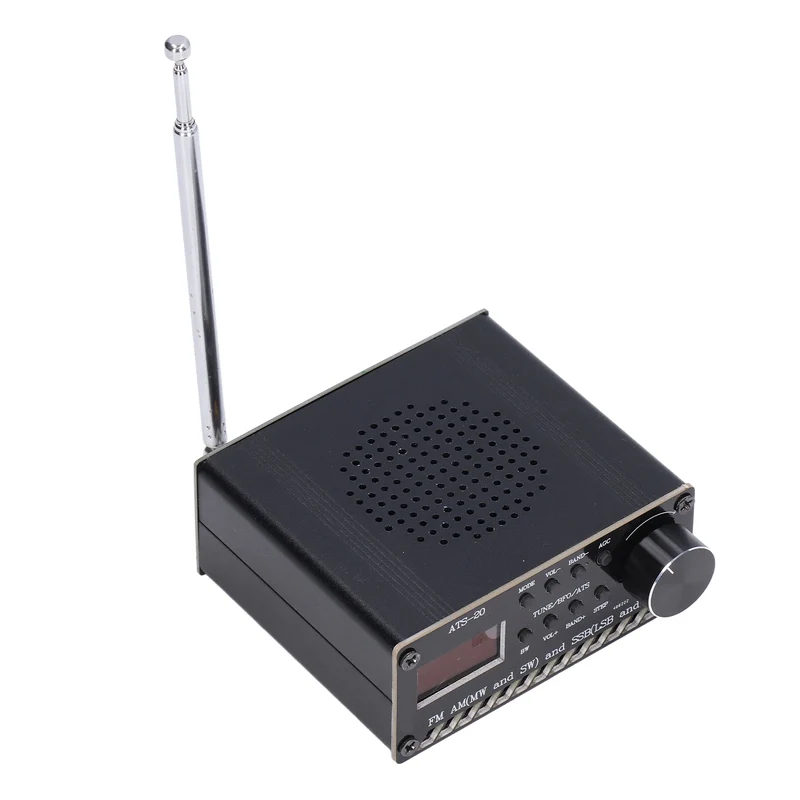

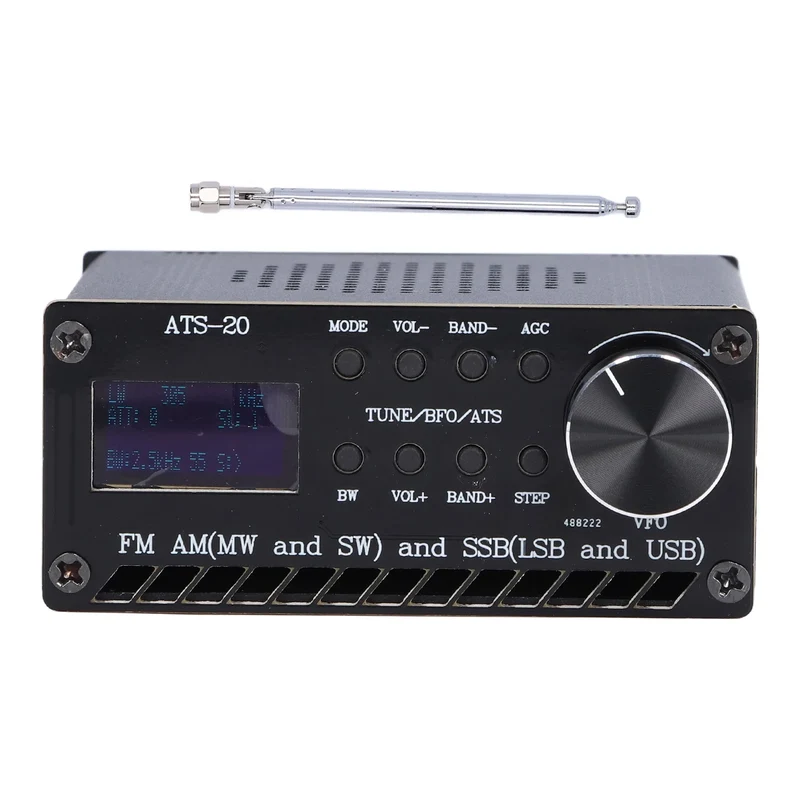

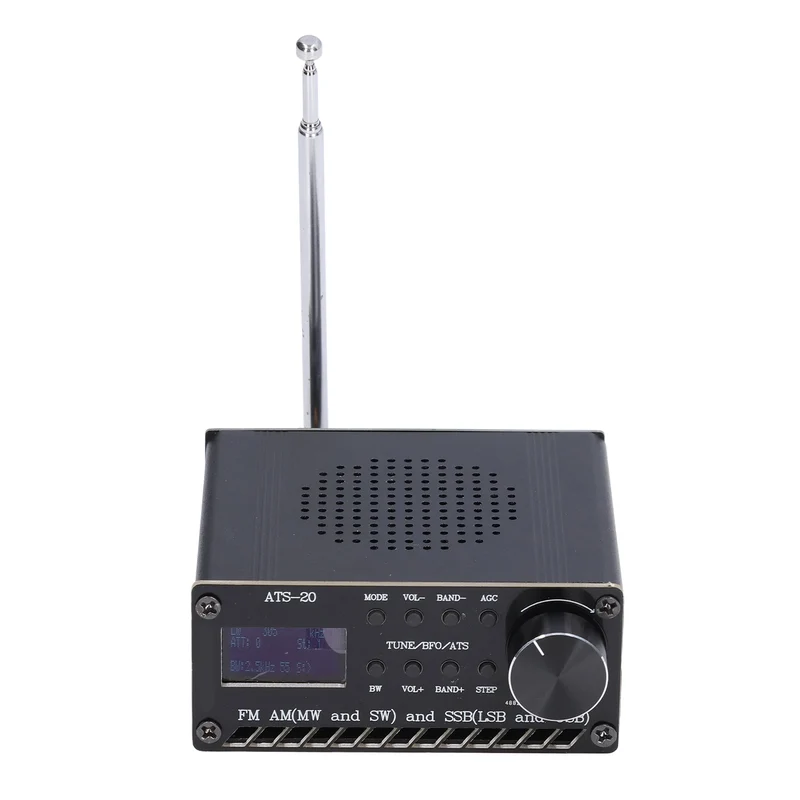

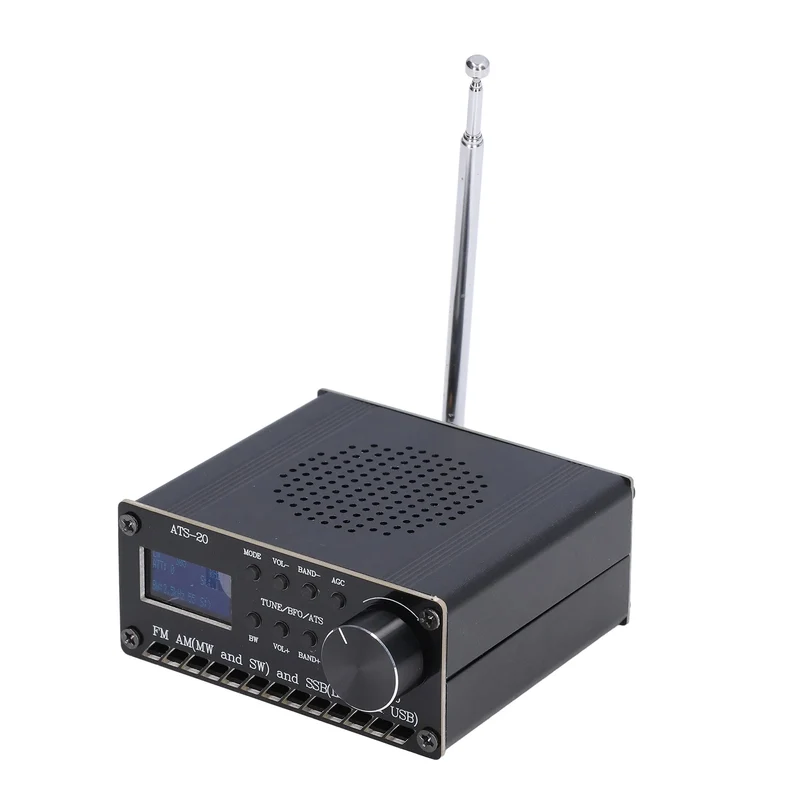

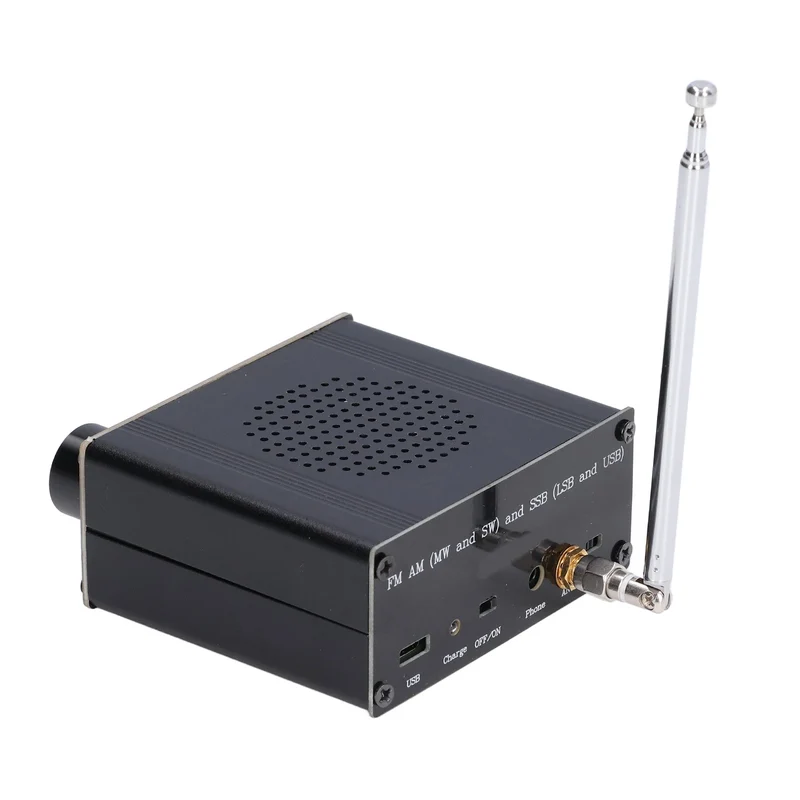

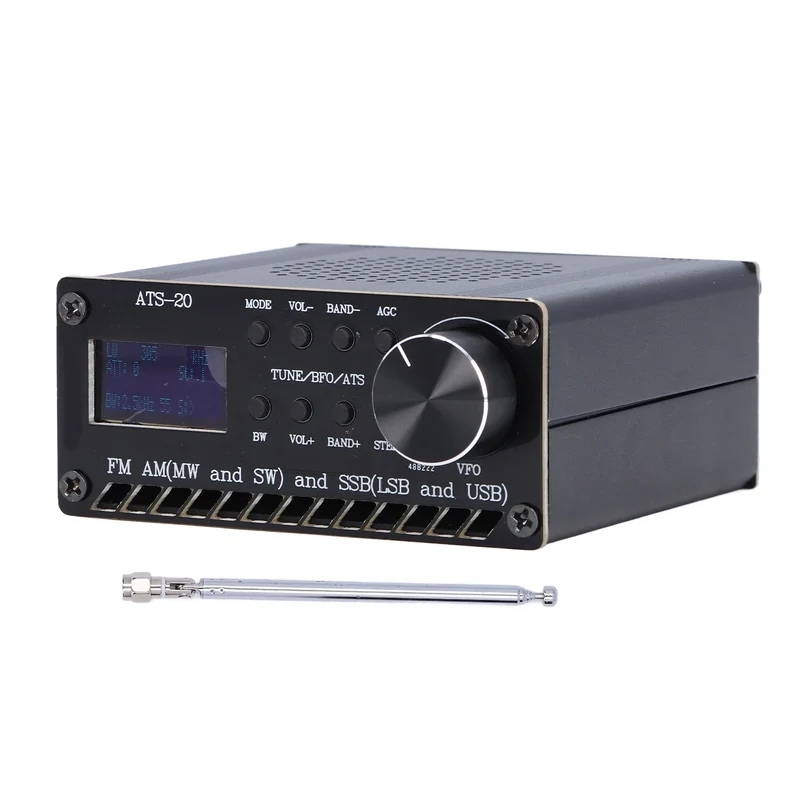

ATS-20 Radio Full Band Receiver DSP FM AM SSB Si4732 Portable Rechargeable with Antenna

Radio Full Band Receiver DSP FM AM SSB Si4732 Portable Rechargeable with Antenna

Feature:

1. Full Band Radio: Supports FM and AM (MW and SW), and SSB (LSB and USB) as well, this radio is very reliable.
2. Practical Using: Comes with 0.5, 1, 1.2, 2.2, 3 and 4khz audio bandwidth filters, works with good stability.

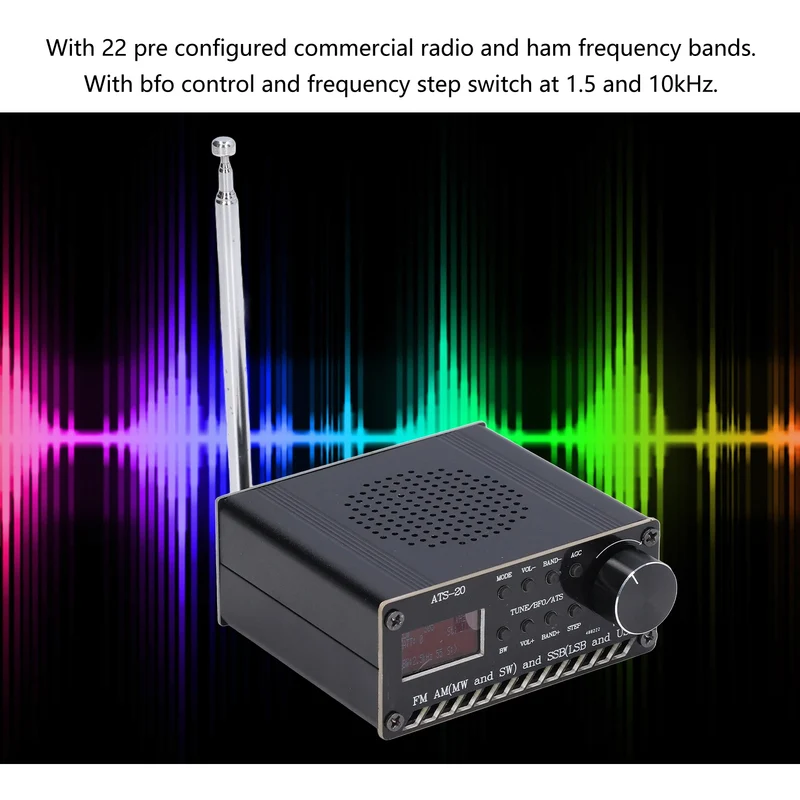

3. Good Presetting: The full band radio also has 22 pre configured commercial radio and ham frequency bands.
4. Better Control: With bfo control and frequency step switch at 1.5 and 10kHz, the operation is very simple.
5. Other Function: Power down storage function simplifies the working, while the USB port enables quick charging.

Specification:

Item Type: Radio
Battery: Use 3.6v lithium battery 600mAH (shipped with built in battery).

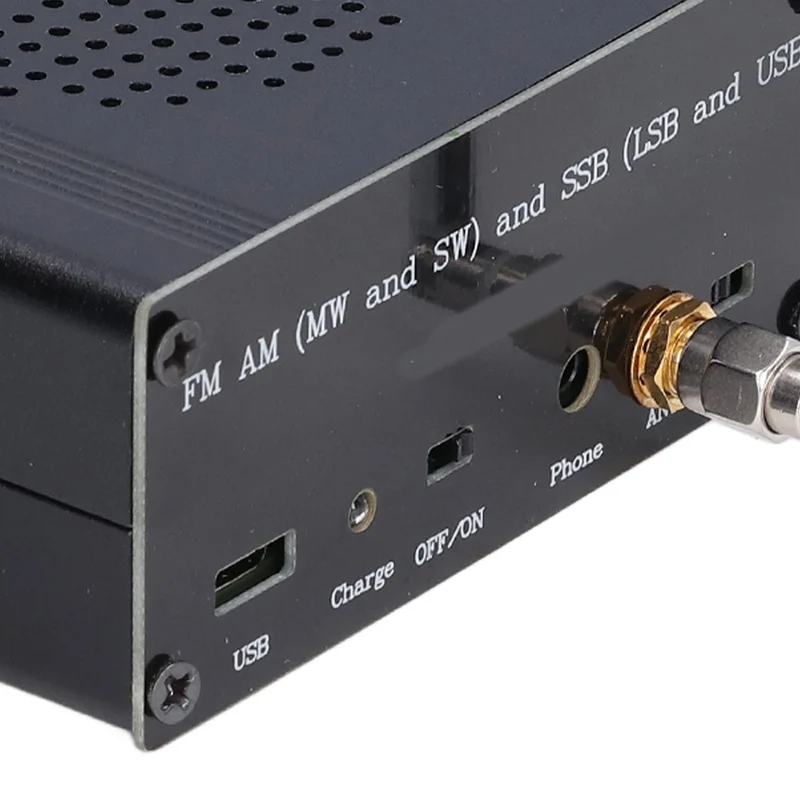

Charging: Type C USB charging.
Audio Output: Supports audio output, supports 3.5mm earphone.
Speaker: Support 8 ohm speaker 1w.
Antenna Interface: Use SMA antenna interface.
Function: Upgrade power down storage function.

How to Use:

1. {FM_BAND_TYPE, 8400, 10800,9050, 10}, 2. {LW_BAND_TYPE, 100, 510, 300, 1}, 3. {MW_BAND_TYPE, 520, 1720, 810, 10}, 4. {SW_BAND_TYPE, 1800, 3500, 1900, 1}, // 160 meters 5. {SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters 6. {SW_BAND_TYPE, 4500, 5500, 4850, 5}, 7. {SW_BAND_TYPE, 5600, 6300, 6000, 5}, 8. {SW_BAND_TYPE, 6800, 7800, 7200, 5}, // 40 meters 9. {SW_BAND_TYPE, 9200, 10000, 9600, 5}, 10. {SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters 11. {SW_BAND_TYPE, 11200, 12500, 11940, 5}, 12. {SW_BAND_TYPE, 13400, 13900, 13600, 5}, 13. {SW_BAND_TYPE, 14000, 14500, 14200, 1}, // 20 meters 14. {SW_BAND_TYPE, 15000, 15900, 15300, 5}, 15. {SW_BAND_TYPE, 17200, 17900, 17600, 5}, 16. {SW_BAND_TYPE, 18000, 18300, 18100, 1},  // 17 meters 17. {SW_BAND_TYPE, 21000, 21900, 21200, 1},  // 15 mters 18. {SW_BAND_TYPE, 24890, 26200, 24940, 1},  // 12 meters 19. {SW_BAND_TYPE, 26200, 27900, 27500, 1},  // CB band (11 meters) 20. {SW_BAND_TYPE, 28000, 30000, 28400, 1}}; // 10 meters

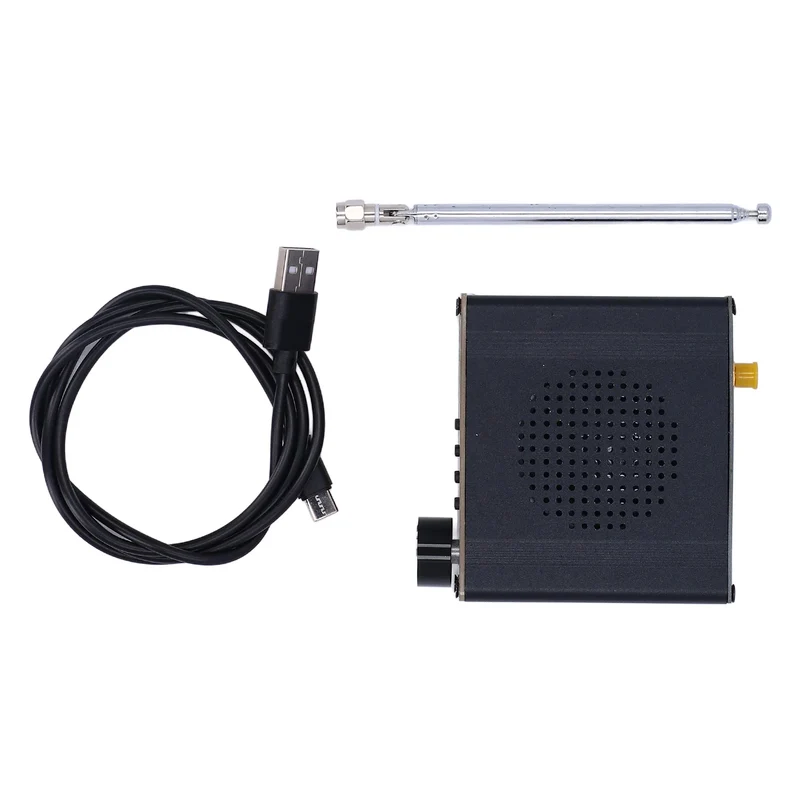

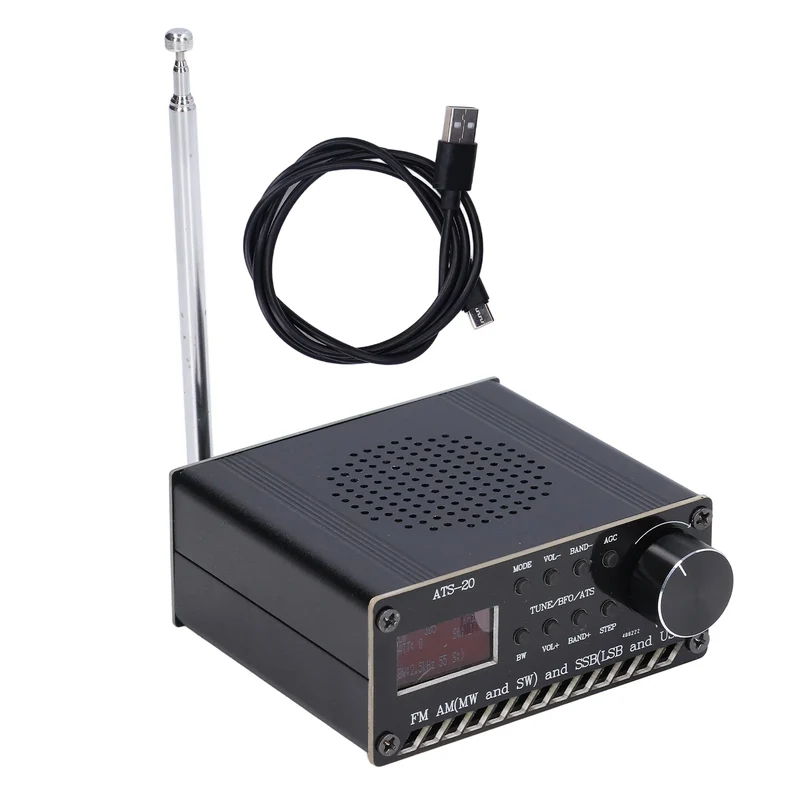

Package List:

1 x Radio

1 x USB Data Cable

1 x Antenna

Note:

PCB retains the si4735 package, users can replace the chip by themselves, and the software is compatible.
