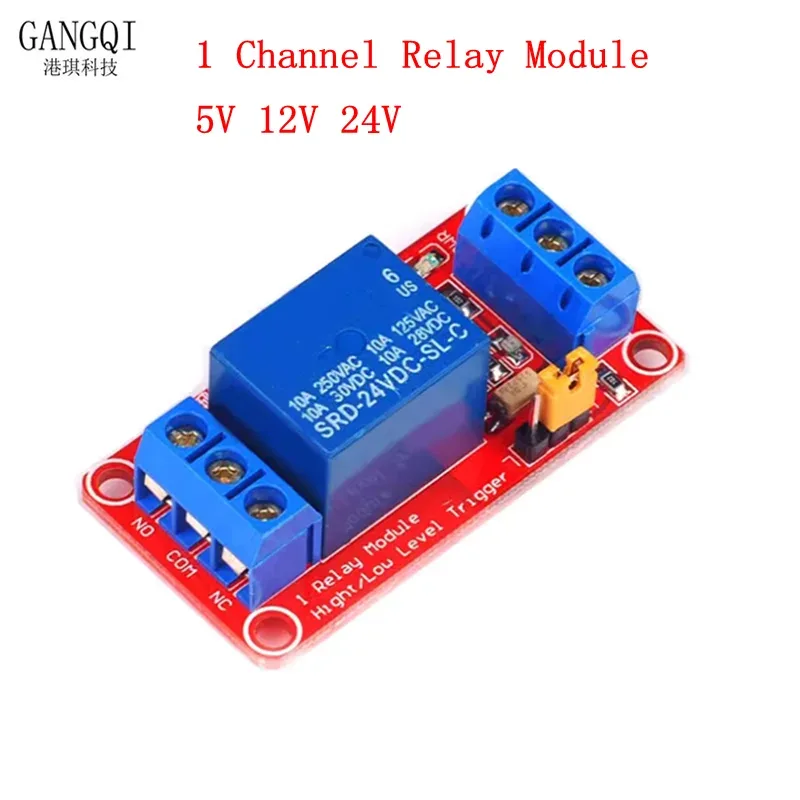

5V 12V 24V One 1 Channel Relay Module Board Shield with optocoupler Support High and Low Level Trigger

SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Model Number: 1 Channel Relay Module

Origin: Mainland China

is_customized: Yes

1 Channel Relay Module with Optocoupler

Description:

100% brand new and high quality

1-Channel relay module, with photoelectric isolation

The module can be high or low by a jumper setting trigger

With power and relay action indicator

The module Operating voltage 5V /12V/24V

The module uses genuine quality relay, normally open interfaces

Maximum load: AC 250V/10A, DC 30V/10A

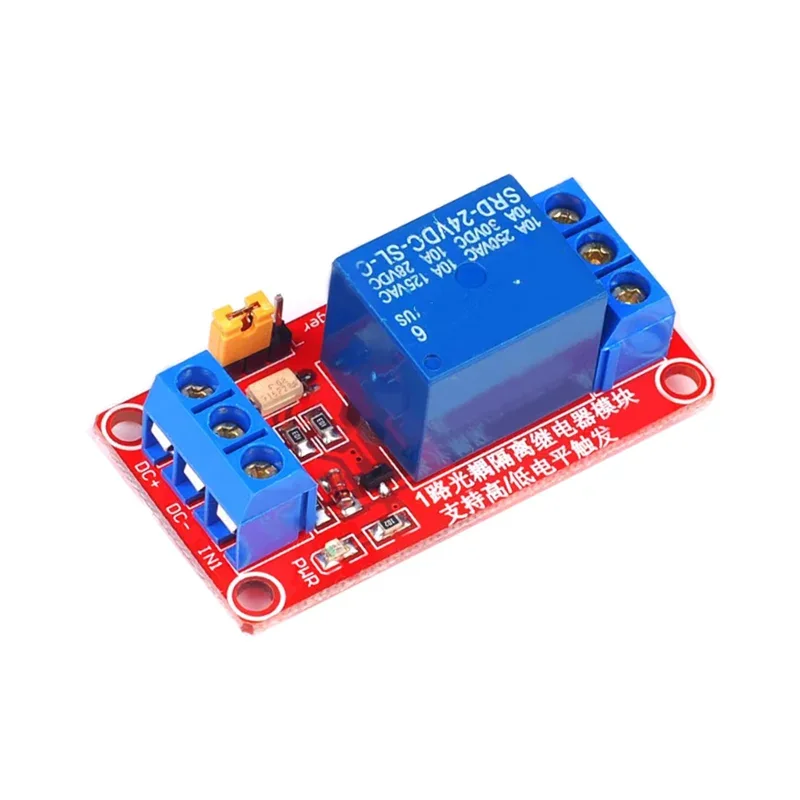

Module interface:

DC+: positive power supply (VCC)(5V)

DC-: negative power supply (GND)

IN: The control end, the driving current should be more than 4mA

COM: The control of loop of earth wire
