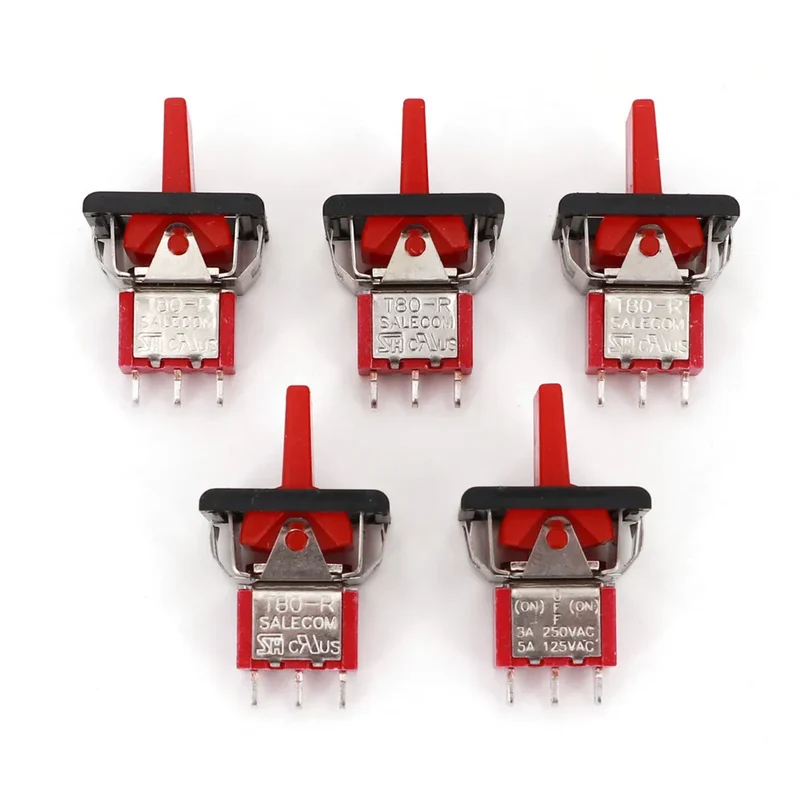

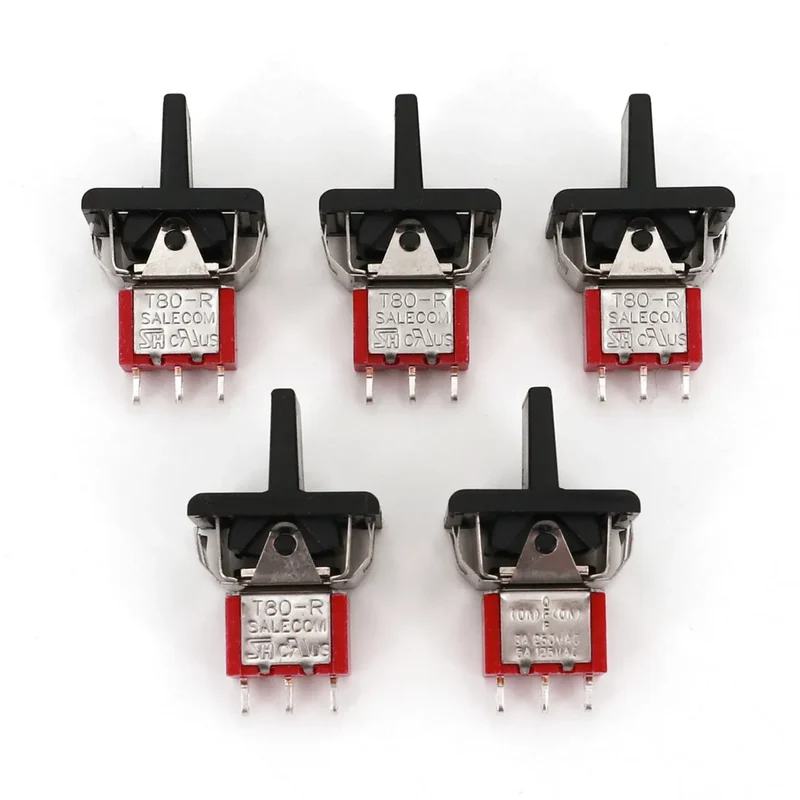

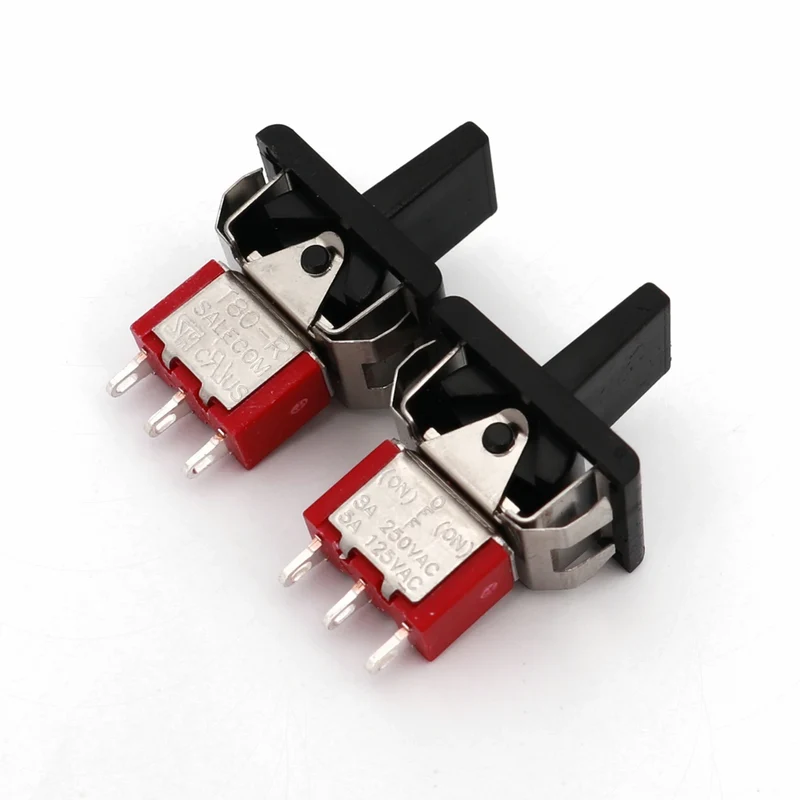

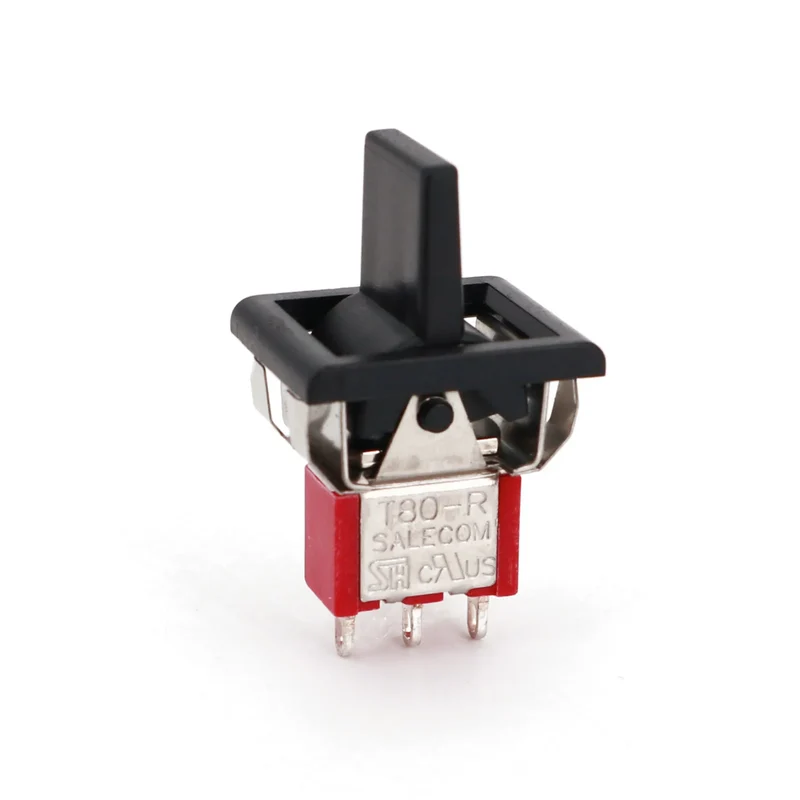

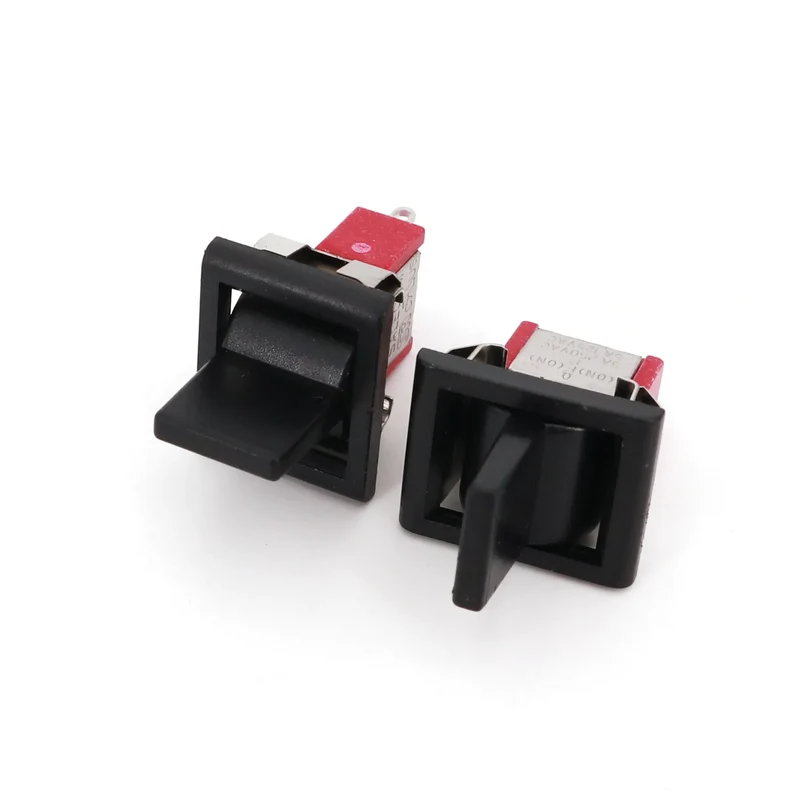

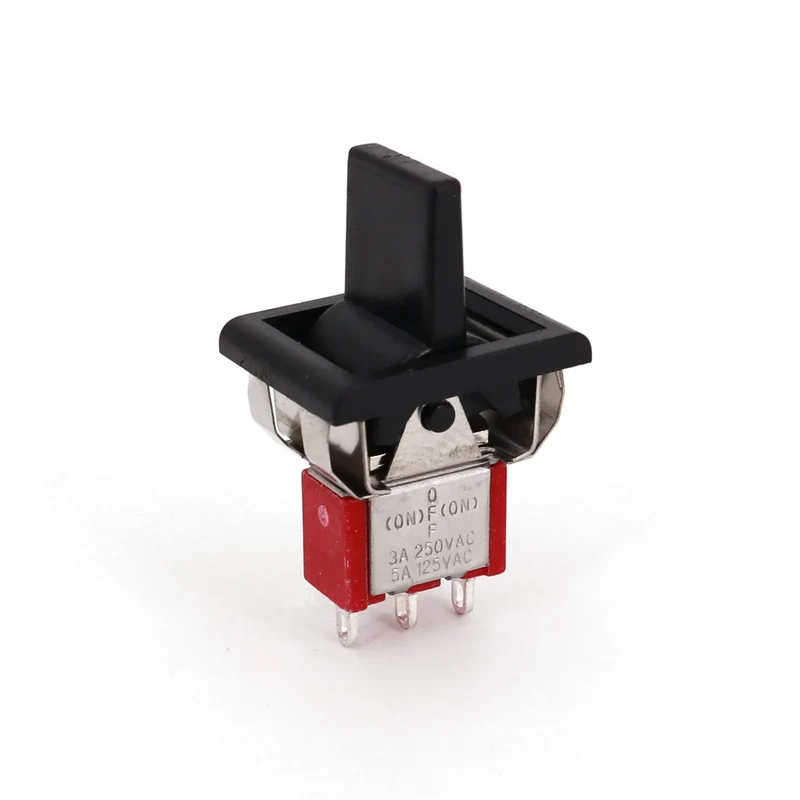

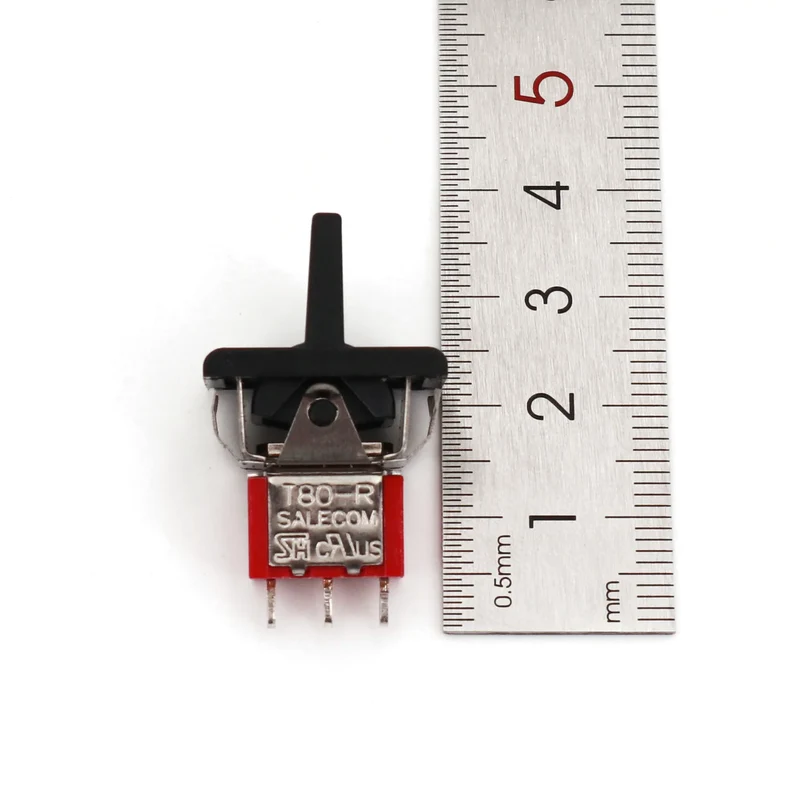

5Pcs SH T80-R Series R8016A-P14 3Pin Momentary MOM-OFF-MOM Self-Return SPDT Mini Rocker and Paddle Switch

SPECIFICATIONS

Brand Name: NONE

Certification: UL,RoHS

Current: 5A

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Features: Momentary

High-concerned chemical: None

Item Type: SWITCHES

Material: Plastic

Model Number: R8016A-P14

Origin: Mainland China

Switch Type: Toggle Switch

Warranty: 1 Year

Feature

Model:R8016A-P14

Switch Action: Momentary (Self-Return)

When you release,the actuator will return to the middle position.

Function: MOM-OFF-MOM

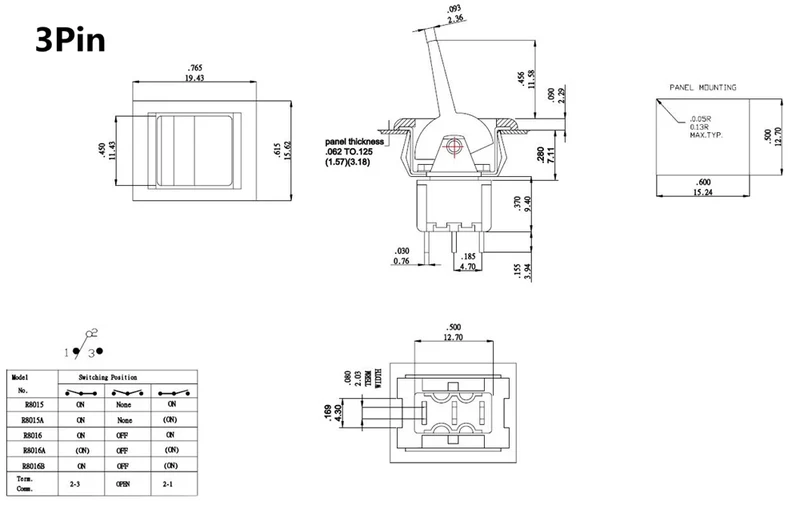

Panel Opening (L*W): 15.3x12.7mm

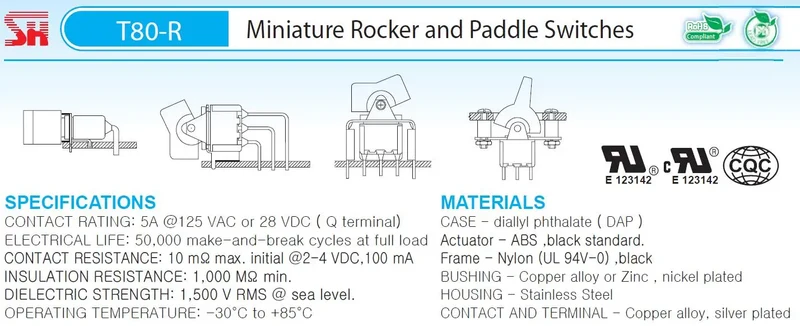

Contact Rating: 5A /125 VAC, 3A/250VAC

Electrical Life: 50,000 make and break cycles at full load

Insulation Resistance: 1,000 MΩ min.

Operating Temperature: -30°C to 85°C

Weight:5.2g

Package Included

1 Lot = 5Pcs
