5.0 inch LCD display 800*480 40pin RGB TTL 5 inch high brightness screen TFT ST7262

5.0 inch LCD display module

• Model Name : D500N7009V1

• Screen size : .5 inch

• Resolution : 800*480

• Outline Size (mm): 120.7(W)*75.8(H)*2.83(T) (exclude FPC)

• Active area(mm) :108(W)*64.8(H)

• LCD Interface Type : 24 bit RGB mode

• LCD Driver : ST7262

• Brightness : 800  Cd/m²

• Display type : IPS

• Operation temperature : -20℃～+70℃

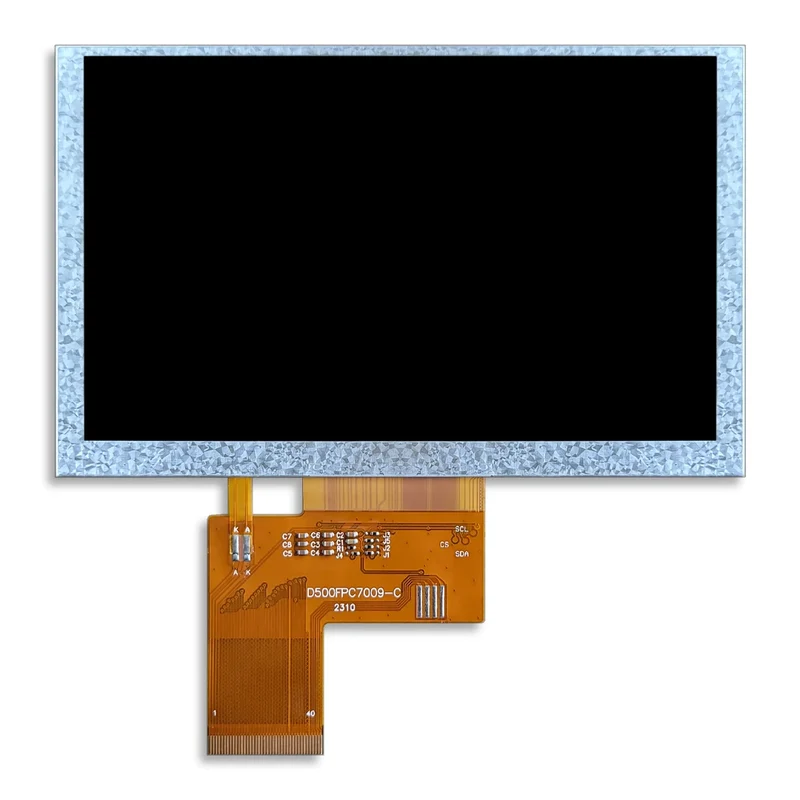

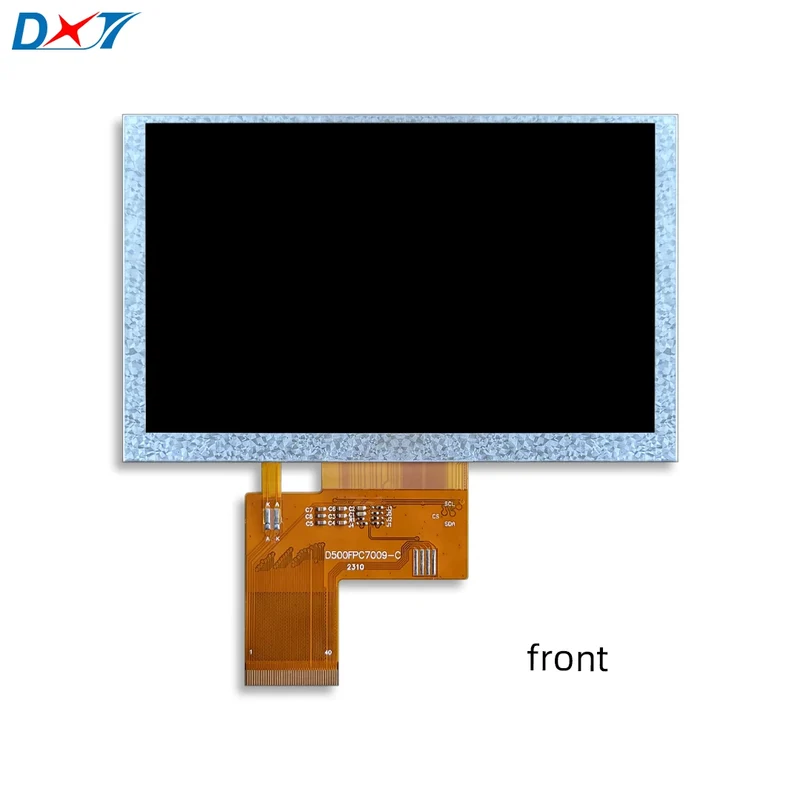

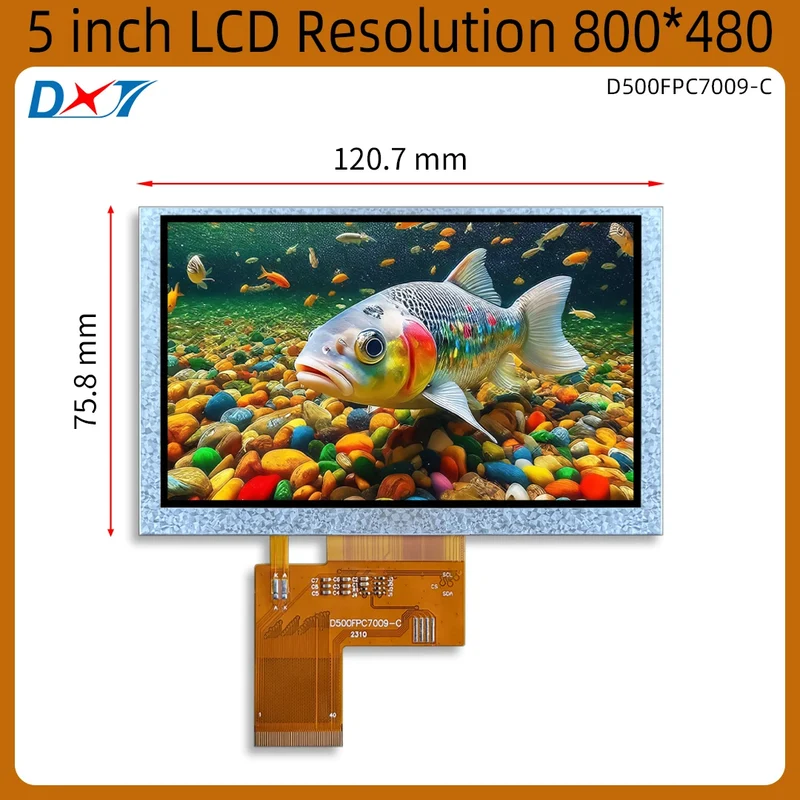

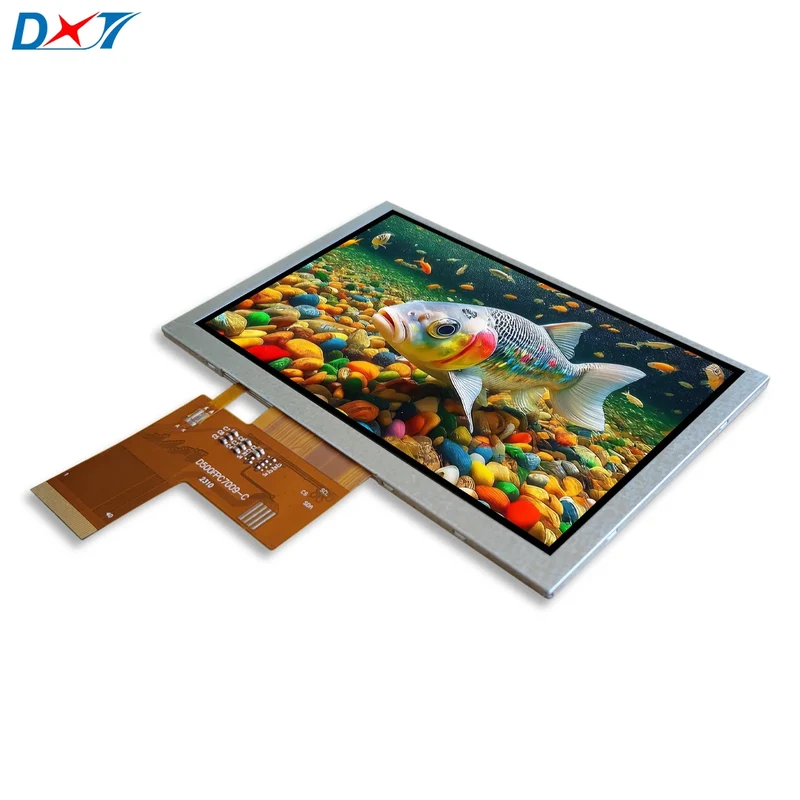

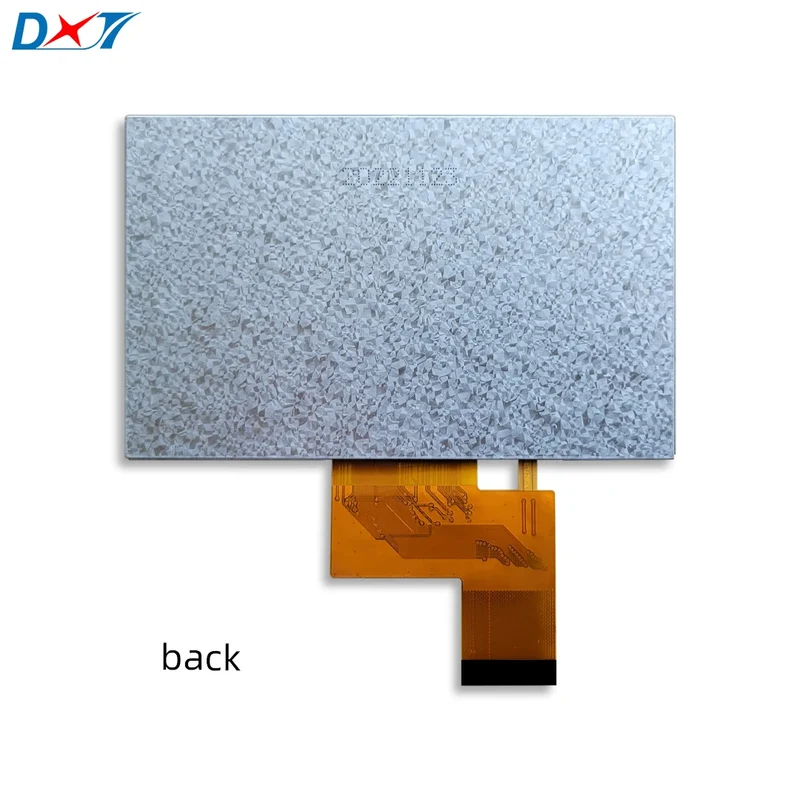

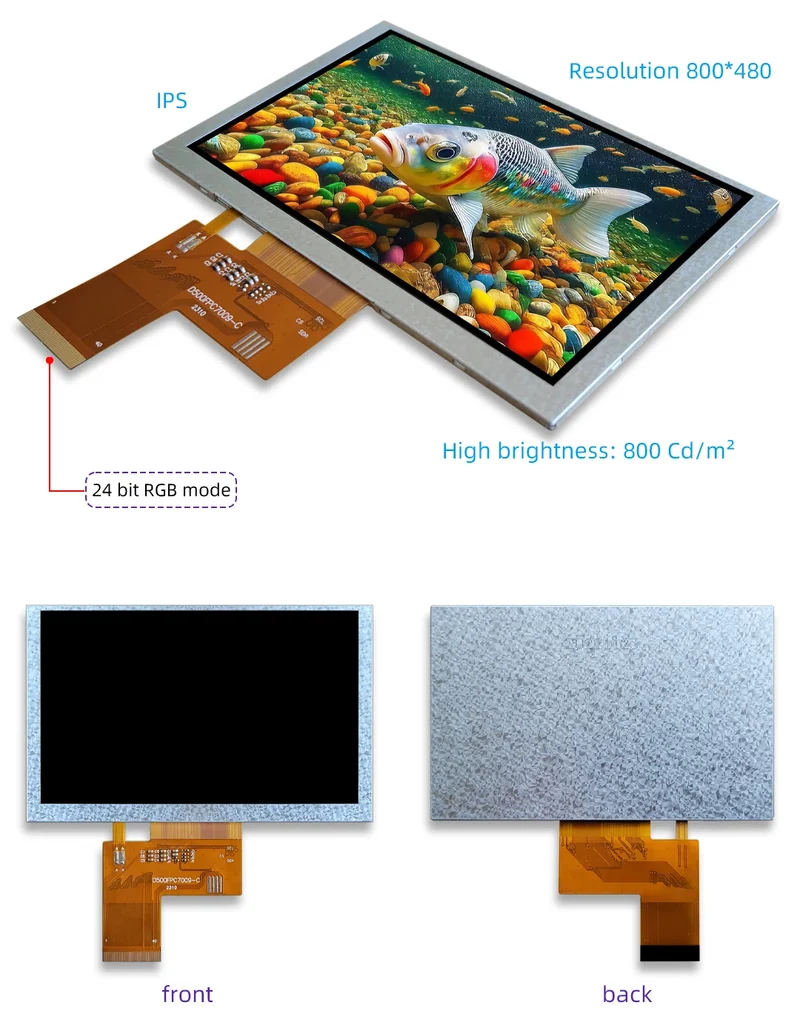

Product Image:

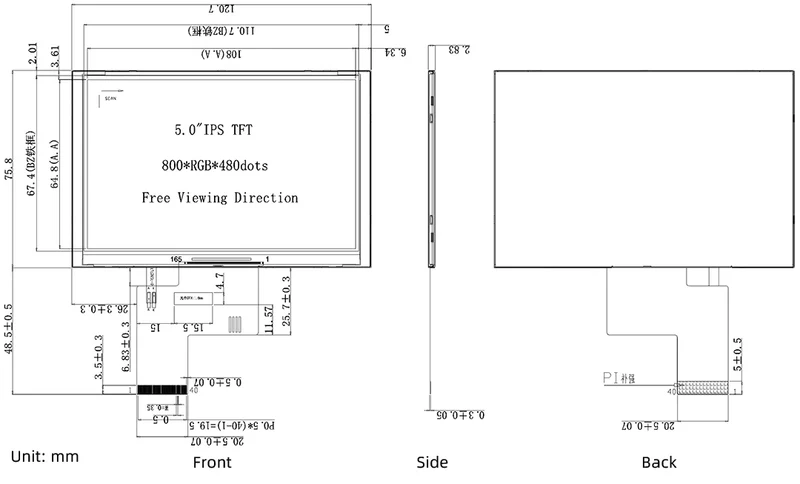

Mechanical Dimension:

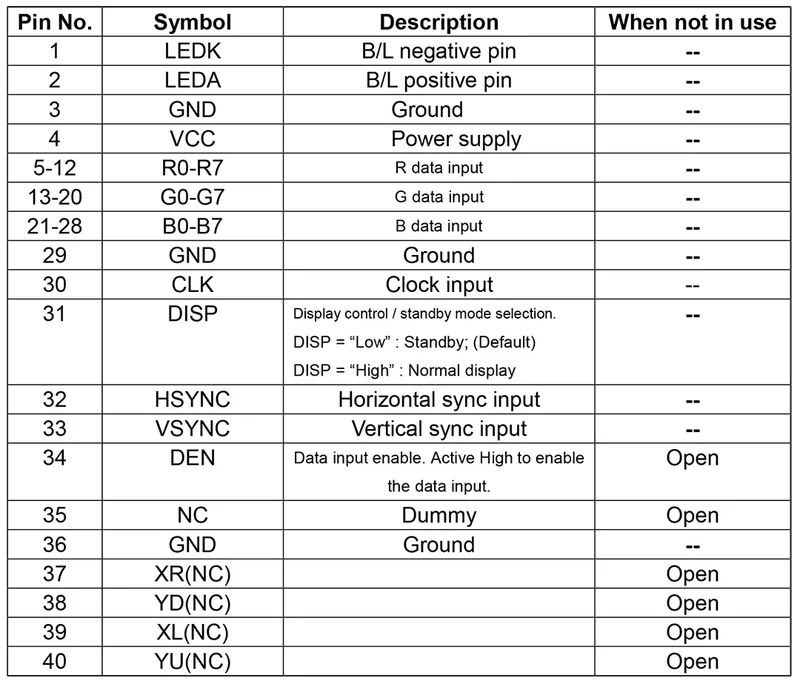

Module Function Description:

FAQ:

1) Are you a middleman?

We are the source manufacturer, not a middleman. Welcome to visit our factory.

2) How can I customize your products according to my own ideas?

Please tell us your customization ideas or drawing references.

Our team will conduct design evaluation.

Make samples, test reliability, and then mass produce.

We can also help you customize the silk screen logo, product number, product small label, etc. on the product for free.

3) re there discounts for bulk orders?

Yes, please consult our sales staff for details.

4) Contact us (get product data sheet)

E-mail: [email protected]
