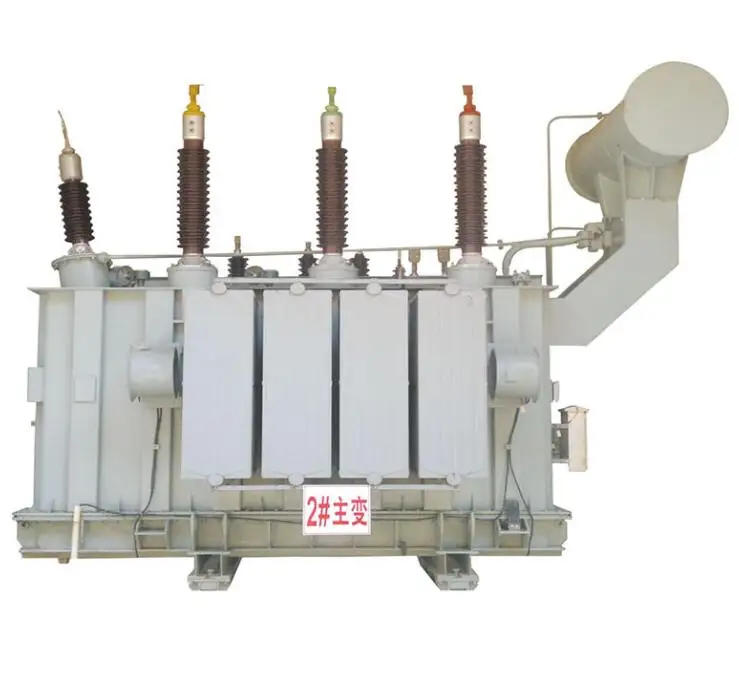

44kv Oil Immersed Transformer 5000kva Power Transformer Price

SPECIFICATIONS

Application: power,Industrial Power Supplies

Brand Name: Dalin

Certification: ISO9001

Coil Number: 2/3

Coil Structure: toroidal

Feature: High Efficiency

Frequency: 60 Hz,50 Hz,60Hz

Input Voltage: 35kv 34.5kv 33kv 24.94kv 13.8kv 13.2kv 12.47kv 11

Model Number: S9/10/11

Output Voltage: 440 V,380 V,480 V

Phase: Three

Place of Origin: Jiangsu, China

Primary voltage: 44Kv

Rated capacity: 5 mva

Secondary voltage: 6.6/11Kv or other

Standard: IEEE/ANSI

Type: Oil-type

Warranty: 2 Years

Our Advantages Beijing DAELIM provide the most advanced technology to meet the needs of society, economy and the environment for transmission and distribution of electrical energy. To provide our customers with flexibility and agility, they inspire us to make more breakthroughs.DAELIM have a team willing to provide the best solution to connect with you to improve your business. As a team, we have brought together the best smart technology to continuously improve our products and services to benefit those who trust us.
Daelim's transformers have been exported to America, Canada, Mexico, Australia, Chile, Ecuador, Venezuela, Honduras, El Salvador, Panama and other countries. DAELIM have helped many international customers to successfully obtain transformer projects and continue to carry out in-depth cooperation.
DAELIM have 20 years of transformer export experience, moreover DAELIM have after-sales installation teams overseas, so if you also have transformer business, we can develop together. Project in Austrilia Project in Ecuador Project in Canada Pad mounted transformer in Canada Transformer in South Africa Dry Type Transformer in Kazakhstan 69kv transformer in Ecuador 44kv transformer in Canada 35kv transformer to Venezuela Product Description Copper windings - copper capacity: from 150 TO 5000 KVAAluminum - aluminum windings capacities: from 750 to 2500 kVA. Primary voltage: 4160, 6600, 13200, 13800, 23000, 33000, 24940, 34500 and 44000 V. Secondary voltage: 220, 415, 440, 460, 480, 23000, 4160 V.If you require a voltage other than these, click here consult our advisors.
* Standard connections: Delta-Star, Star-Delta.
* Special connections: Star-Star and Zig-Zag.
* Temperature rise of the windings: 55º and 65 ºC (temperature 30 ºC average environment, 40 ºC maximum).
* Column-type circular core cut at 45º with interleaved stacking(step lap) made of high grain oriented silicon steel
permeability.
* High and low voltage circular copper and aluminum coils manufactured with hearth, copper foil, aluminum and magnet wire.
* High voltage shunt changer, without load with 5 or 6 positions.
* Insulating liquid, inhibited or uninhibited mineral oil free of PCBs or other high flash point, low freezing point type of
liquid such as: envirotemp (FR3), silicone, betafluid.
* Tank made of shot-blasted steel plate, painted with primer and finish, epoxy or polyurethane.

Mini Substation transformer
Voltage level	Capacity	A(inch)	B(inch)	C(inch)	Weight(kg)
15kv/ 25kv/ 34.5kv	500kva	56	66	60	2367
		750kva	60	74	65	2828
	15kv	1000kva	60	84	75	3650
		1250kva	60	96	75	4100
		1500kva	64	96	75	4500
		1750kva	64	100	80	4800
		2000kva	70	100	80	5500
		2500kva	74	110	90	5900
		3000kva	80	115	95	6400

Through years of international engineering experience, our factory is capable of producing transformers meeting various

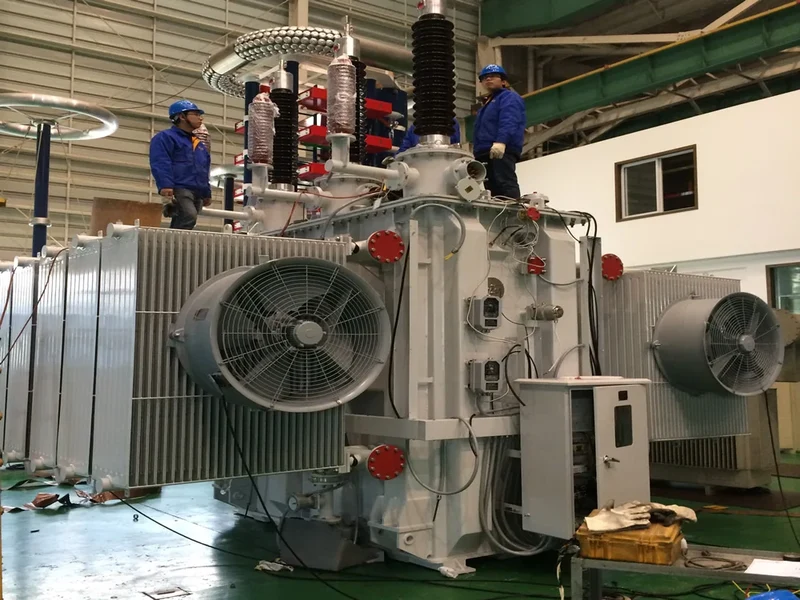

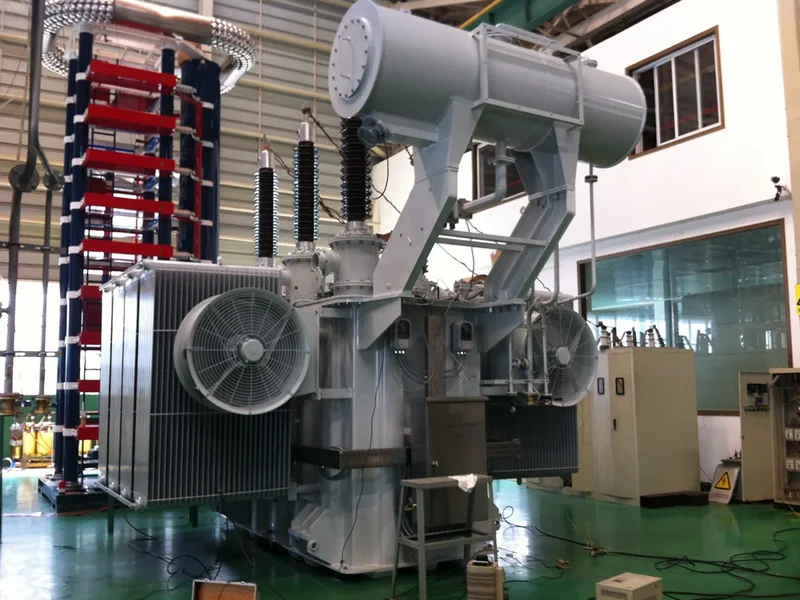

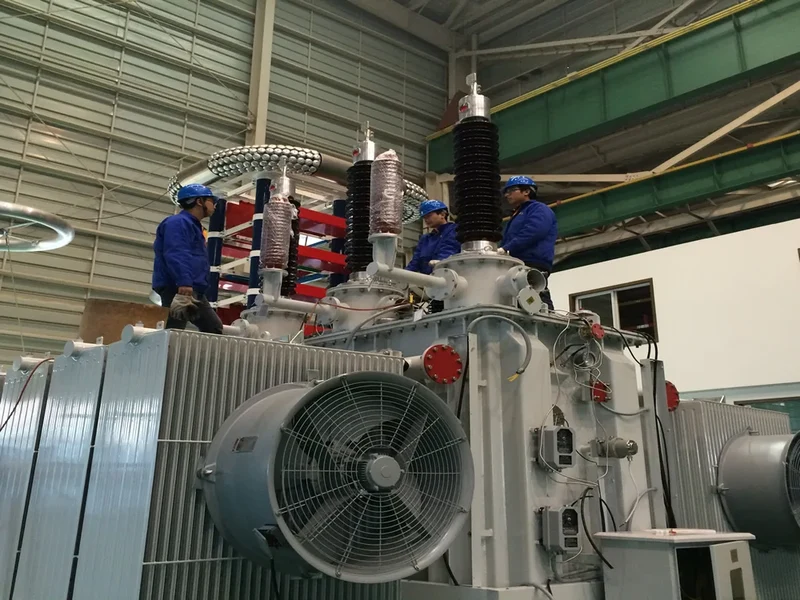

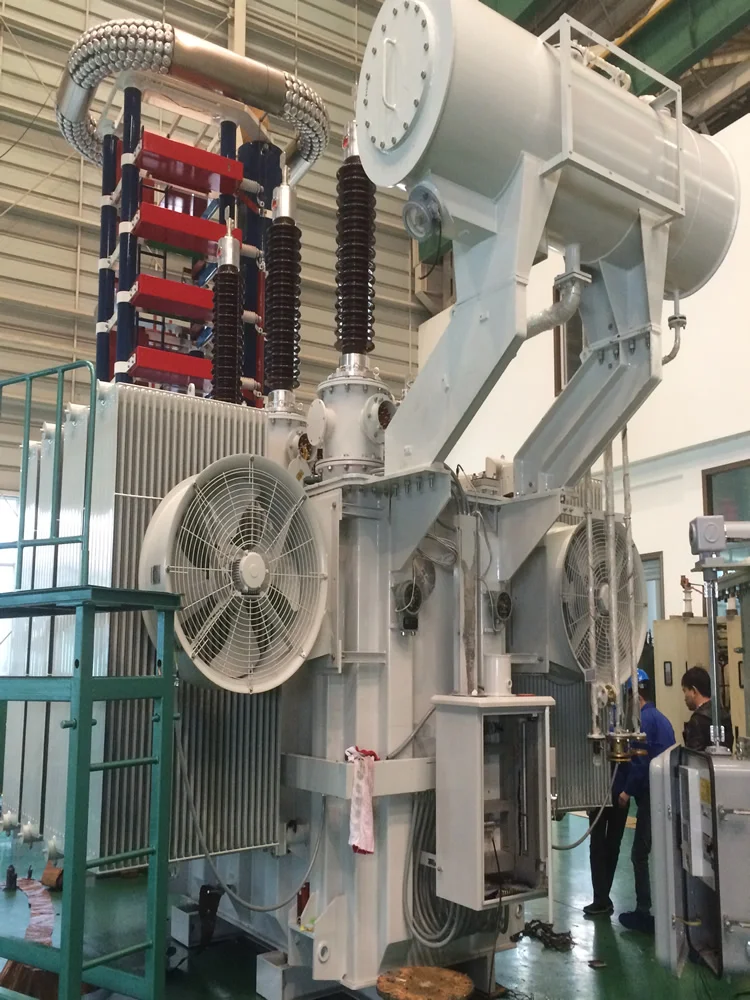

international standards, such as IEC, IEEE, ANSI, CSA, AS Click here to get the quotation! Transformer Test Three-phase substations are standardized under the norms of ISO 9001: 2015 quality, allowing us to have greater control over the
production where the finished and tested product will be your satisfaction. 1. Ratio, polarity and phase relation tests 2.Windingresistance measurement tests
3. Insulation power factor 4. Full wave and reduced wave impulse test
5. Applied and Induced potential tests 6. No-Load losses at rated current
7. Total losses at rated current 8. Percent impedance at rated current
9. DGA test 10. Leak test 11.Control abinet test Customer visit Project Display Dalin's three phase substation transformers have been used in Canada, Australia, Venezuela, Mongolia and other countries

44kv 5mva substation transformer in Canada

For this three 5mva small substation transformer, it designed and producted by CSA, ANSI/IEEE standard. DAELIM actively assist
with customers to complete the site test work, and all the data were consistent with the factory test data.Three small substation
transformers were successfully put into operation.

Substation transfomer in Australia

DAELIM's 1000kva, 1500kva, 3000kva substation transformers are exported to Australia, which are designed and produced in strict
accordance with Australian standards. Sales Record Recommend Products
