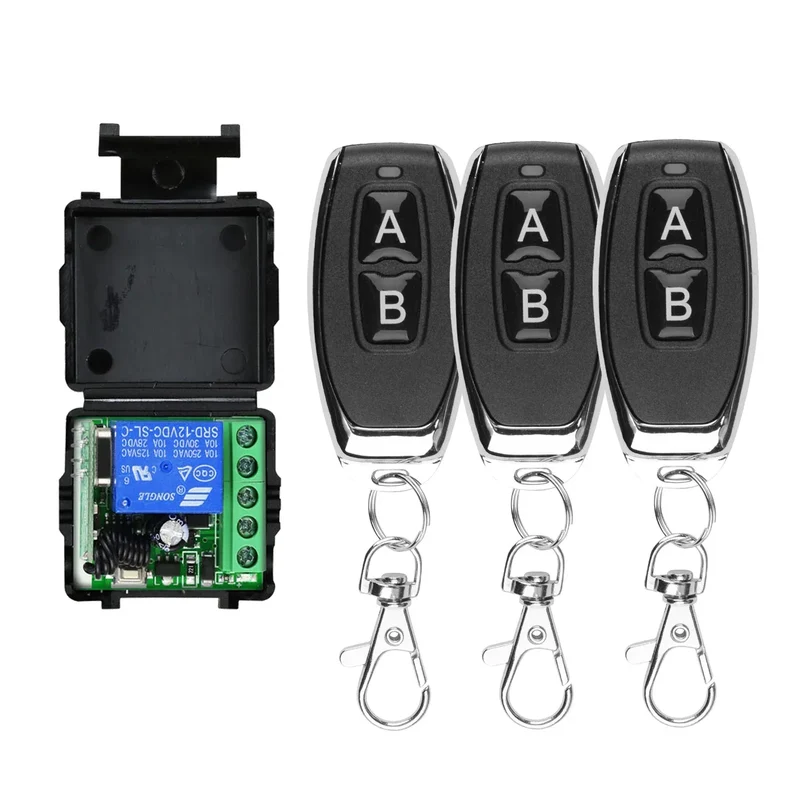

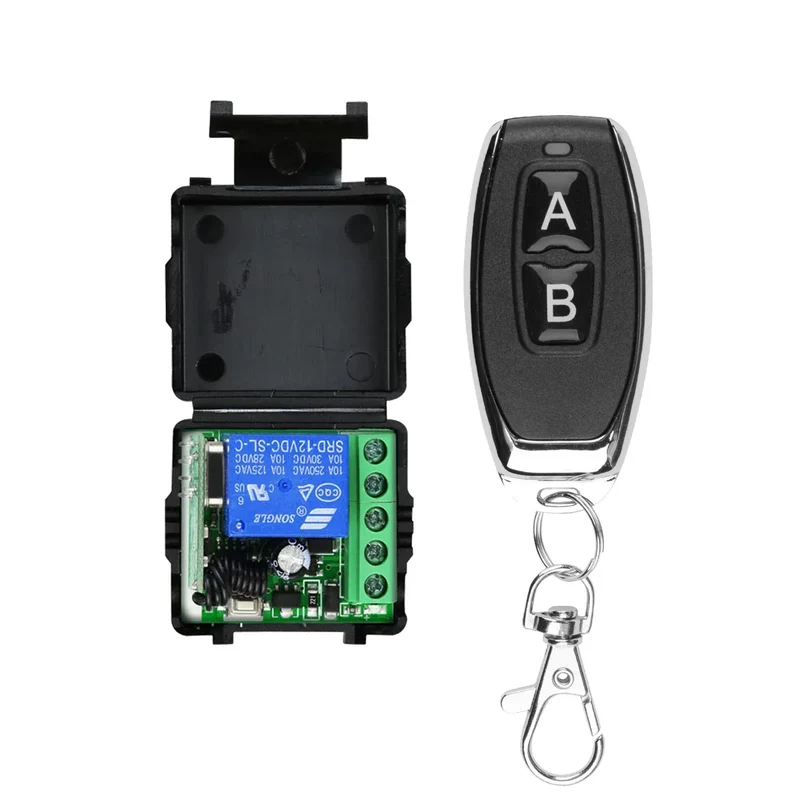

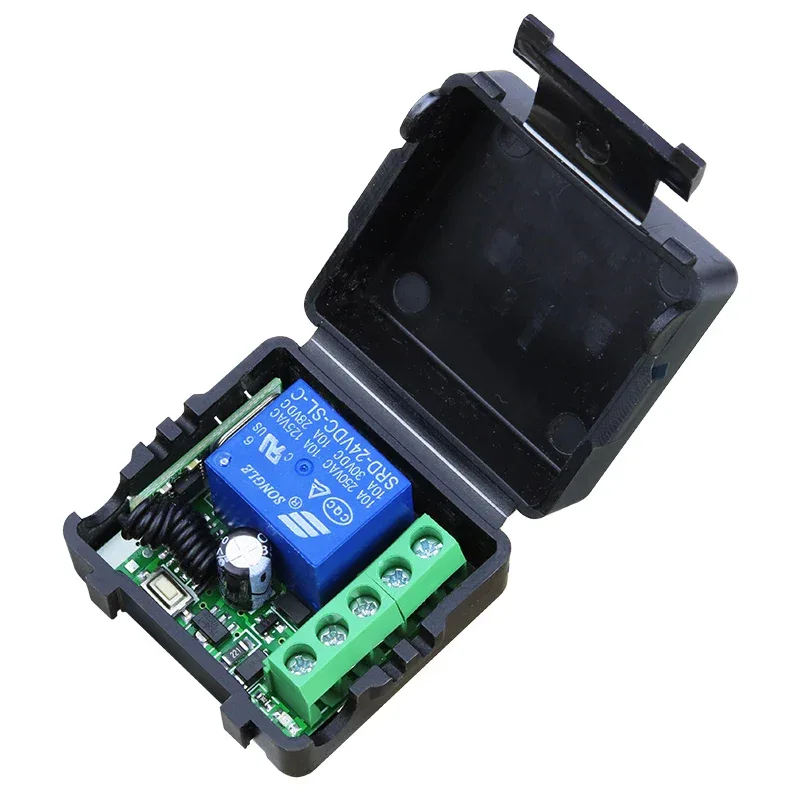

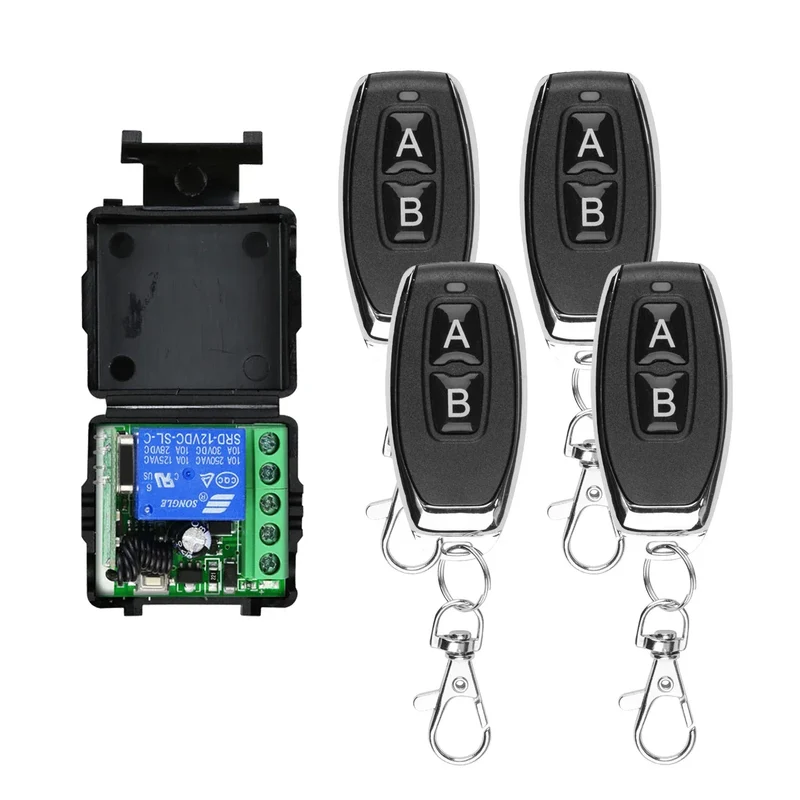

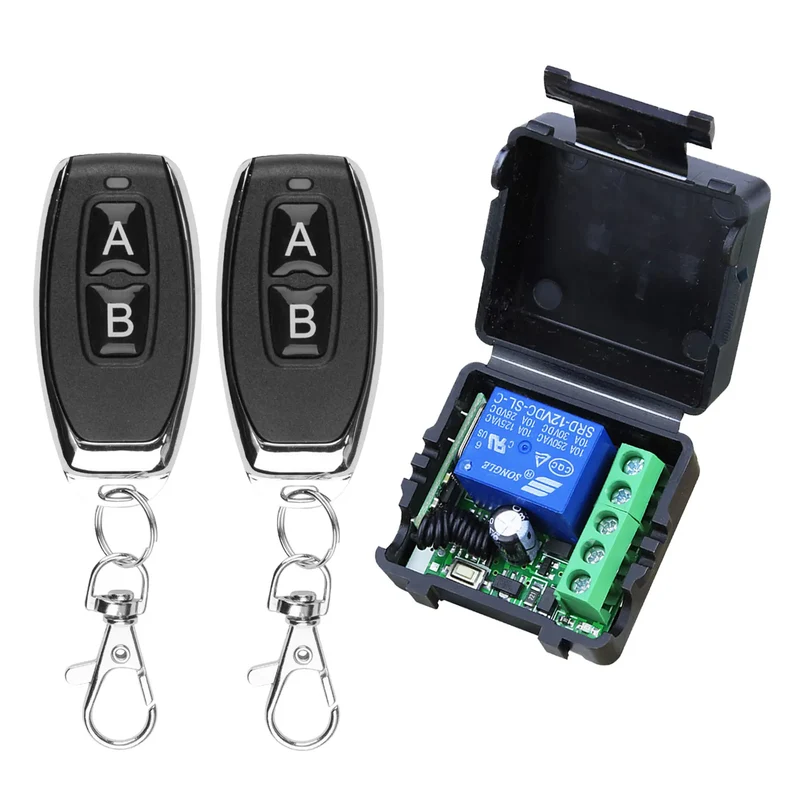

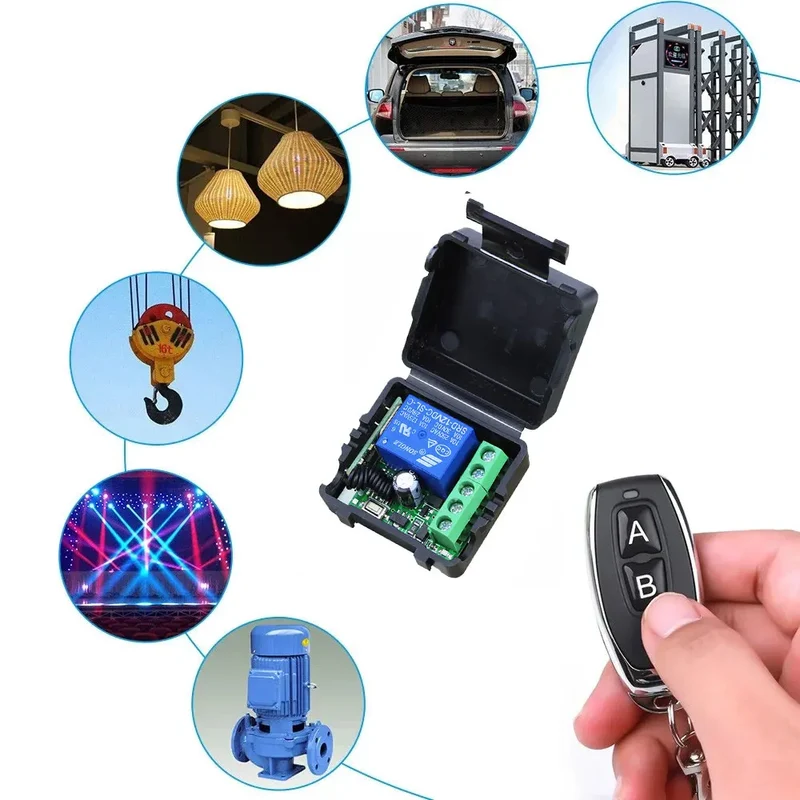

433MHz Wireless DC 12V Remote Control Switch 1CH RF 10A Relay Receiver and 2CH Transmitter For Door Electromagnetic Lock DIY

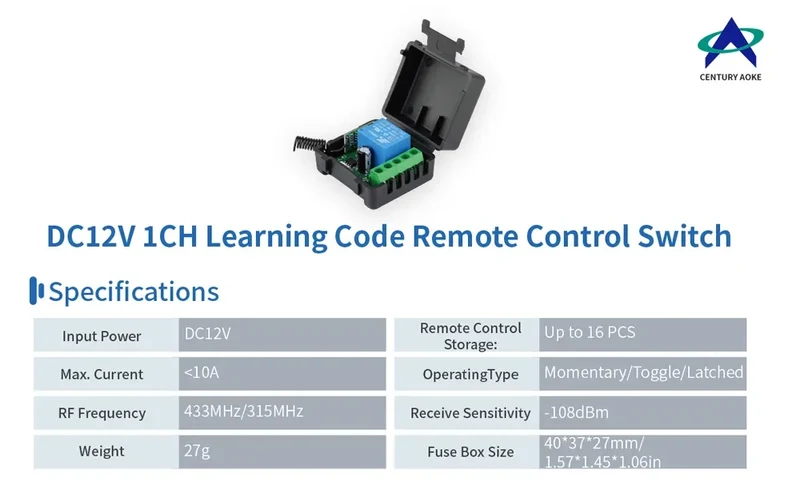

SPECIFICATIONS

Brand Name: CENTURY AOKE

Certification: CE

Channel: 1

Circuit Board Size: 1.57*1.45*1.06inch

Circuit Board Weight: 20g

Frequency: 433 MHz

High-concerned chemical: None

Max current: 10A

Max load: 120W

Model Number: RK01SY+A-J027-2A

Origin: Mainland China

Output Voltage: contact output/1-250V

Package: No

Pins: NO / COM / NC

Quiescent Current: 5mA

RF Operating mode: ASK superheterodyne wireless reception

Receiving Sensitivity: -105dbm

Receiving range: 100 meters (Open space)

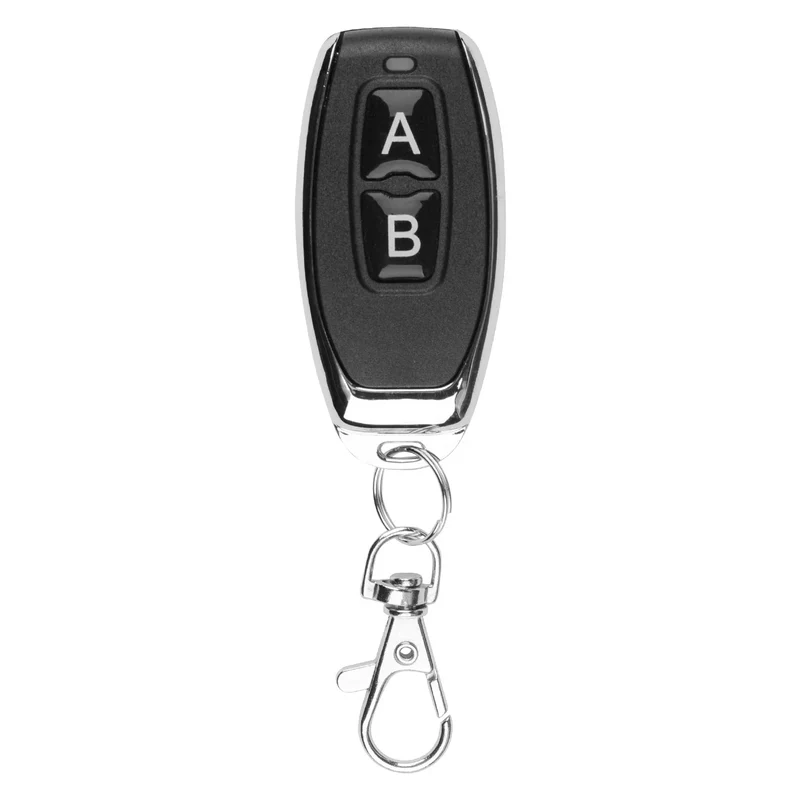

Remote Control Battery: 2*CR2016

Remote operating mode: Momentary / Toggle/ Latched/ Delay Mode

Support APP: No

Support encoding: 1527 Learning code/2262 fixed code

Use: Universal,Projectors,Lighting,Electric Door,Automated curtains,Switch

Wireless Communication: RF

Working Voltage: DC 12V

Kits Transmitter and Receiver 1 Channel CNY 155.99 433MHz USB Wireless Doorbell DC 5V RF Remote Controll Receiver USB Smart Door Be... BUY NOW CNY 100.49 DC12V-48V 433MHz Wireless Remote Control Switch Relay 2CH Receiver waterproof R... BUY NOW CNY 117.49 DC12V-48V 1000M RF Wireless Remote Control 433Mhz Switch Relay 2CH Receiver Modu... BUY NOW CNY 102.99 DC 12V-48V 433Mhz 1000M RF Wireless Remote Control Switch Relay 2CH Multifunctio... BUY NOW CNY 70.49 DC12V 48V 24V 36V 433Mhz RF Wireless Remote Control Switch Relay 2CH Multifuncti... BUY NOW CNY 70 Universal 433MHz RF Wireless Remote Control Switch DC12V 10A 4CH Relay Receiver ... BUY NOW CNY 202.5 Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module With 4... BUY NOW CNY 290 433MHz DC12V 10A Relay RF Wireless remote control Switch 4 Channel Receiver Tran... BUY NOW CNY 270 Universal Wireless Remote Control Switch 433MHz DC12V 4CH relay Receiver Module ... BUY NOW CNY 177.5 DC12V 433MHz Universal Wireless Remote Control Switch 4CH Relay Receiver Module ... BUY NOW CNY 248 4 Buttons 433Mhz Universal Wireless Remote Control Switch DC12V 10A 4CH Relay Re... BUY NOW CNY 215 433Mhz Universal RF Wireless Remote Control Switch DC12V 10A 4CH Relay Receiver ... BUY NOW CNY 221.5 433MHz Universal Wireless Remote Control Switch DC12V 4CH relay Receiver Module ... BUY NOW CNY 65.99 220v 1ch Remote Switch Wireless Relay Switch Remote Control BUY NOW CNY 352 433MHz DC12-36V 10A 4 CH Relay Wireless Remote Control Switch Receiver RF Transm... BUY NOW CNY 324.99 433MHz RF Wireless Remote Control Switch DC12V-36V 10A Smart Multiple 4 Channel ... BUY NOW CNY 316.5 DC12-36V 10A 433MHz 4 Channel Relay Wireless RF Remote Control Switch Receiver M... BUY NOW CNY 280 DC12V 24V 36V 10A 433MHz 4 Channel Relay Wireless RF Remote Control Switch Recei... BUY NOW CNY 266.5 DC12V-36V 10A 433MHz Smart Multiple 4 Channel Relay RF Wireless Remote Control S... BUY NOW CNY 92 433MHz DC12-36V 4 Channels Lighting Electric Garage Door Control Barriers Univer... BUY NOW

DC 12V 433 MHz RF Wireless Remote Control Switch relay 433MHz 1CH Receiver Module For Learning code Transmitter remote DIY

• Input Voltage: 12 V

• RF working mode: Superheterodyne

• Receiver sensitivity: > 105 dbm

• Transmitting distance:> 100 m ( open space)

• Decoding mode: MCU software decoding

• Remote storage: 20

• Support remote type: EV1527 learning code

• Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )

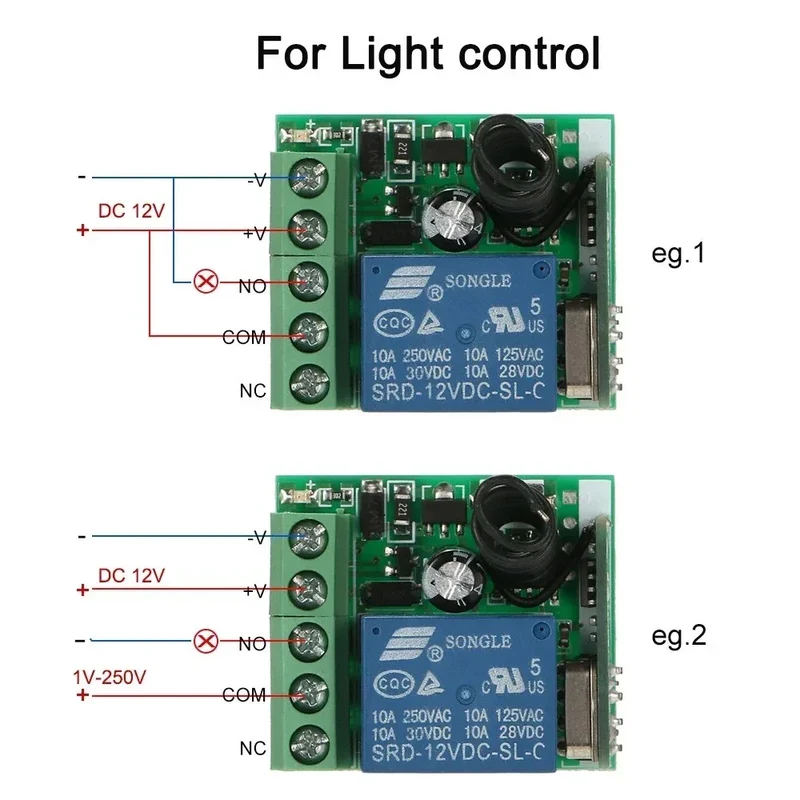

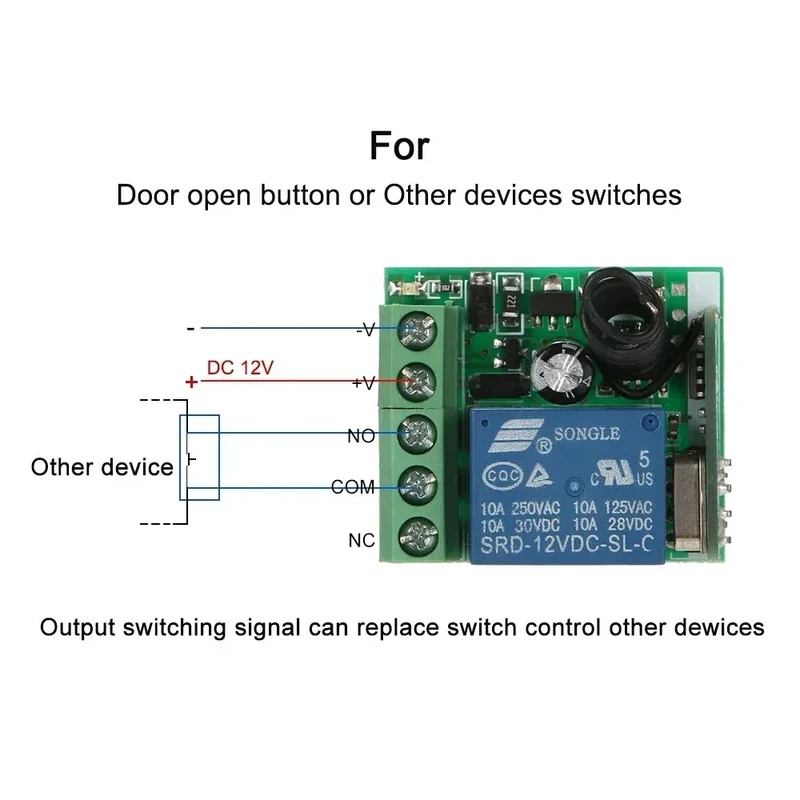

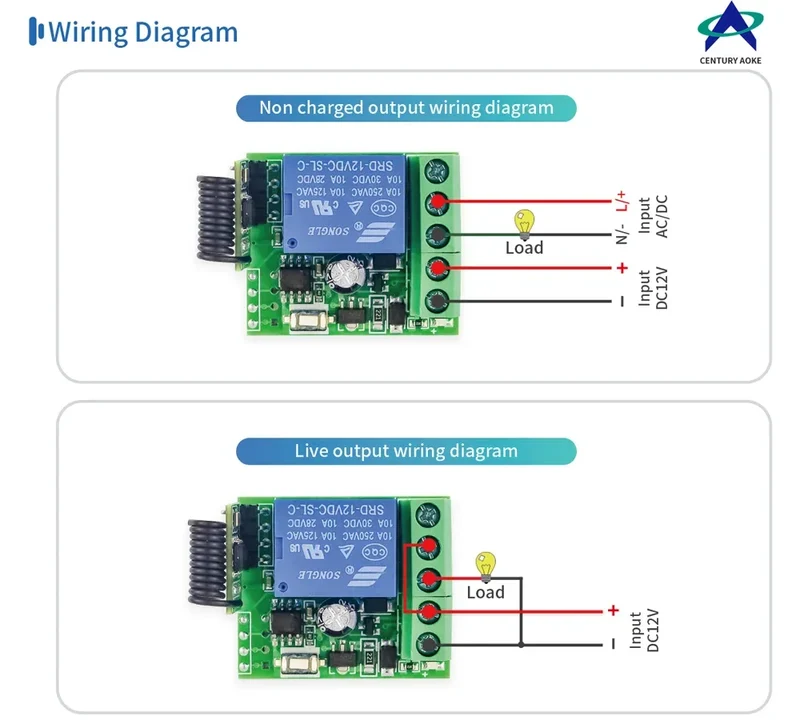

• Output terminal: NO , NC , COM

• Remote control battery: 2 x 3 V CR2016 button batteries

Note: Maximum input power is 250 V

Remote programming

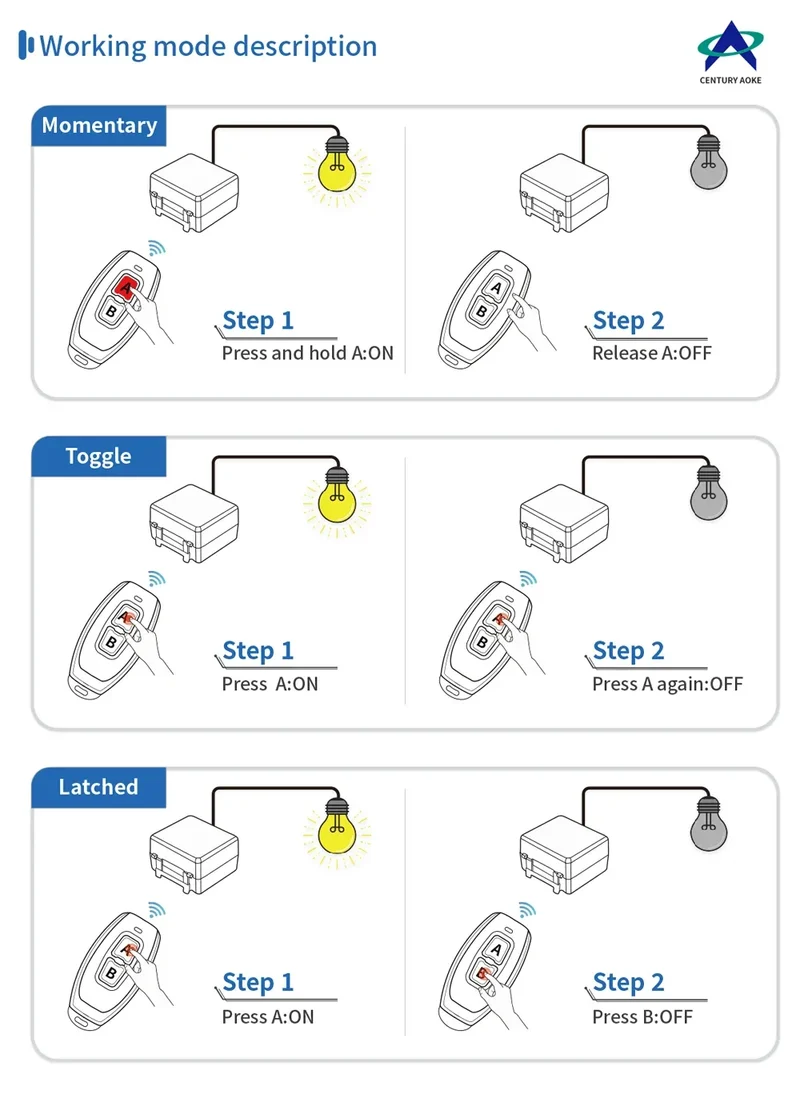

Working mode:

1. Inching mode: press the remote control the relay will connect, and then release the remote controlto disconnect the relay;

2. Self-locking mode: press the remote control the relay will connect, and then press the remote control again to disconnect the relay;

3. Interlock mode: press the remote control key A to connect the relay, and press the remote control key B to disconnect relay.

4. Delay mode: press the remote control the relay will connect, release the remote control and start timing. After 5S, 10S and 15S (3 gears), the relay will be automatically closed.

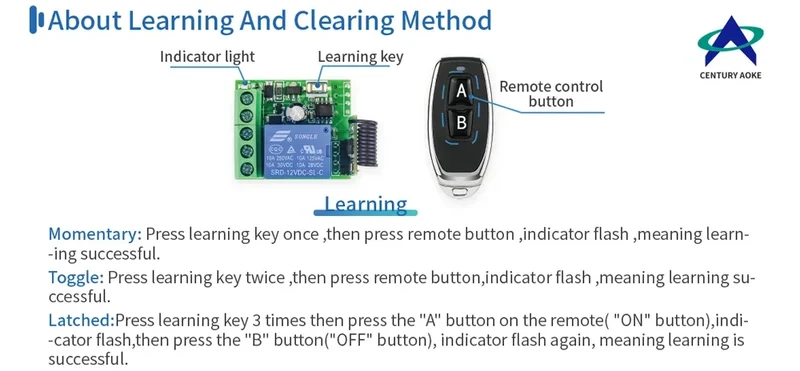

Learning Methods:

1. Inching learning method:

Press the code pairing button on the control panel once, and the LED indicator will flash once. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

2. Self-locking learning method:

Press the code pairing button on the control panel twice, and the LED indicator will flash twice. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

3. Mutual lock learning method:

Press the code pairing button on the control panel three times, and the LED indicator will flash three times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

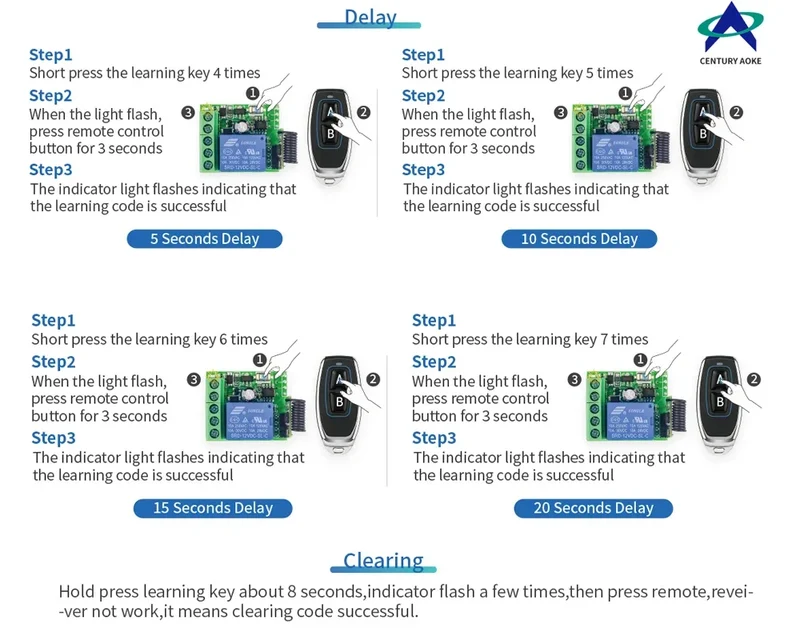

4. 5S delay learning method:

Press the code pairing button on the control panel four times, and the LED indicator will flash four times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

5. 10S delay learning method:

Press the code pairing button on the control panel five times, and the LED indicator will flash five times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

6. 15S delay learning method:

Press the code pairing button on the control panel six times, and the LED indicator will flash six times. After the LED indicatorlit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.

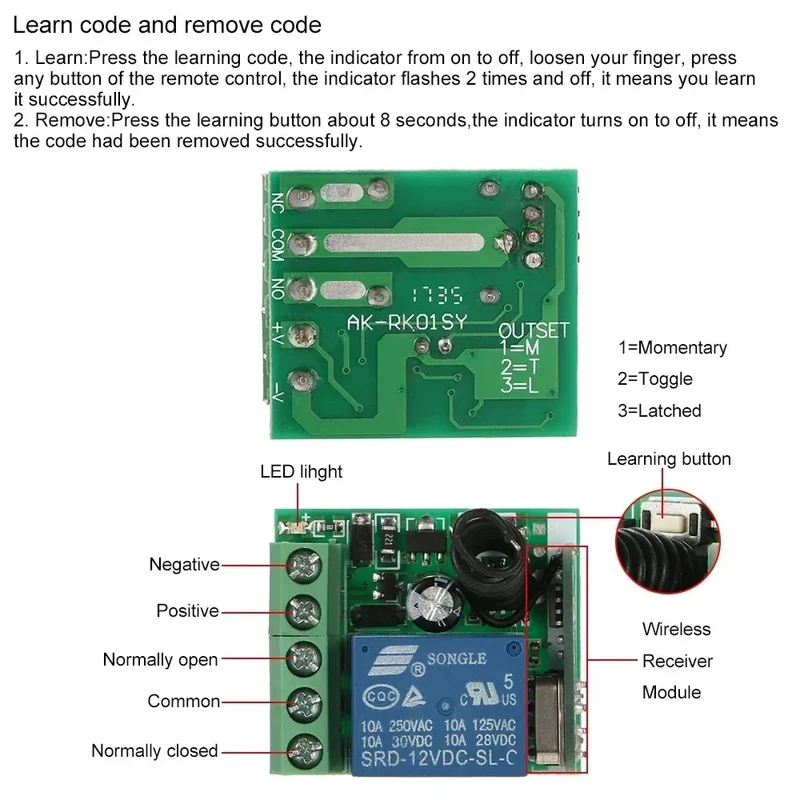

-Clearing the code :

Push the learning button on the receiver 8 times , the codes will be reset.

After clearing the code, remotes will be need to be recalibrated
