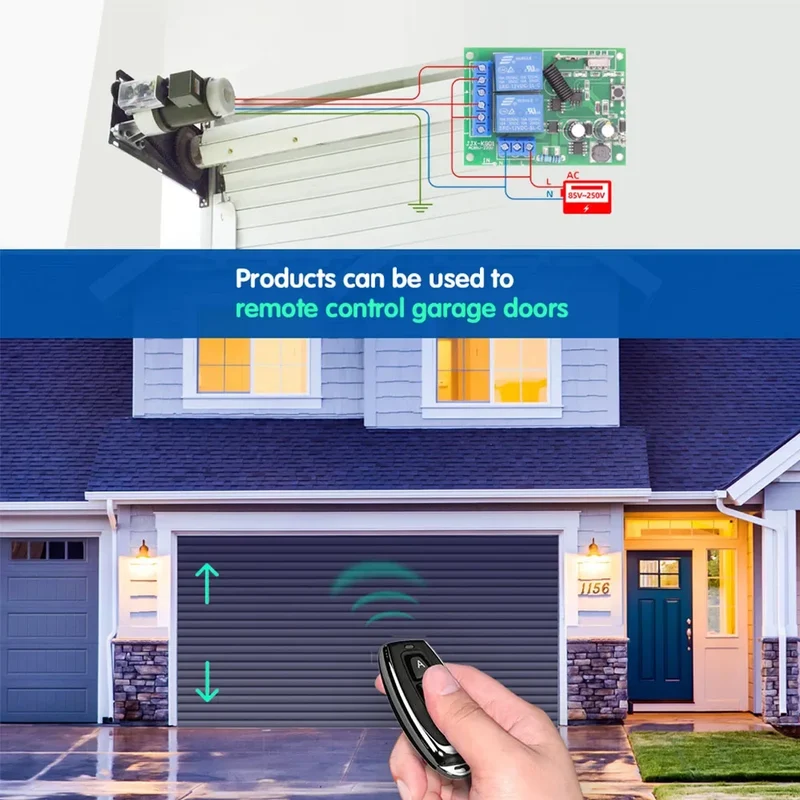

433MHz Universal Wireless Remote Control AC220V 2CH rf Relay Receiver and Transmitter for Universal Garage door and gate Control

SPECIFICATIONS

Amount of storage remote controls: 25 pieces

Application scenario: Family, Farm, Factory, Office, Supermarket

Application2: Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor

Brand Name: Diese

Certification: CE,RoHS

Channel: 2

Choice: yes

Frequency: 433 MHz

Input Voltage: 1~250V

Max current: 10A

Model Number: KR2202 RF Relay Receiver and Transmitters

Origin: Mainland China

Output Voltage: 1~250V

Package: Yes

Quiescent Current: 5mA

RF Operating mode: ASK superheterodyne wireless reception

RF frequency: 433MHz

Receiving Sensitivity: 97dbm

Receiving range: Open space is more than 50 meters

Remote operating mode: Momentary/ Toggle/ Latched Mode

Support APP: No

Support encoding: 1527 Leaning code/ 2262 fixed code

Use: Universal,Lighting,Electric Door,Automated curtains,Switch

Wireless Communication: RF

Working temperature: -30~+80

Working voltage: AC 85V-250V

semi_Choice: yes



433MHz Universal Wireless Remote Control AC 220V 2CH rf Relay Receiver and Transmitter for Universal Garage door and gate Control

• Working Voltage  :  AC85V-250V

• Output vlotage  : 1~250V

• Quiescent Current  : <5MA

• Max current  :  10A

• RF frequency  : 433MHz

• Working temperature  : -30~+80

• Receiving Sensitivity  : >97dbm

• Amount of storage remote controls  : 25 pieces

• Support encoding  : 1527 Leaning code/2262 fixed code

• RF Operating mode  : ASK superheterodyne wireless reception

• Receiving range  : Open space is more than 50 meters

• Remote operating mode  : Momentary Mode /Toggle Mode /Latched Mode

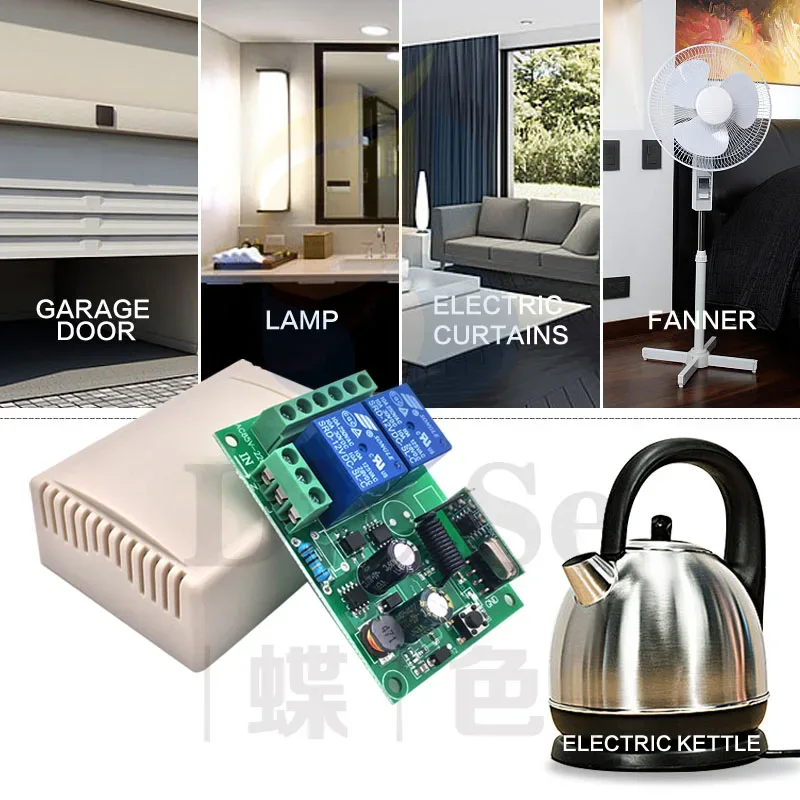

Wide  Range  of  Uses

Super  Stable  RF  Output

Perfect  Craft  Detail  Control

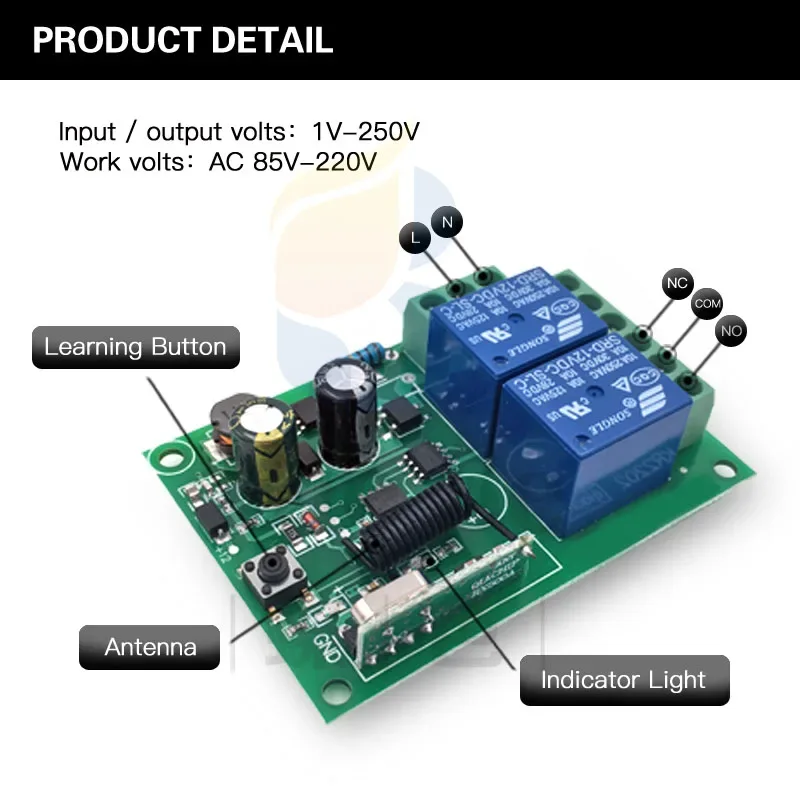

NO : Normal open           COM  :  Common            NC : Normal closed



Exquisite  Detail  Design

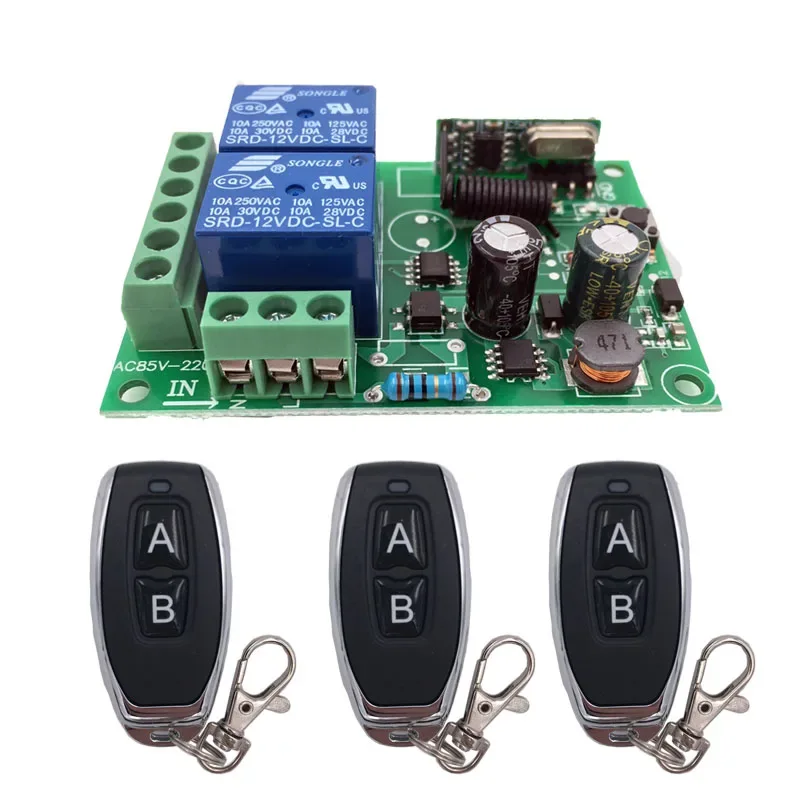

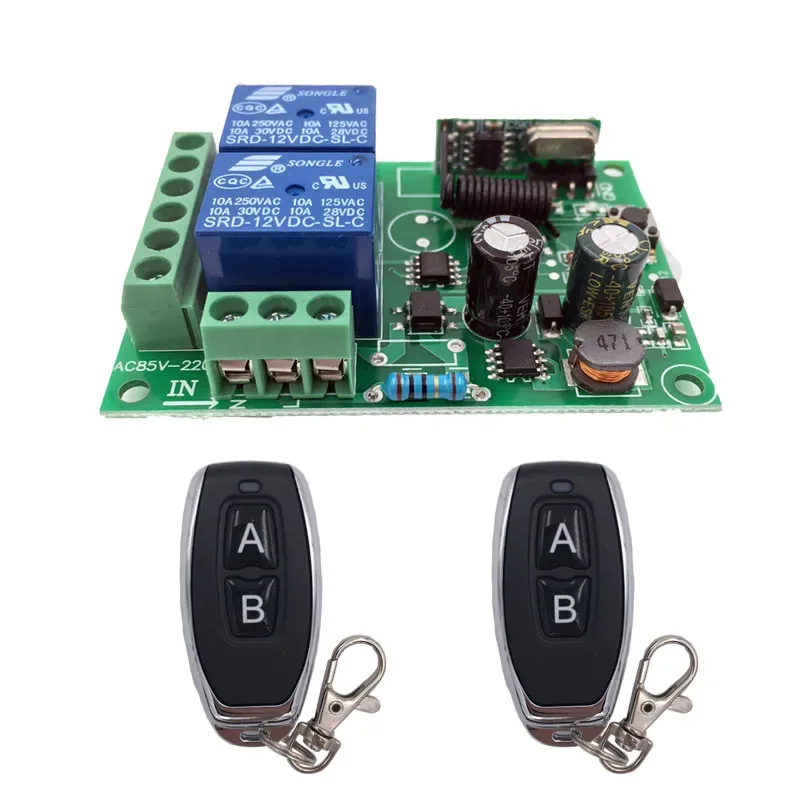

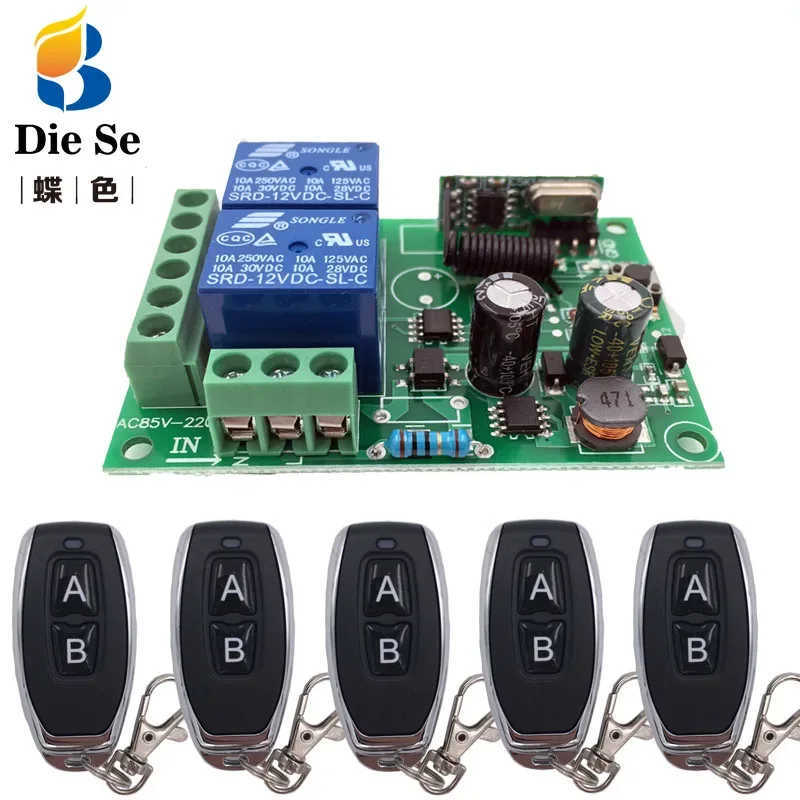

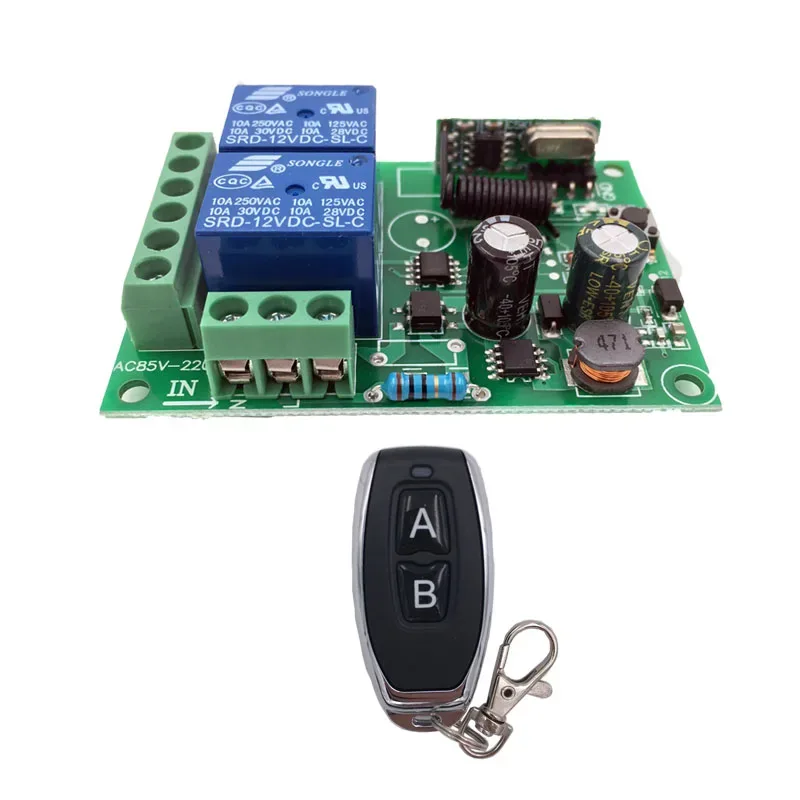

  Package include

Receiver module ( include Shell )

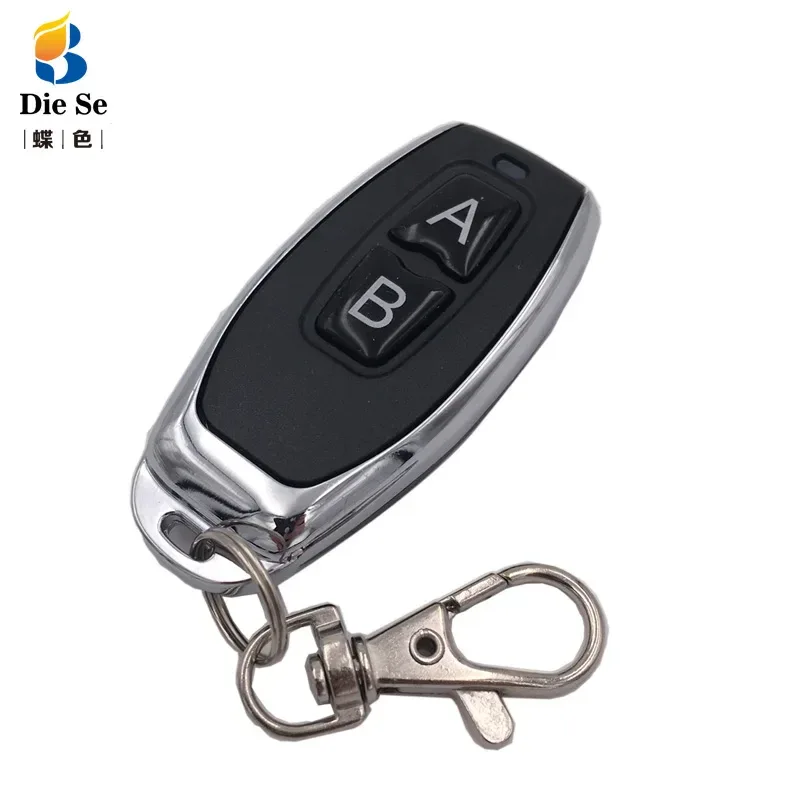

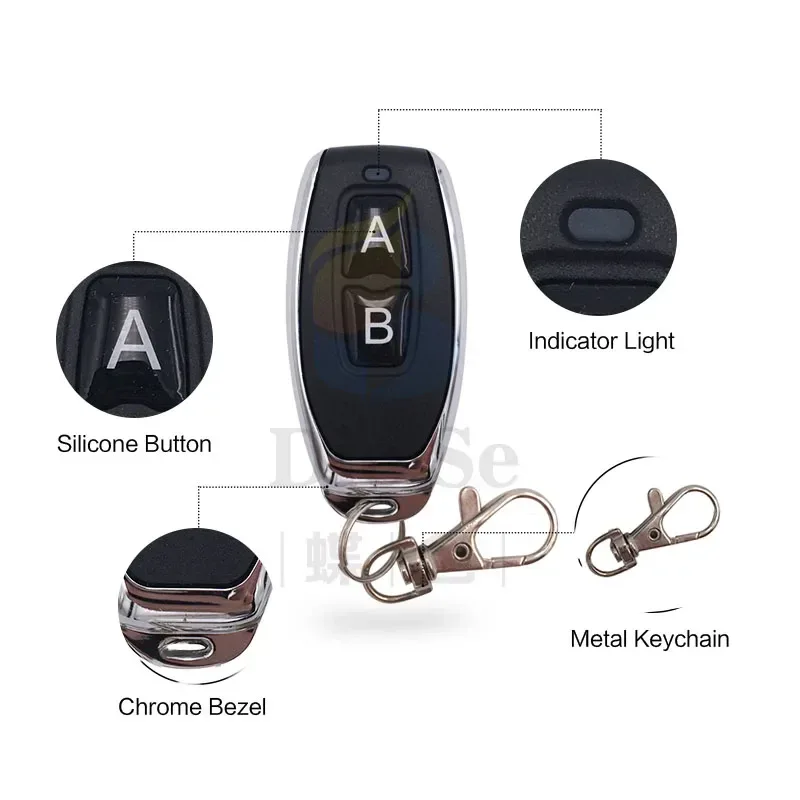

Remote Control (include battery )
Product Manual

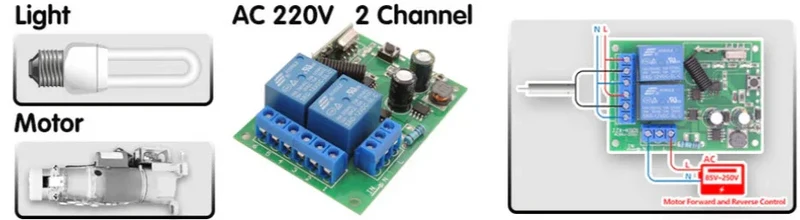

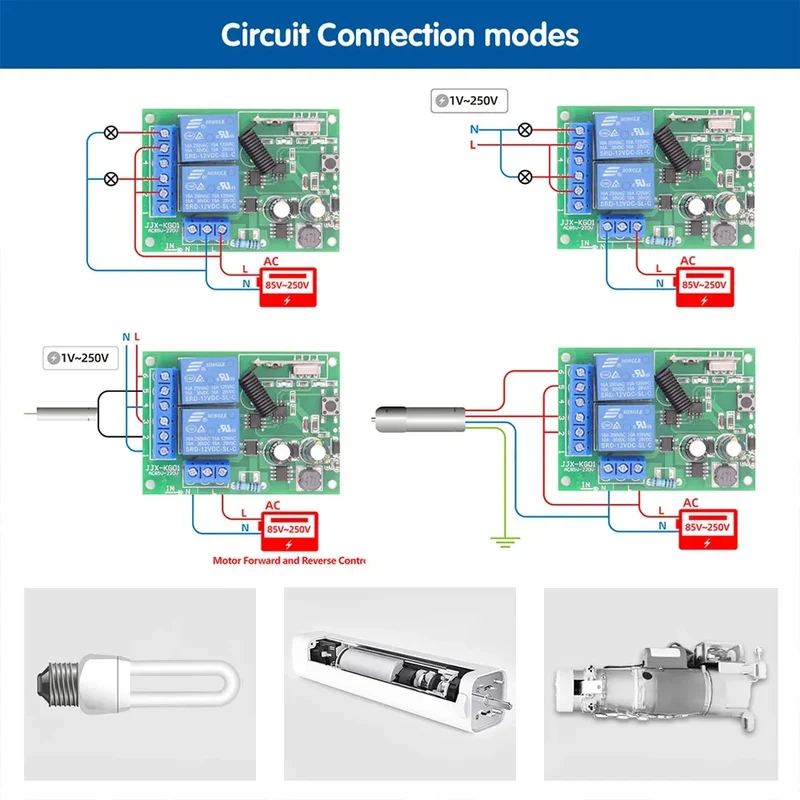

  Wiring Diagram

  Operating Mode

You can match the Remote Control with the Receiver Switch Module  in 3 modes.   Set Up   On this products details page, there is a demonstration video available. *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
