433Mhz RF Remote Control Circuit Universal Wireless Switch DC 5V 12V 24V 2CH rf Relay Receiver and Keyfob Transmitter for Garage

SPECIFICATIONS

Amount of storage remote controls: 25 pieces

Application scenario: House, Farm, Factory, Office, Supermarket and so on

Application2: Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor

Brand Name: Diese

Certification: CE,RoHS

Channel: 2

Choice: yes

Frequency: 433 MHz

High-concerned chemical: None

Input Voltage: 1~250V

Max current: 10A

Model Number: KR2402 RF Relay Receiver Door Control System security

Origin: Mainland China

Output Voltage: 1~250V

Package: Yes

Pin: NO COM NC

Quiescent Current: 5mA

RF Operating mode: ASK superheterodyne wireless reception

RF frequency: 433MHz

Receiving Sensitivity: 97dbm

Receiving range: Open space is more than 50 meters

Remote operating mode: Momentary/ Toggle/ Latched Mode

Support APP: No

Support encoding: 1527 Leaning code/ 2262 fixed code

Use: Universal,Lighting,Electric Door,Automated curtains,Switch

Wireless Communication: RF

Working temperature: -30~+80

Working voltage: DC 5V~30V

semi_Choice: yes



433Mhz RF Remote Control Circuit Universal Wireless Switch DC 5V 12V 24V 2CH rf Relay Receiver and Keyfob Transmitter for Garage

  Product Application Area

Products can be used in lighting, garage doors, shutter doors, remote control curtains, DC motors, motor reversing. and many more

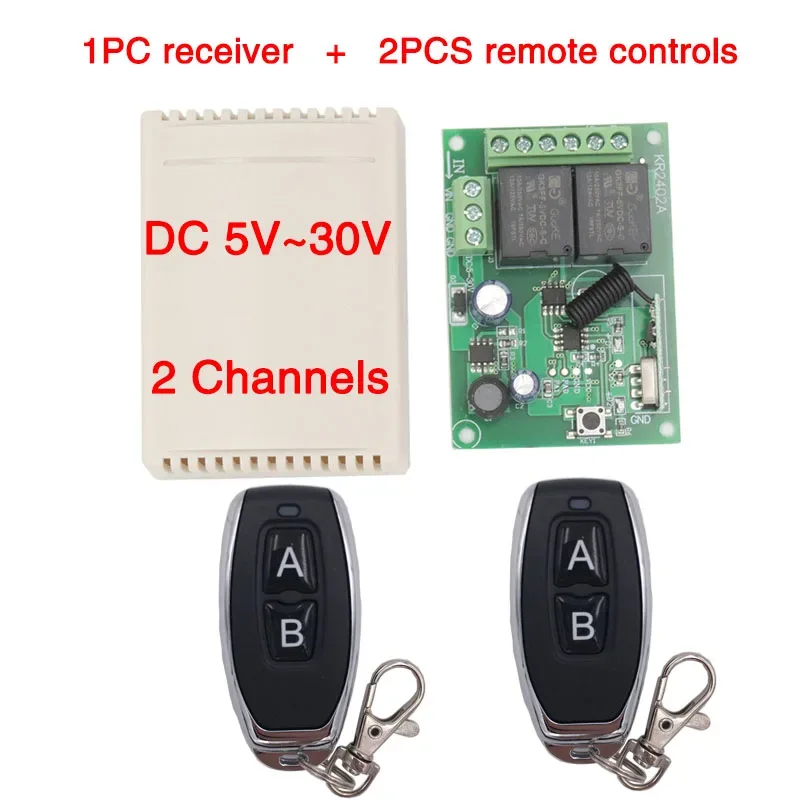

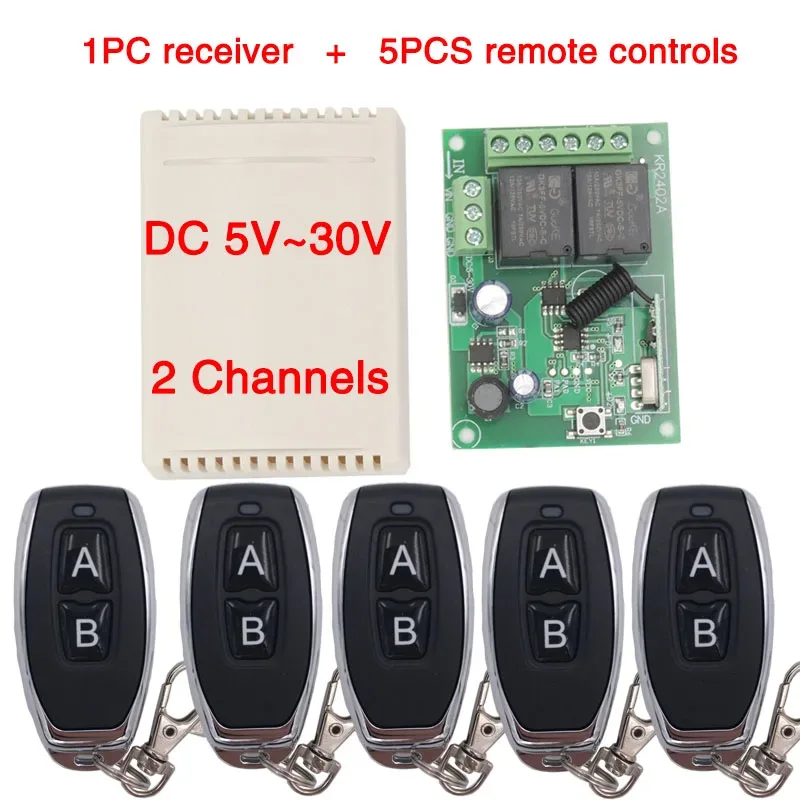

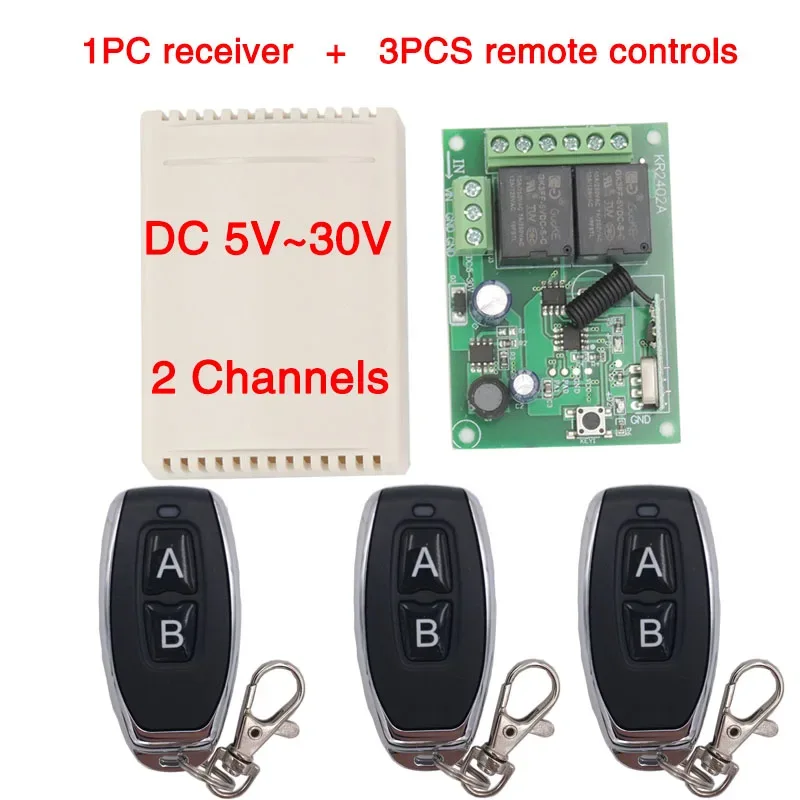

  Package include

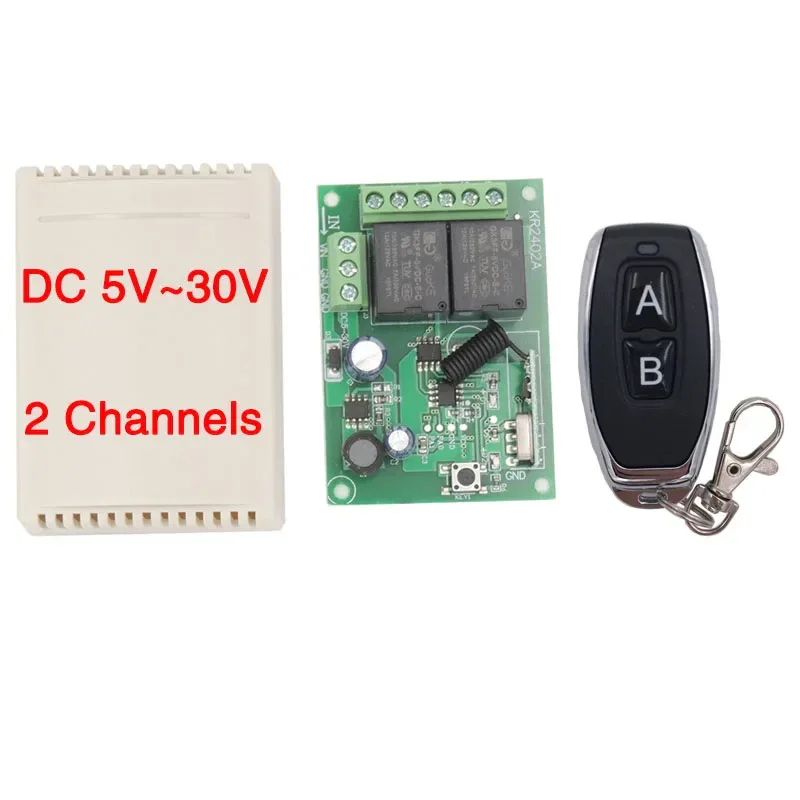

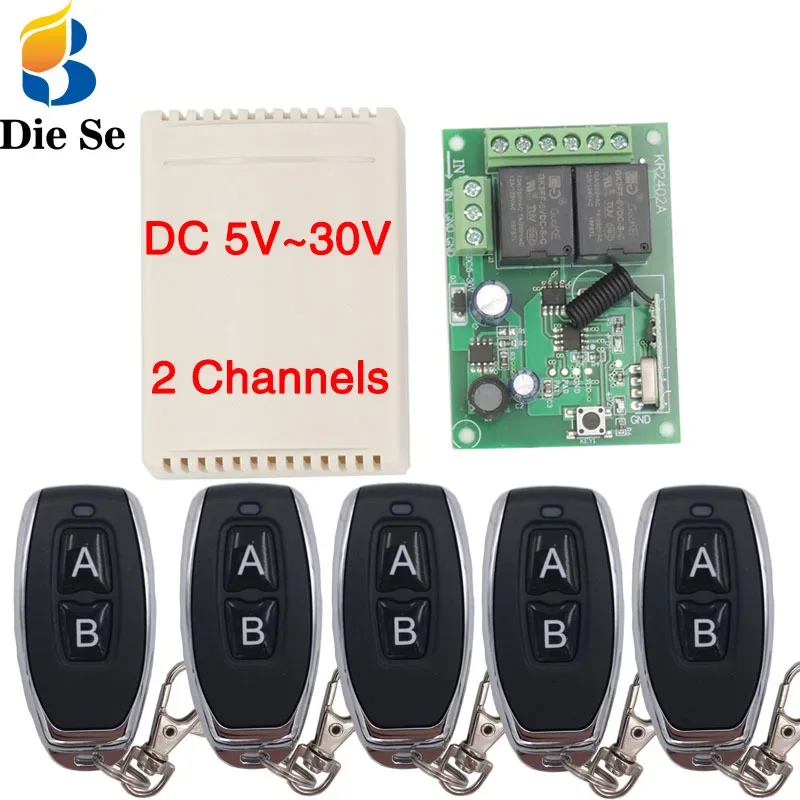

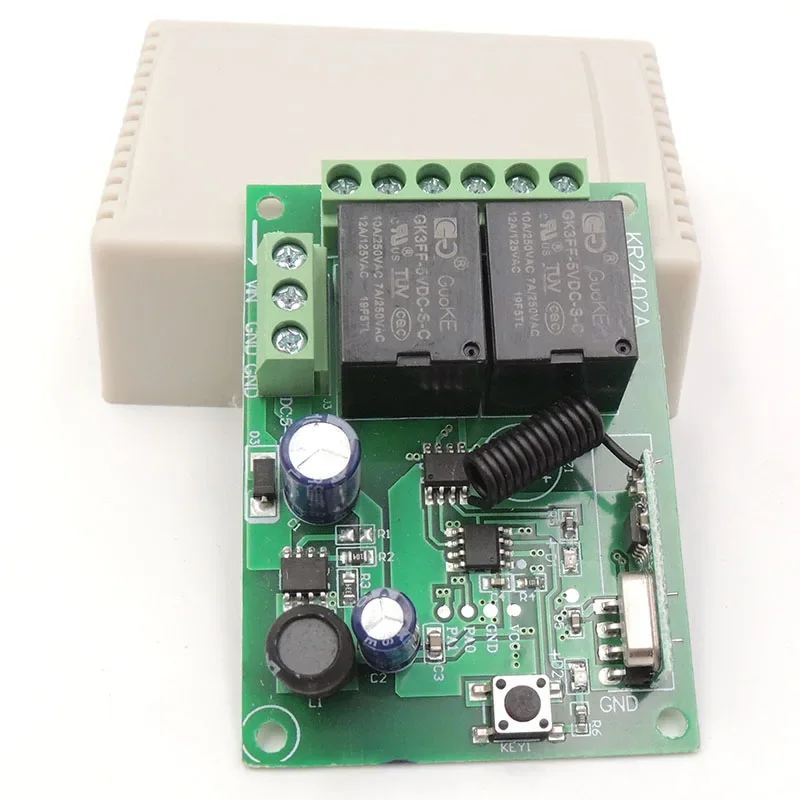

Receiver module

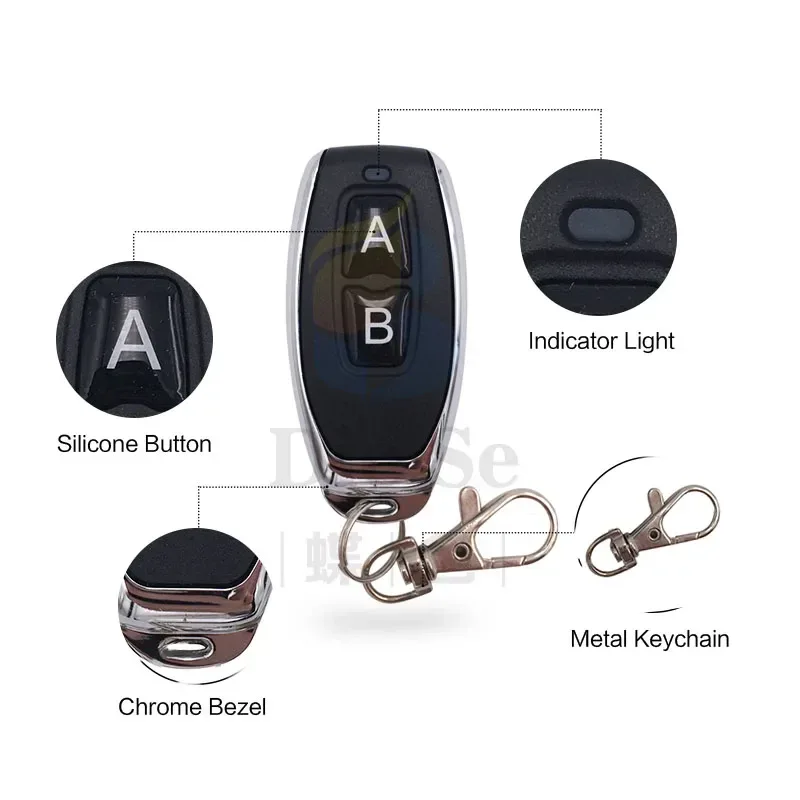

Remote Control  (include battery )

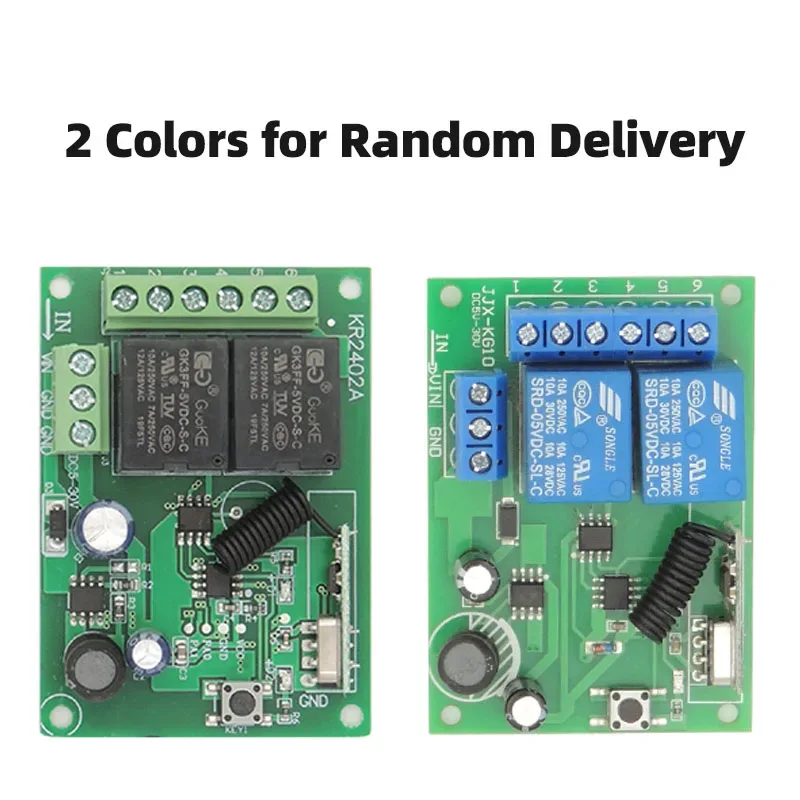

  Products  Display

Tips:

All of our products are of high quality! If you have other needs, please feel free to purchase them in our store. Click here to search more

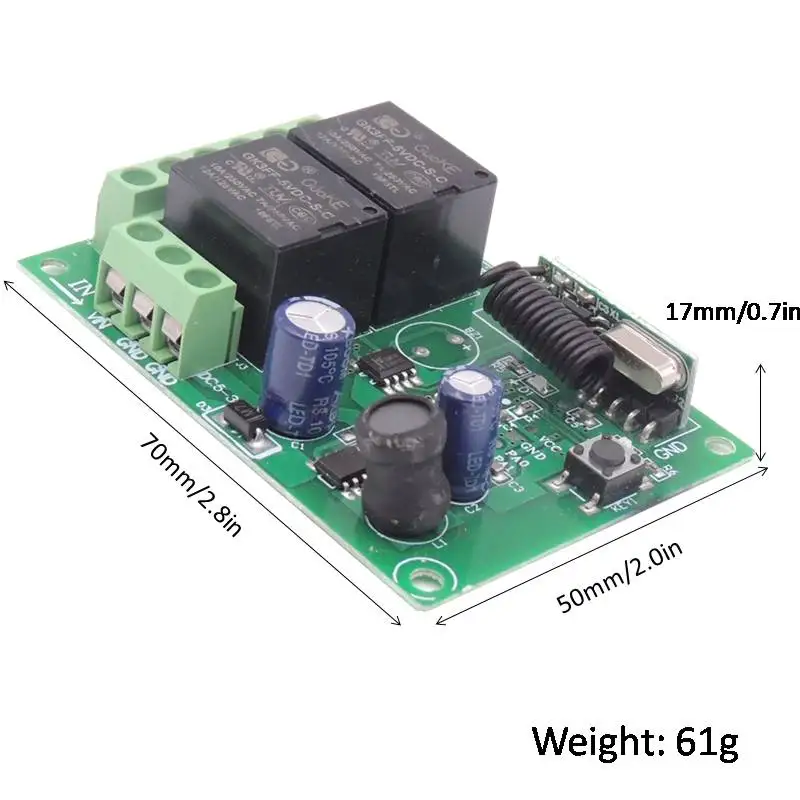

  Products  Data

• Working Voltage  :  DC 5V~30V

• Input vlotage  : 1~250V

• Output vlotage  : 1~250V

• Quiescent Current  : <5MA

• Max current  :  10A

• RF frequency  : 433MHz

• Working temperature  : -30~+80

• Receiving Sensitivity  : >97dbm

• Amount of storage remote controls  : 25 pieces

• Support encoding  : 1527 Leaning code/2262 fixed code

• RF Operating mode  : ASK superheterodyne wireless reception

• Receiving range  : Open space is more than 50 meters

• Remote operating mode  : Momentary Mode /Toggle Mode /Latched Mode

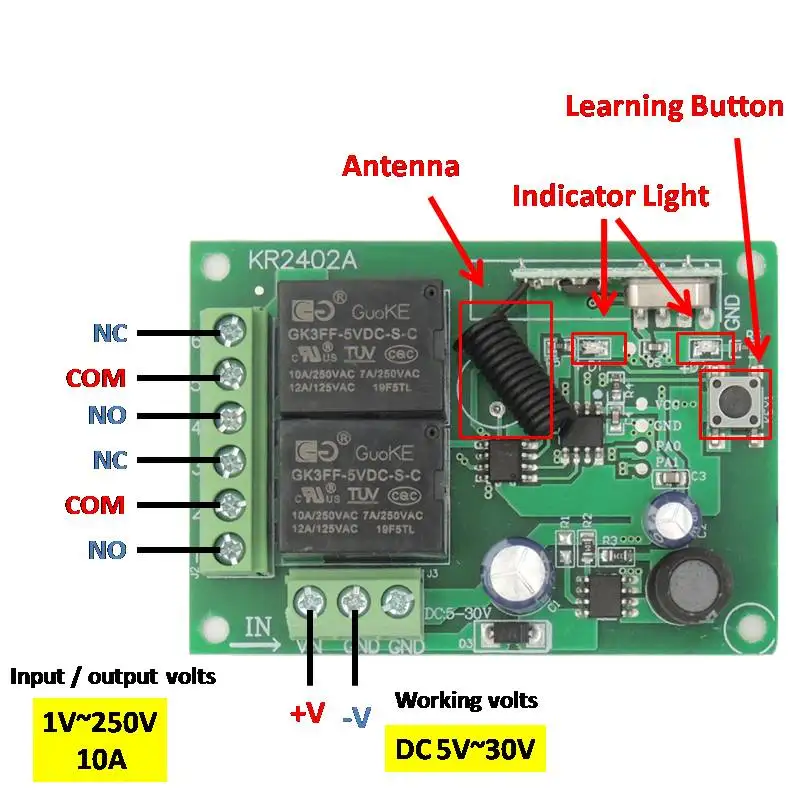

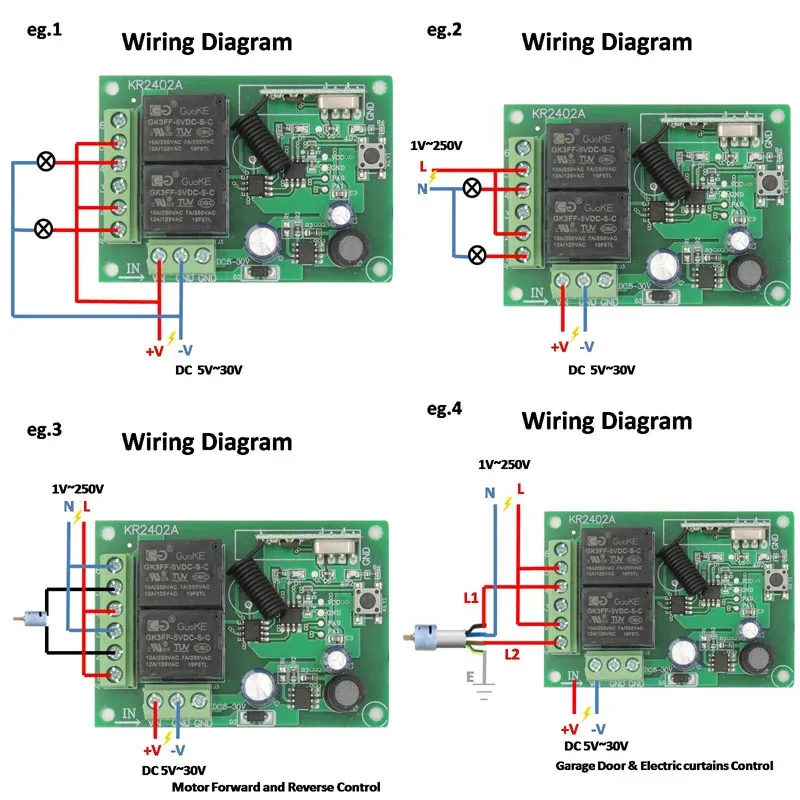

  Wiring diagram

1 NC:Normally closed Output 2 COM:Common port    3 NO:Normally open Output

  Operating Mode

You can match the Remote Control with the Receiver Switch Module  in 3 modes.

  Set Up

   -  Part 1: Delete the existing data about remote mode

Note:When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about  remote modefor the first application.   Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed. After deleted the data, all the remote control cannot work any more.

   - Part 2: Set up

Set up : Momentary Mode

• STEP 1

Press and release the learning button on the Receiver Switch Module board once. Wait for a moment , the LED will turn off , indicating you entered the learning state.

• STEP 2

Press button "A" on theRemote Control, the LED on the receiver board will flash on then off indicating the button was learned.

• STEP 3

Press button "B" on the Remote Control, watching the LED go on and off again. Wait 3 seconds, the LED will turn on again, indicating system is ready for use.

Set up :Toggle Mode

• STEP 1

Press and release the learning button on the Receiver Switch Module board twice. Wait for a moment , the LED will turn off , indicating you entered the learning state.

• STEP 2

Press button "A" on the Remote Control, the LED on the receiver board will flash on then turn off , indicating the button was learned.

• STEP 3

Press button "B" on the Remote Control, watching the LED go on and off again. Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use
Set up : Latched Mode

• STEP 1

Press the learning button on the Receiver board 3 times.

• STEP 2

Press button "A" on the Remote Control,

• STEP 3

Press button"B" on the Remote Control Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use.
On this products details page, there is a demonstration video available.   *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
