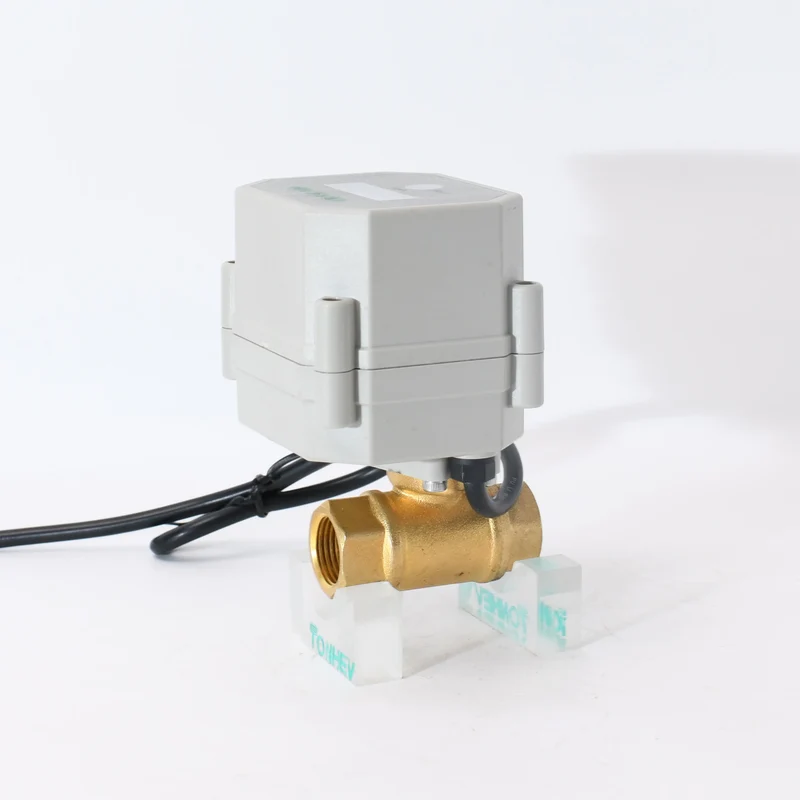

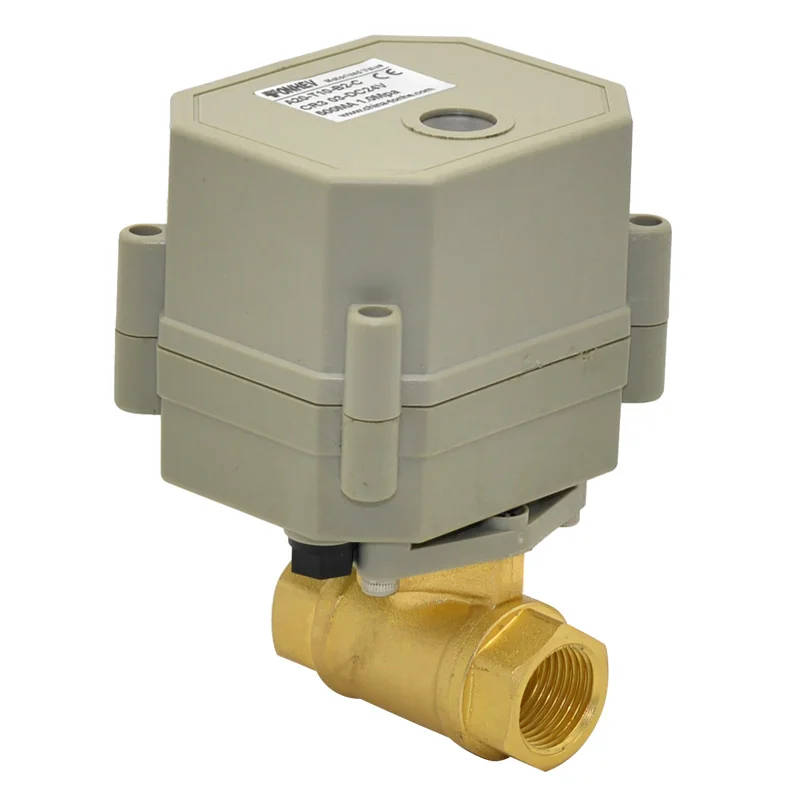

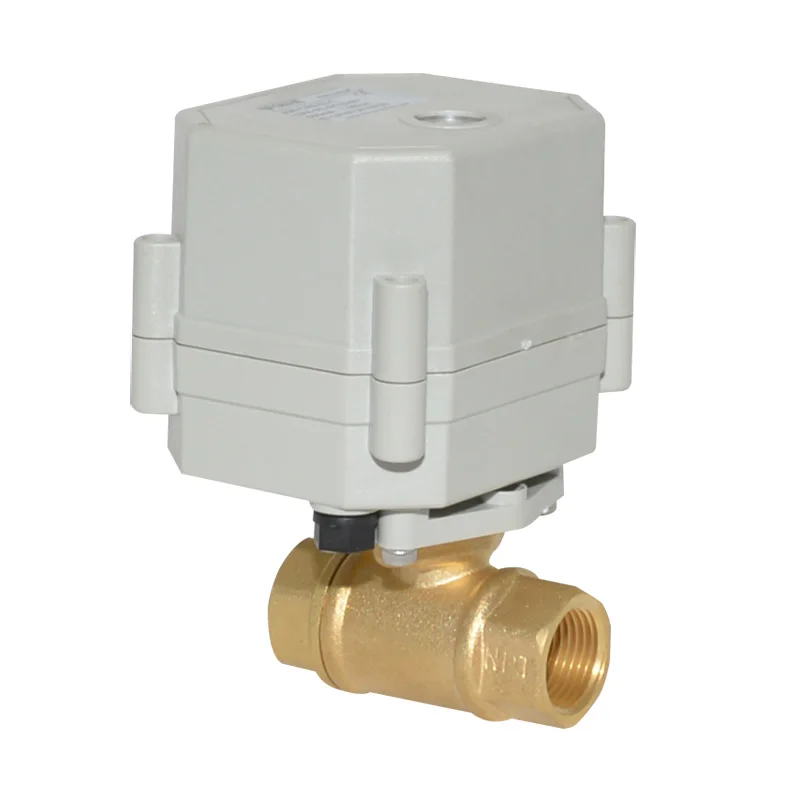

3/8" DN10 Electric Actuator Electric Water Valve Motorized Ball Valve 12v with Feedback Wire

SPECIFICATIONS

Body material: brass

Certificate: CE, Rohs, IP67

Color: Customer's Request

Open/close time: ≤5 Sec

Port Size: 3/8"

Product name: DN10 3/8" DC12V motorized valve

Seal Material: EPDM & PTFE

Torque: 2 N.m

Type: with indicator

Voltage: DC12V

Working current: ≤500MA

application: General

brand name: Tonhe

customized support: OEM,ODM

media: Water

model number: electric water control valve

place of origin: Zhejiang, China

power: Electric

structure: Ball

temperature of media: Normal Temperature

warranty: 1 years

Product Description

3/8" DC12V /DC24vsmall motorized Electric water control electronic shut-off valves

Size	NPT, BSP 3/8''
Material	Brass
Fields of applications	Water
Maximum working pressure	1.0MPa
Rated Voltage	DC12V  or DC24V or DC5V
Packaging	Standard export package or Customized
Payment	L/C,D/P,T/T
Delivery	Ningbo Port,3-20 days after payment

Technical Parameters:

New electric motorized valve

Valve size -------------------  3/8”

Valve Body material -------  Brass

Actuator material ----------  Engineering Plastics

Sealing material ------------  EPDM & PTFE

Rated voltage --------------  DC12V

Wiring control methods ------- CR5-01

Working current -----------  ≤500MA

Life time  -------------------  70,000 times

Protection class  -----------  IP67

Open/close time    --------- ≤5 S

Actuator rotation  ---------- 90°

Max. torque force  --------- 2Nm

Cable Length --------------  0.5m, 1.5m (Optional)

Manual override   ---------- No

Indicator   ------------------Yes

Maximum working pressure --------- 1.0MPa

Circulation medium -------------------  Fluid, Air

Environment temperature ----------  15℃~50℃

Liquid temperature ------------------   2℃~90℃

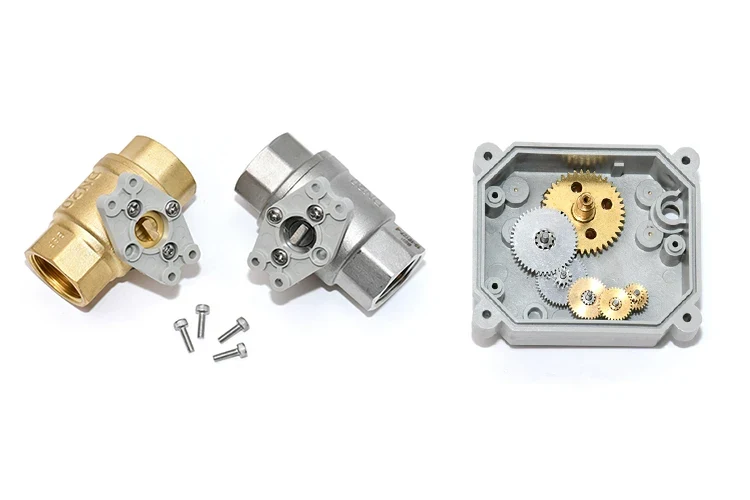

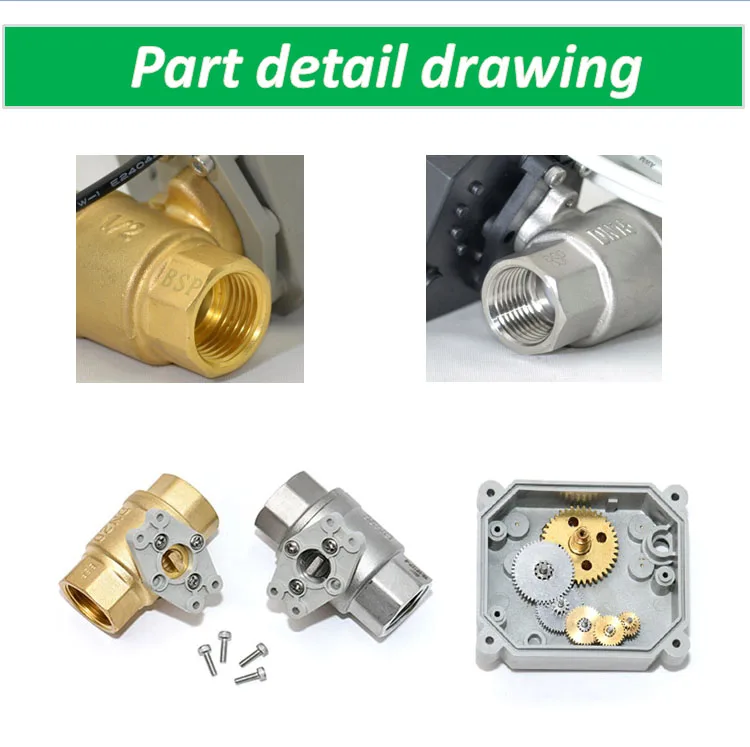

Detailed information

Wiring Diagram

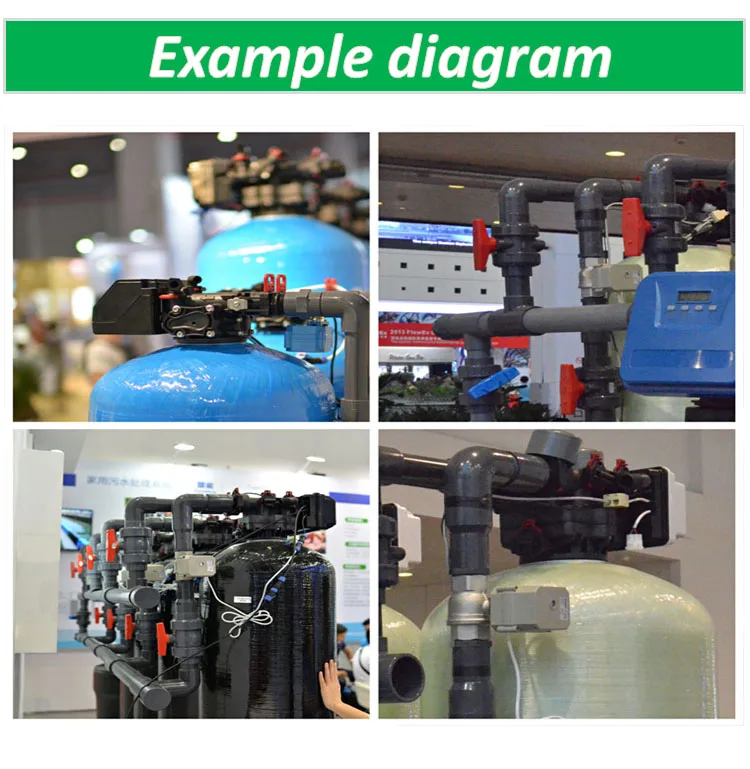

Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment

Pls confirm the above different versions of actuators

When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length 0.5m or 1.5m?

Packaging & Shipping Our Services

Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.

TONHE is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .

Company Information FAQ

Q:what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: How about your products and company approved?
A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.

Q: Can I get samples from your factory?
A: Yes, Samples can be provided.

Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more  reliable and guaranteed for your customer or the user.
