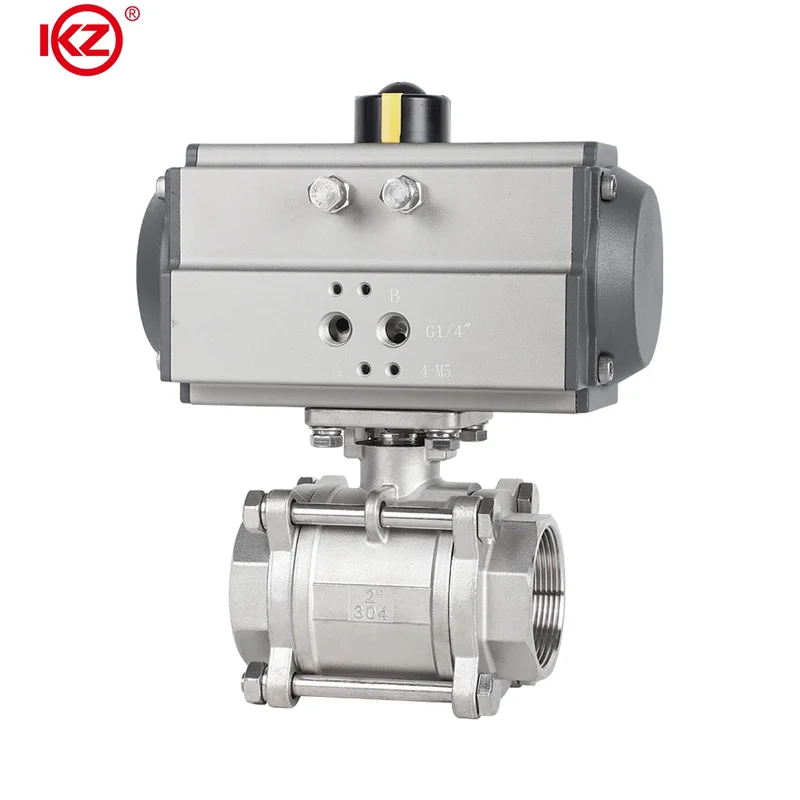

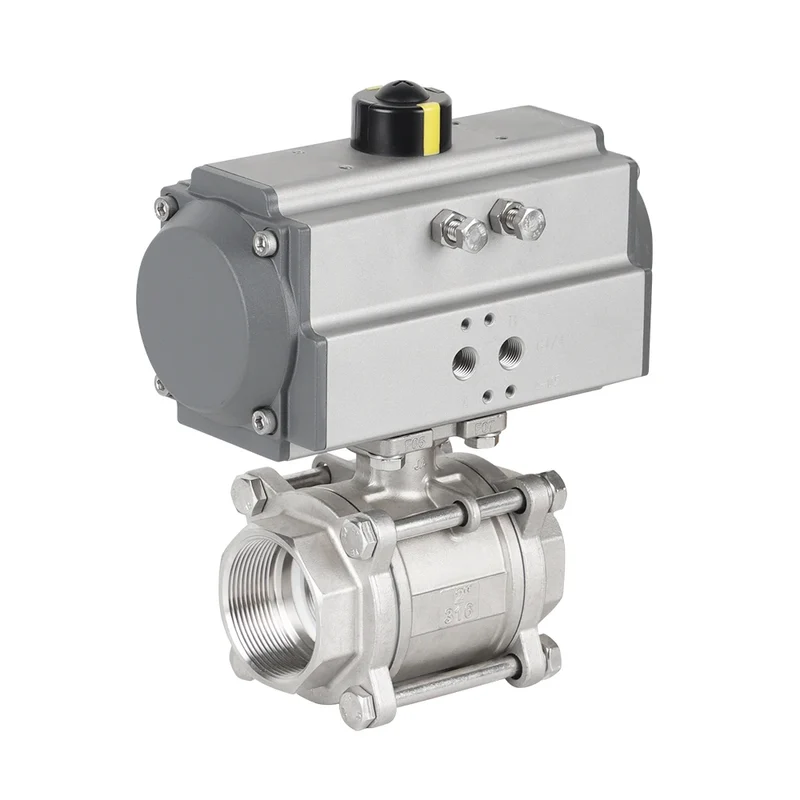

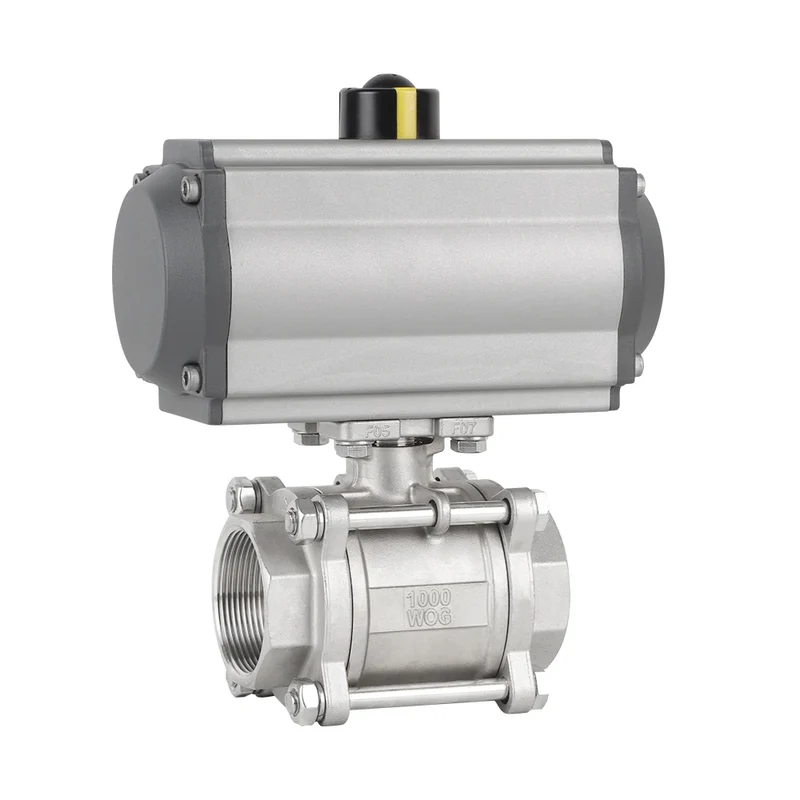

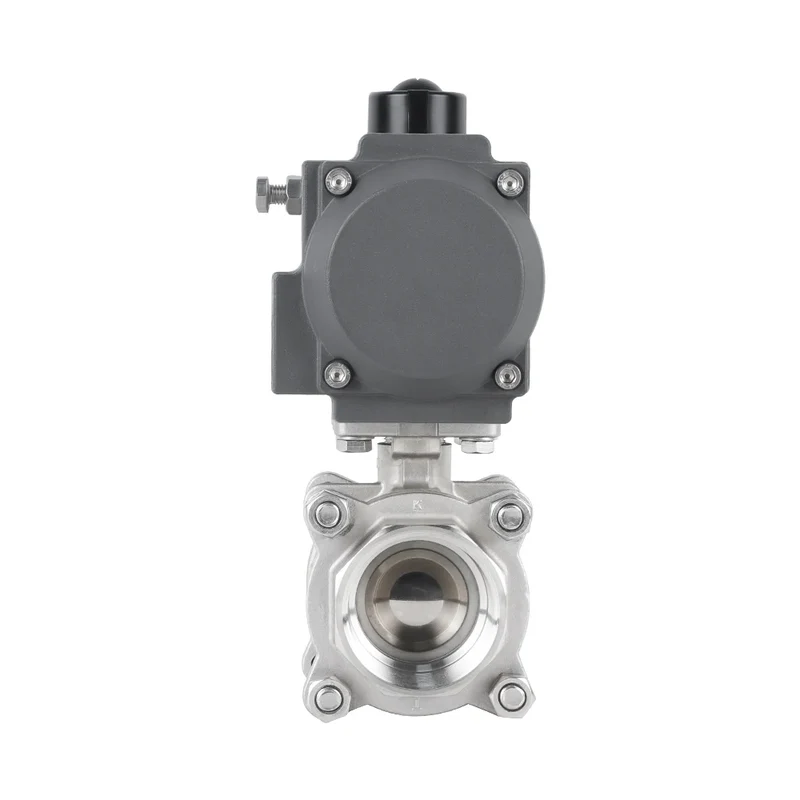

304 Stainless Steel Q611F-16P Pneumatic Three-piece Screw Ball Valve with High Temperature Internal Thread On-Off OEM Supported

SPECIFICATIONS

Ball Material: Carbon Steel,Cast Iron

Body material: SS304/SS316/SS316L

Certifications: ISO9001

Connection: Threaded screw thread

Connection Size: 1/2 in,1/4 in,1 in,3/4 in,3/8 in,2 in,3 in,4 in,5 in,6 in

Connection Type: NPT

End Connection: Threaded

For Maximum Pipe Size: 50 mm,15 mm,20 mm,25 mm,100 mm,75 mm,3 in,1/2 in,2 in,4 in,1 in,3/4 in,38 mm,1.5 in

Lifespan: 1,000,000 (1 Million) Times

Material: Stainless Steel 304/316

Port Size: DN8-DN100

Product name: Pneumatic Threaded Ball Valve

Sealing Material: PTFE

Size: Customized Size

Type: 2-way

application: General

brand name: Fude Sheng

customized support: OEM

media: Air, Gas, Oil, Liquid,water

model number: Q611F-16P

place of origin: Jiangsu, China

power: Pneumatic

pressure: PN16

structure: Ball

temperature of media: Low Temperature,Medium Temperature,Normal Temperature,High Temperature

warranty: 1years

Products Description

OPEN VALVE：The gas source entersfrom (2) and exits from (4)			CLOSE THE VALVE：The gas source entersfrom (4) and exits from (2)
Figure（2）shows the intake causing the introduction of two pistons into the cylinder Separate the two pistons and move them in two sections.			Figure（4）shows the intake of air to introduce the two pistons intothe cylinder Move towards the center, with the output shaft in the closed state.

OPEN VALVE：The gas source entersfrom (2) and exits from (4)					CLOSE THE VALVE：The gas source entersfrom (4) and exits from (2)
Figure（2）shows the intake causing the introduction of two pistons into the cylinder Compress the two ends of the spring between them.					Figure （4）shows the solenoid valve being switched backwards with the spring facing downwards Compression causesdisplacement,thus resetting.
