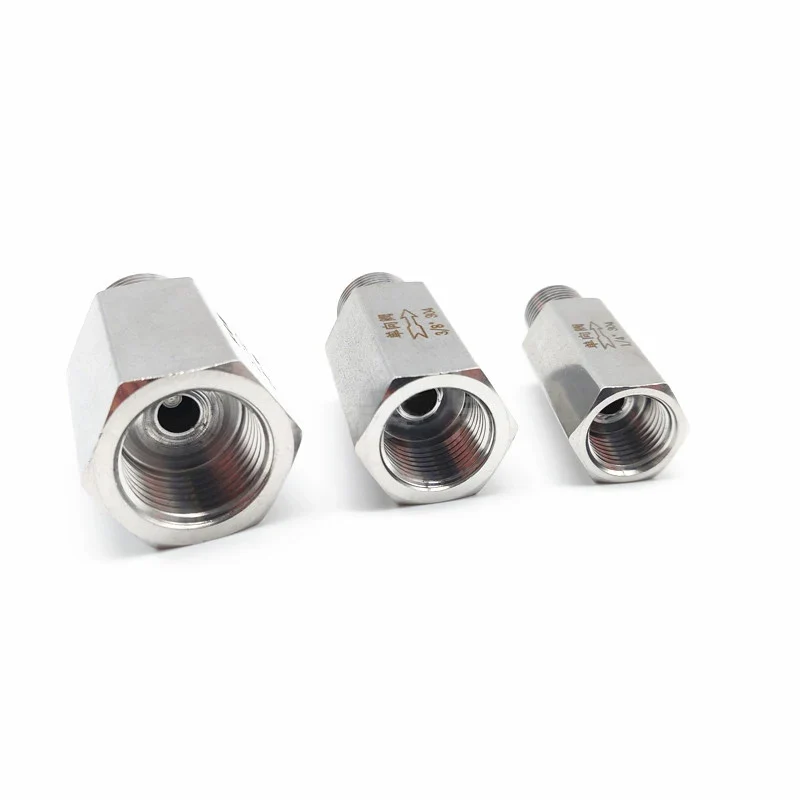

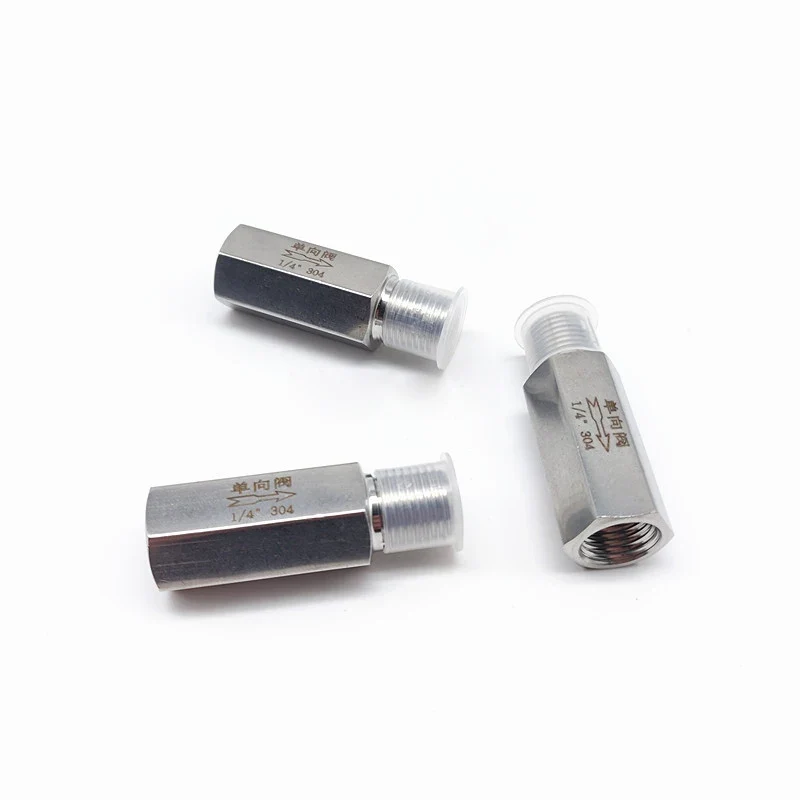

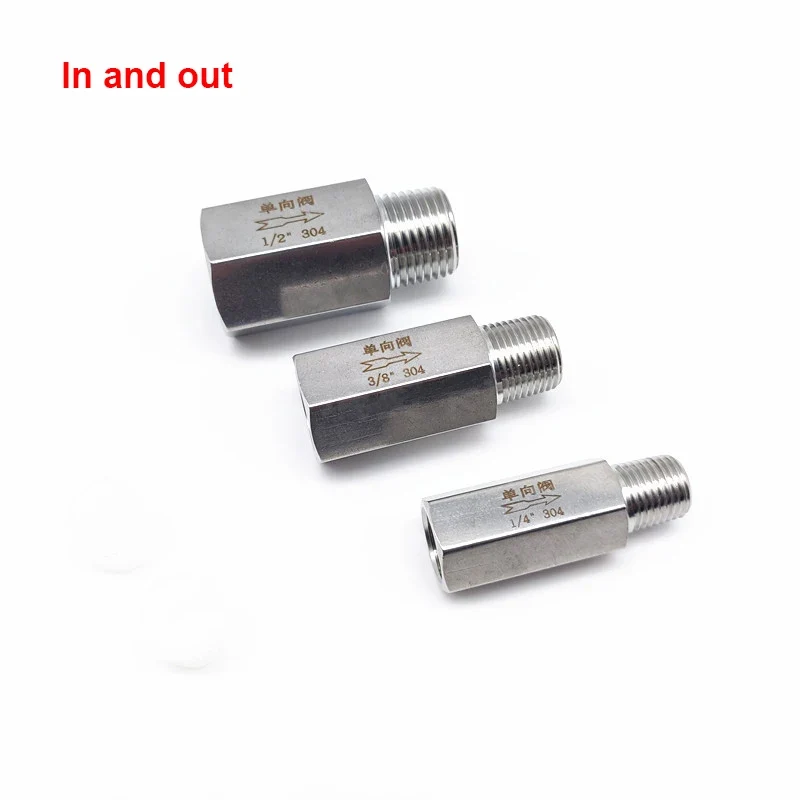

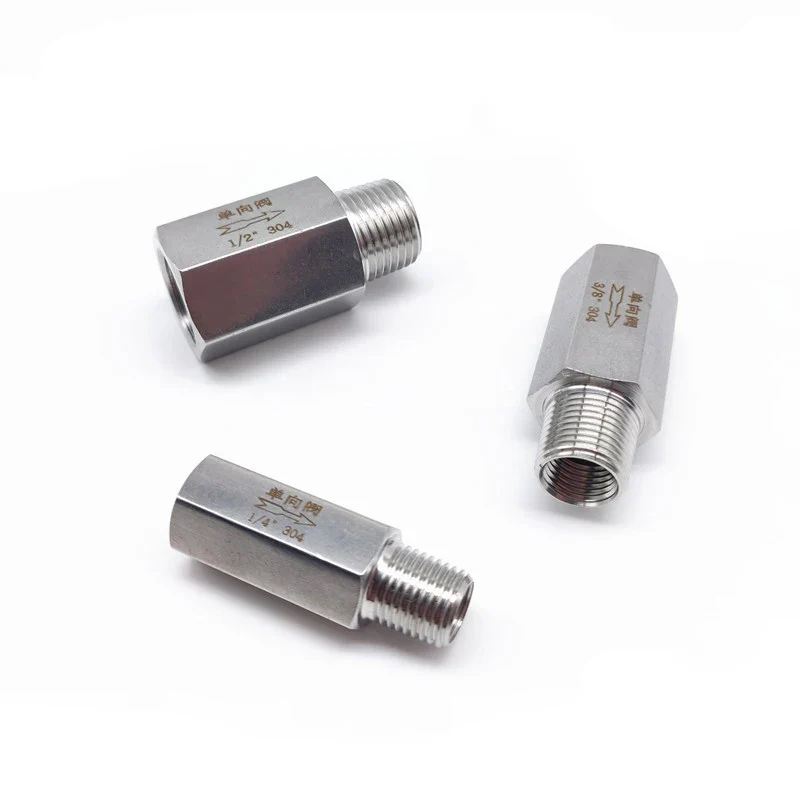

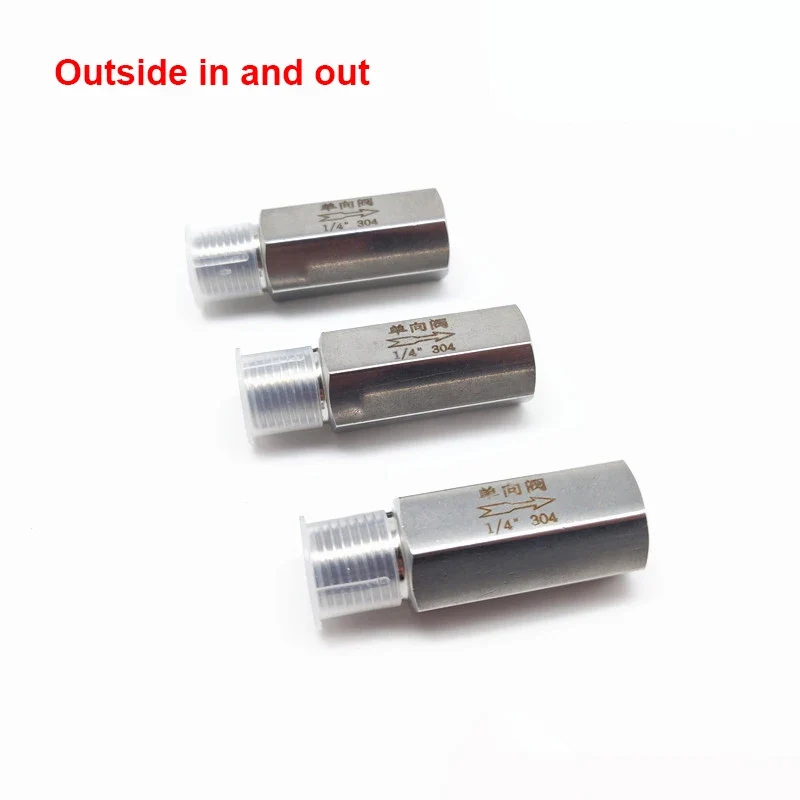

304 Stainless Steel Male to Female Thread One-Way Check Valve with Ball Structure 1/8" 1/4" 3/8" 1/2" 3/4" 1" Sizing Options

SPECIFICATIONS

Body material: Stainless steel

Maximum pressure: 1~2.5 Mpa

Medium temperature: -10℃~200℃

Opening pressure: 0.1MPa

Port Size: 1/8 in,1/4 in,3/8 in,1/2 in,3/4 in,1 in

Sealing Material: FKM

Type: Metal Check Valves

application: General

brand name: Acarps

customized support: OEM

media: water, oil, gas

model number: Stainless Steel One Way Valve

place of origin: Guangdong, China

power: Pneumatic/Hydraulic

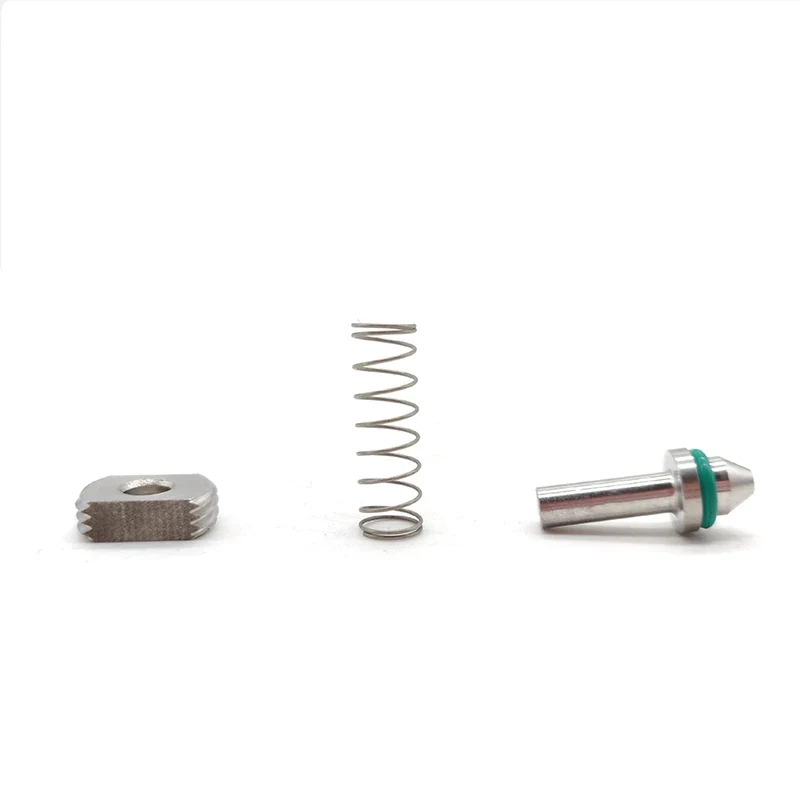

structure: Ball

temperature of media: Normal Temperature

warranty: 1 year

Products Description Product Name: Internal and External Threaded Check ValveSize: 1/8"(DN6),1/4"(DN8),3/8"(DN10),1/2"(DN15),3/4"(DN20),1"(DN25) (The 1/8-inch version is a split-type model) Connection: G Female Thread Material: 304 Stainless Steel
Opening pressure: 0.1Mpa
Maximum pressure: 1-2.5 Mpa
Medium temperature: -10℃~200℃
Suitable Media: Non-corrosive media such as oil, water and gas Product Description: The arrow marked on the valve body indicates
the direction of flow. Flow is blocked in the opposite direction.
