30-40m3/h Diesel Trailer Concrete Pump Concrete Pumping Machine for Price

SPECIFICATIONS

Brand Name: bailun

Core Components: Motor,Pump

Dimension(L*W*H): 4550x1830x1720mm

Machinery Test Report: Provided

Max. horizontal conveying distance: 200 meters

Max. vertical conveying distance: 120 m

Place of Origin: Hebei, China

Power Type: Diesel

Productivity: 30-40M³/H

UNIQUE SELLING POINT: High operating efficiency

Video outgoing-inspection: Provided

Warranty: 1 Year

Weight: 3200 kg

40m3/h Diesel trailer concrete delivery pump transfer pump for construction

SPEC. DETAILS

No.	ITEM	UNIT	BLM-CP30D	BLM-CP40D	BLM-CP50D
1	Processing Aggregate sizes	mm	≤30	≤30	≤40
2	Capacity	m³/h	15-18	20-25	30-40
3	Vertical transport distance	m	70mts	110mts	150mts
4	Horizontal transport distance	m	220mts	260mts	360mts
5	Material cylinder diameter	mm	140	1100	1200
6	cylinder stroke	mpa	800	160	180
7	Diesel engine power	kw	56	66	99
8	Dimension	mm	3640x1310x1680	3900x1650x1850	4100x1770x1850
9	Total Weight	kg	2000	3000	3500
10	Use condition		Size ≤30 Short Distance	Size ≤30 Long Distance	Big size   ≤40

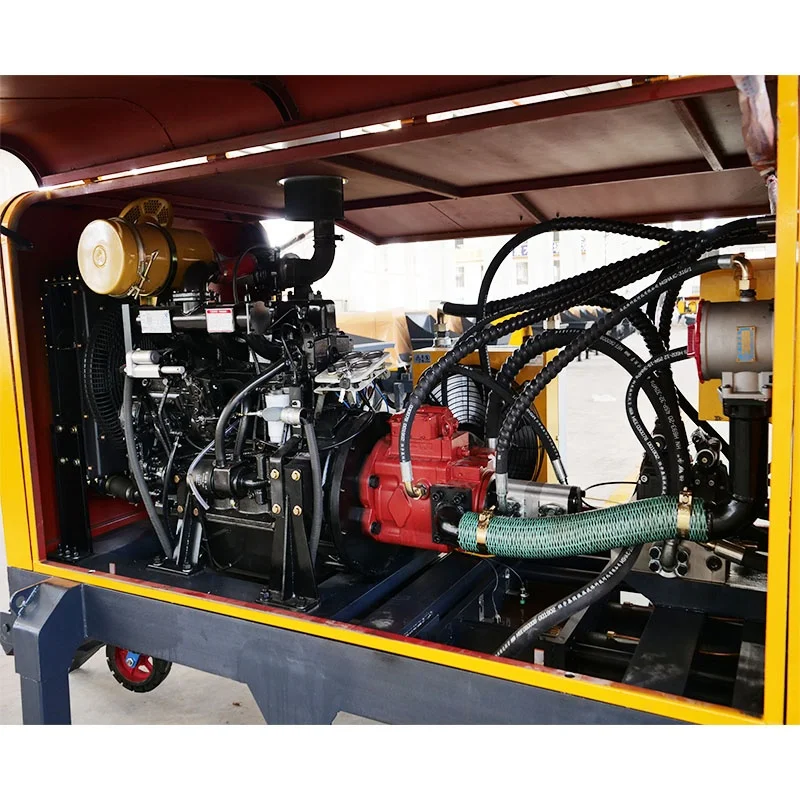

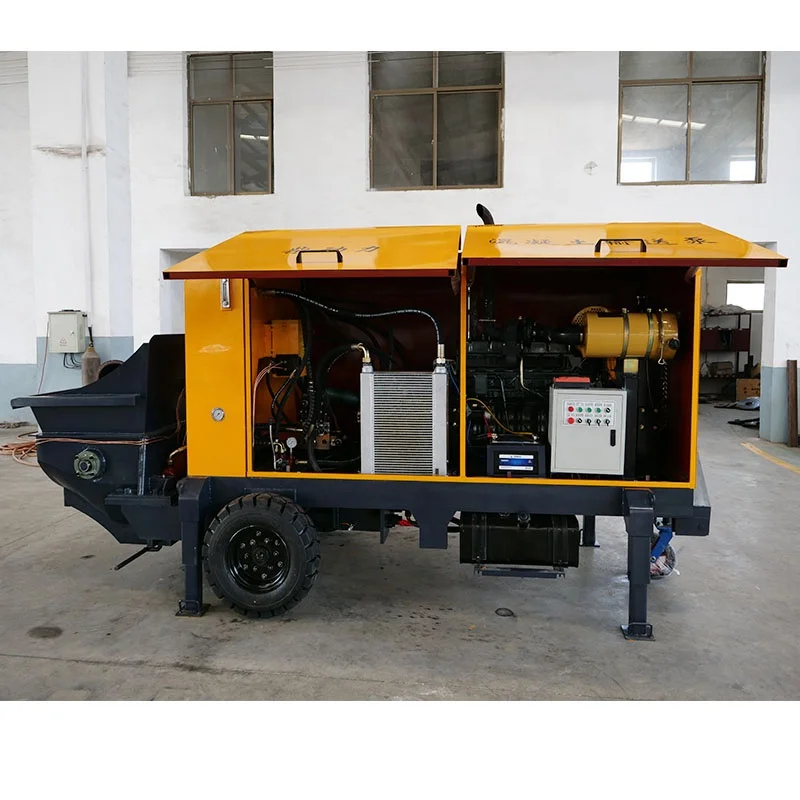

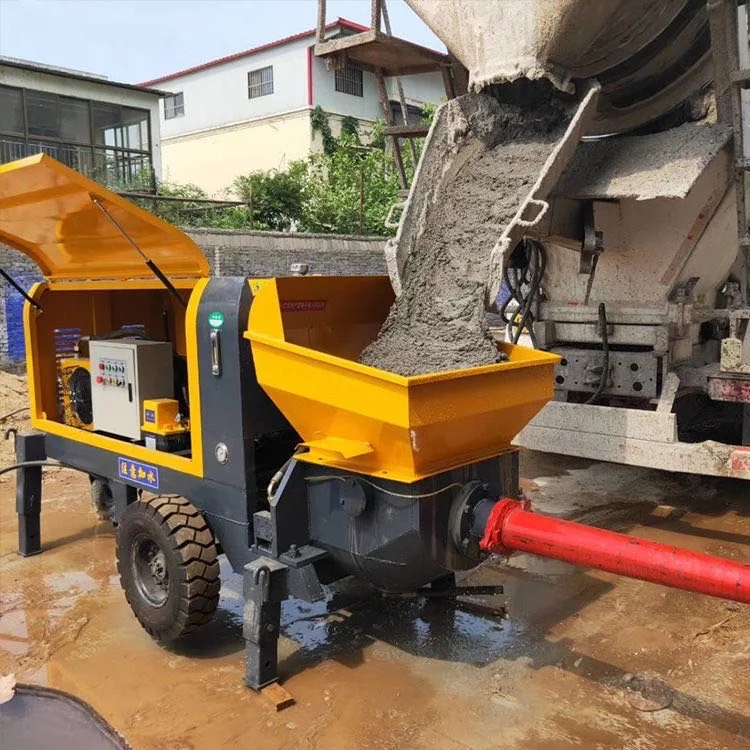

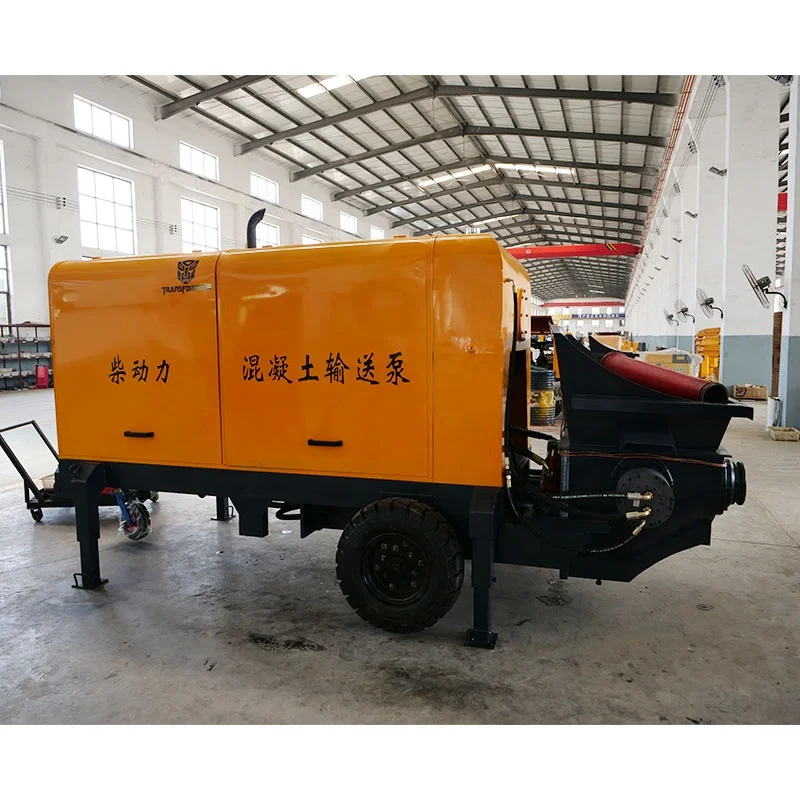

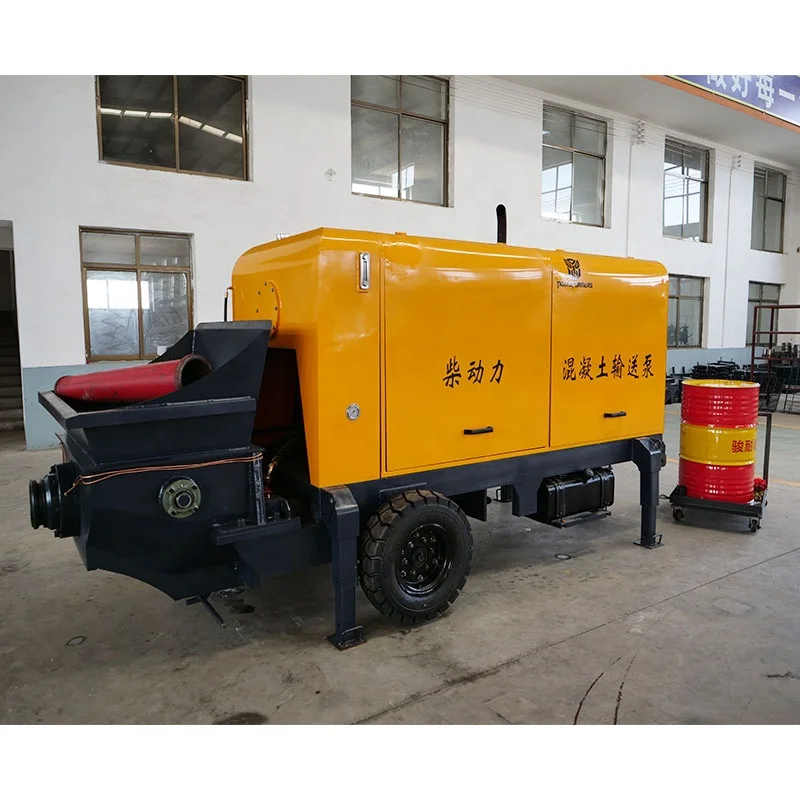

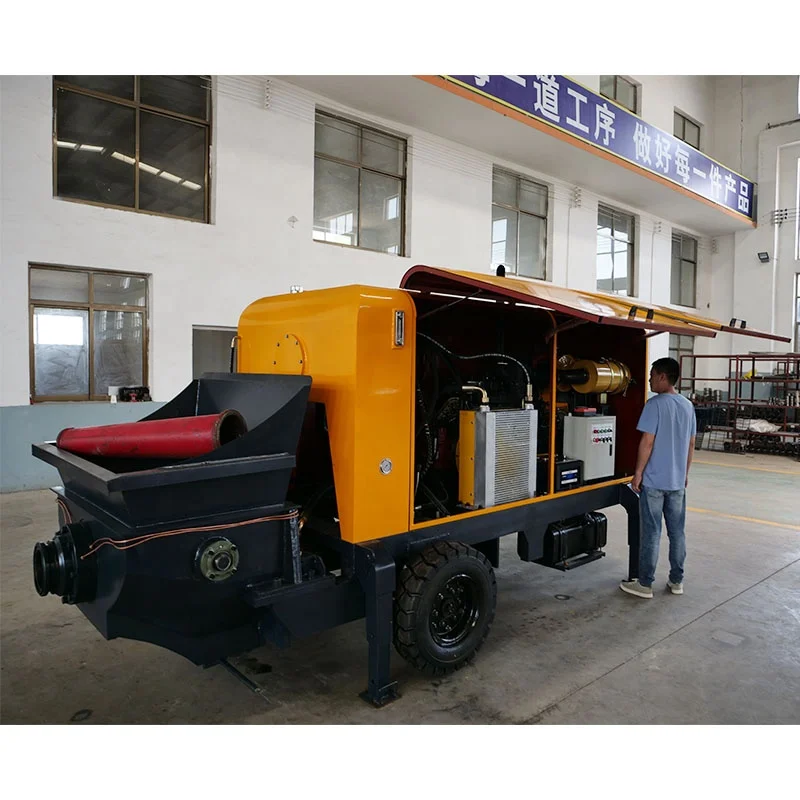

MACHINE DETAILS
