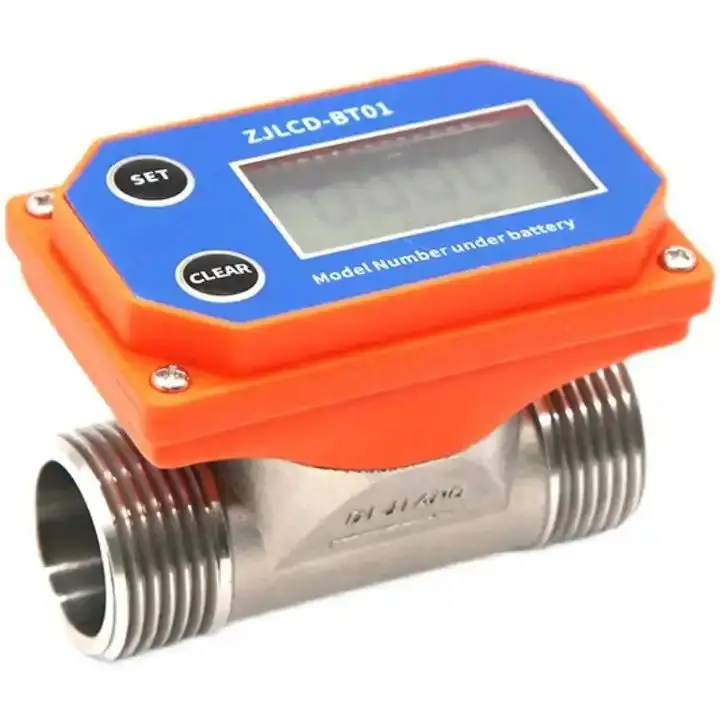

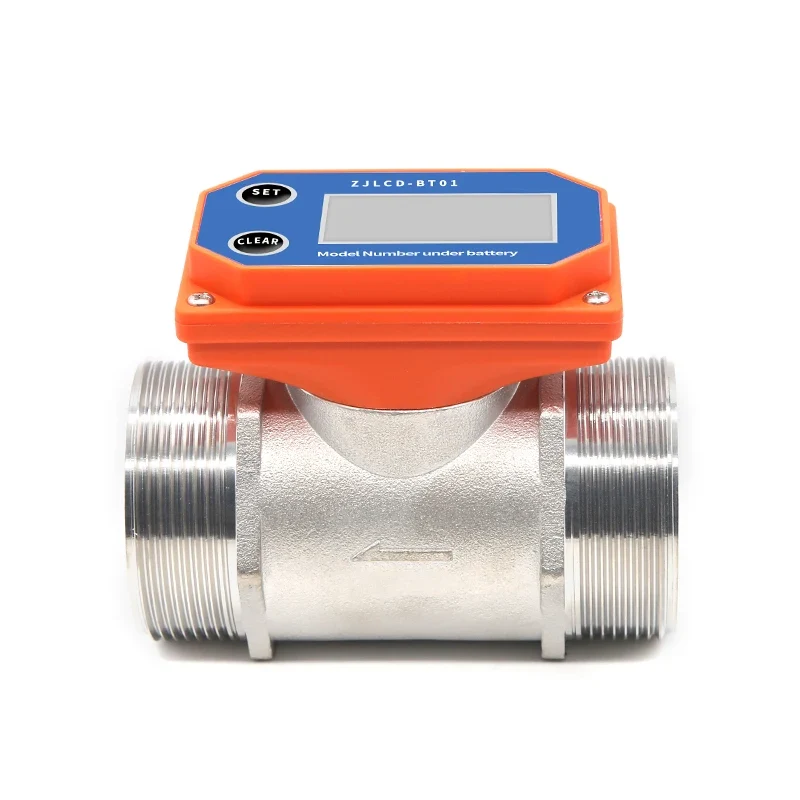

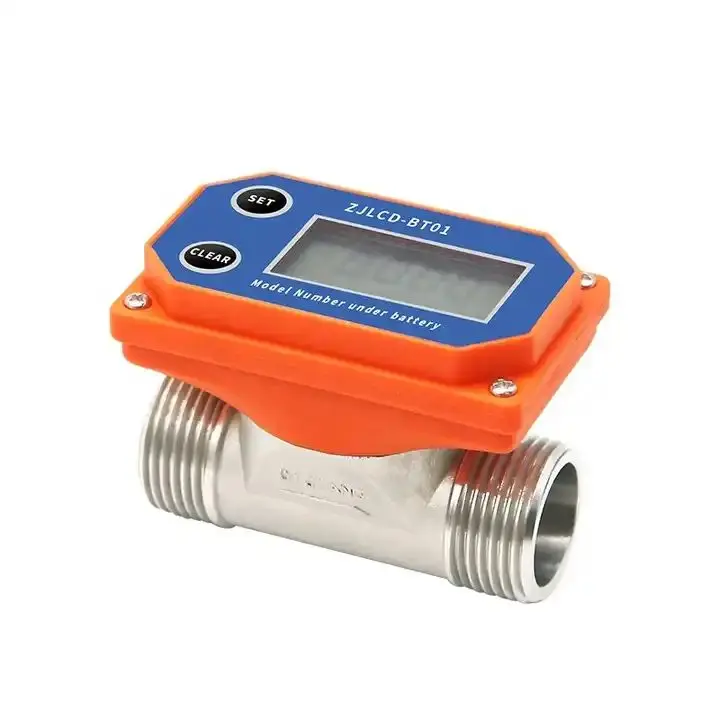

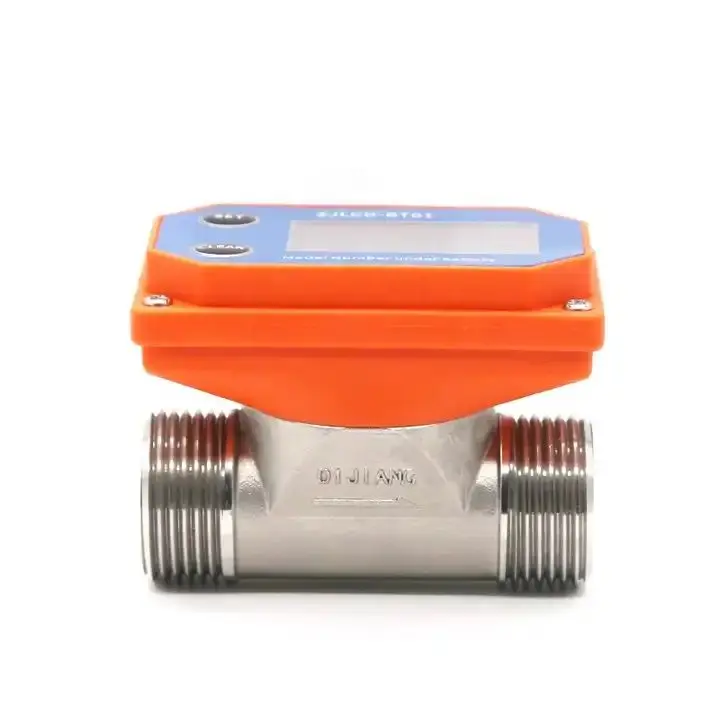

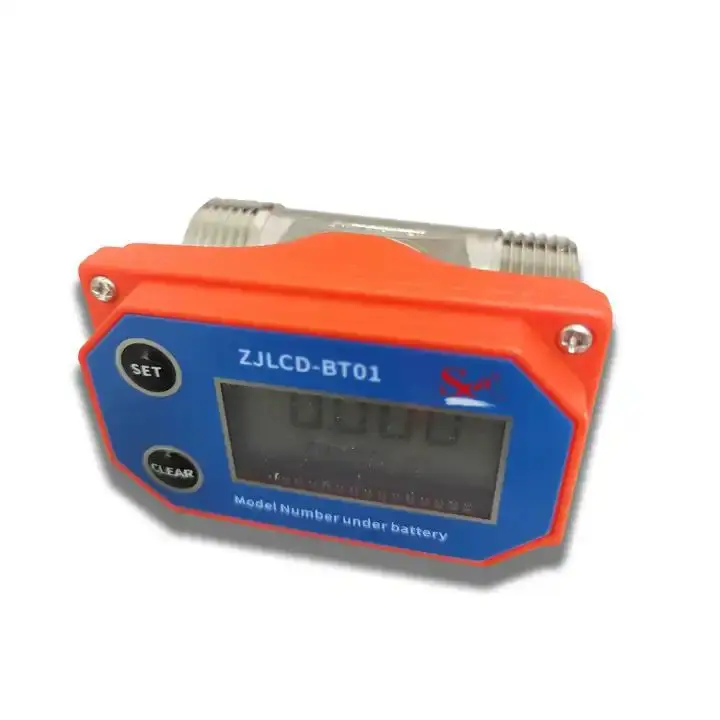

2" Dry Battery Stainless Steel Electronic Digital Display Flowmeter DN50 Water Flow Sensor for Farm/Garden Irrigation

SPECIFICATIONS

Cumulative count range: 0-999999

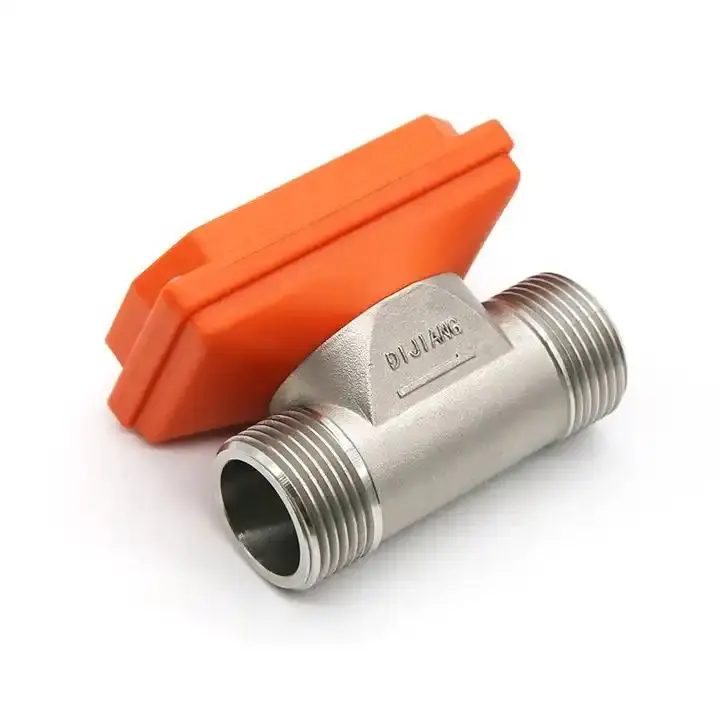

Material: Stainless steel valve body

Maximum working pressure: 20 Bar

Measurement accuracy: ±10%

Medium: water or liquid of similar concentration to water

Medium temperature: ≤100℃

Output Signal: NPN

Range of cumulative number of classes: 0-999999

Single count range: 0-9999.9

Working voltage range: DC2.3~3.3V

application: General

brand name: Acarps

customized support: OEM,ODM,OBM

media: Water

model number: ZJSUS-BT

place of origin: Guangdong, China

port size: 2 inch

power: Solenoid

structure: Water sensor

temperature of media: Normal Temperature

warranty: 1 year

Product Description

Technical Specifications

Turbine Electronic Flow Meter: 2"(DN50) Material: Stainless steel valve body Medium: water or liquid of similar concentration to water Flow range: 2" 60-1100L/min±10%
Flow pulse characteristics: 2" F=(0.12*Q)±5%; Q=L/min(level test) Measurement accuracy: ±10% Repeatability: ±0.5% Maximum working pressure: 20Bar Range of cumulative number of classes: 0-999999 Single count range: 0-9999.9 Cumulative count range: 0-999999 Units of Measurement: Liters/L, Gallons/GAL, Pints/PTS, Quarts/QTS Single measurement clear: CLEAR Notice:
1. The more you order, the more offers, please contact us

2. Package list: Flowmeter*1 (battery not included)
