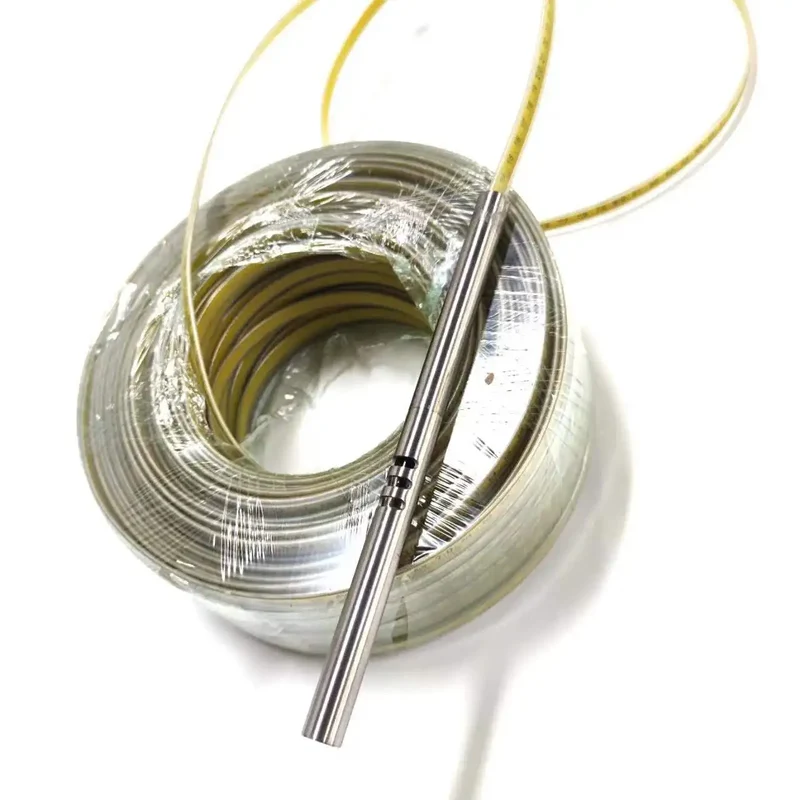

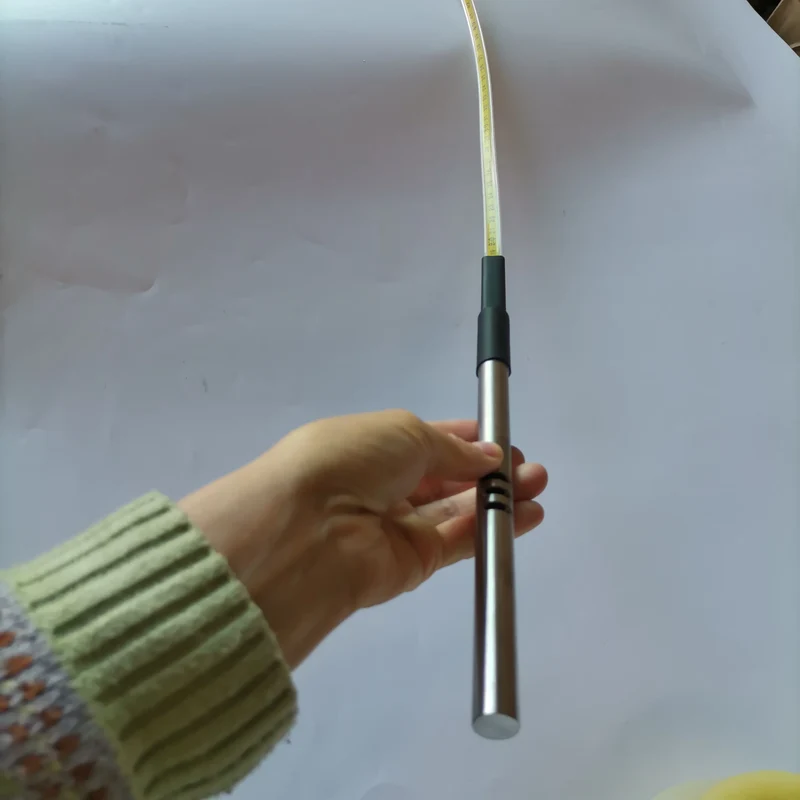

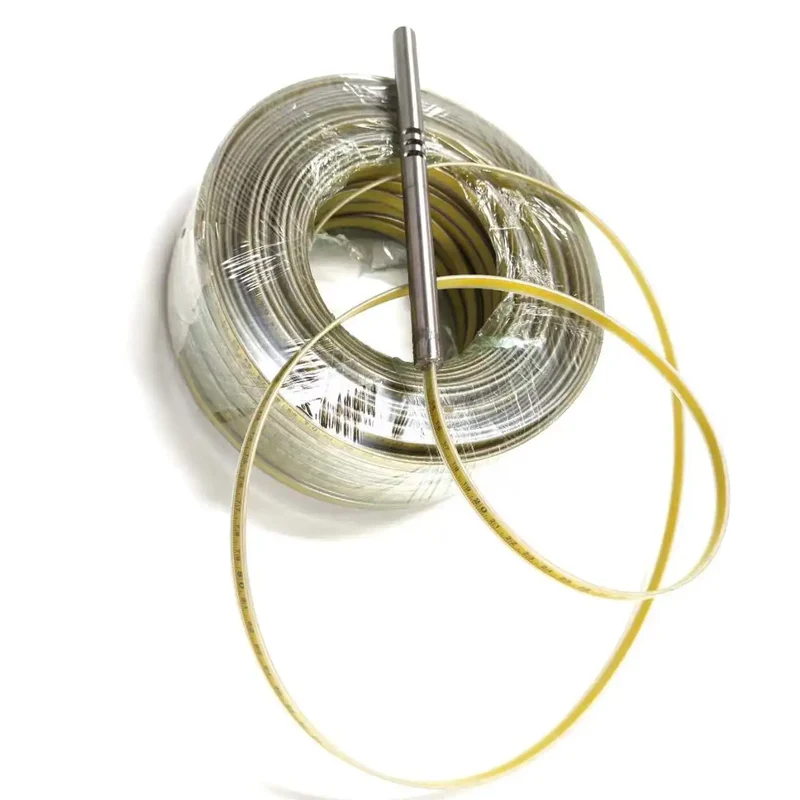

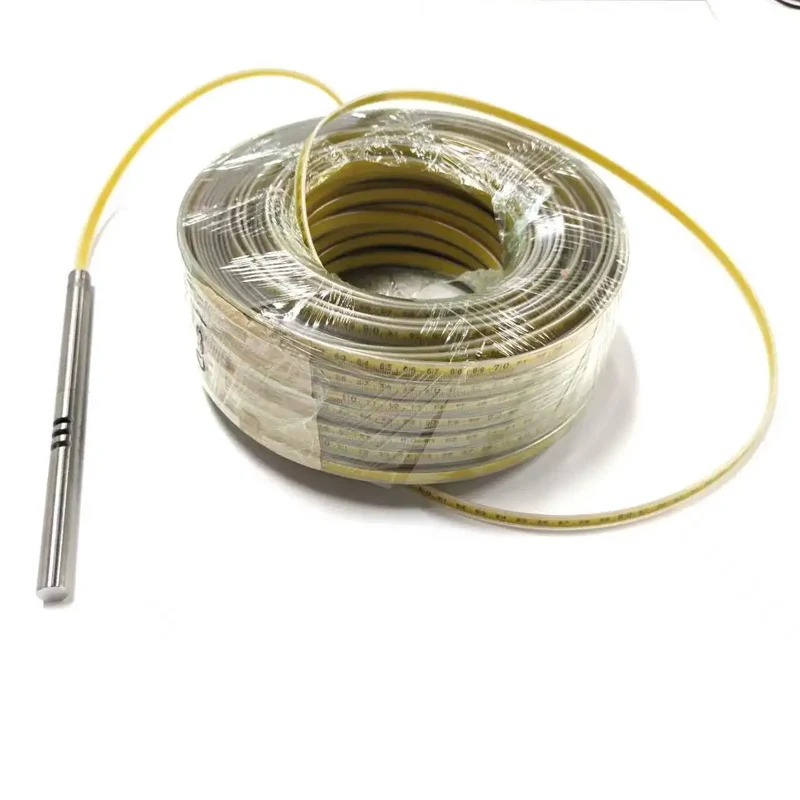

150m Well Depth Measurement Cable Ruler Water Level Meter Measuring Tape with 14mm Probe

SPECIFICATIONS

Application: Water level meter/dip meter

Brand Name: LANKA

Conductor: Fine oxygen-free copper wire

Conductor Material: Copper

Fire resistance: Following IEC60332-1

Insulation Material: PE

Insulation resistance: >200Mohm x Km

Jacket: PE/PU

Jacket color: Transparent

Lead time: 2 days

Length: 150m,50m 100m 150m 200m 300m

Model Number: LANKAR

Number of Conductors: 7

Outer jacket: High quality imported PE sheathed or PU sheath

Place of Origin: Shanghai, China

Product name: 150m well depth measurement cable ruler measuring tape with 14mm probe

Rated Voltage: 300V

Test voltage: 2000V

Product Description

Product Name	150m well depth measurement cable ruler water level measuring tape with 14mm probe
Conductor construction	Multi-strand fine oxygen-free copper wire following VDE0295 CLASS 5
Outer jacket	High quality imported PE sheathed or PU sheath
Jacket color	Transparent

Product Features


special characteristics 1.Provide an accurate method of measuring water level.Usually used for measuring Wells, drilling and water pipe water. 2.Good physical and chemical properties, oil resistance, chemical corrosion resistance, abrasion resistance,
3.resistance to hydrolysis and microbial resistance;good low temperature performance, working temperature 40 ℃ to + 90 ℃.
Technical Specification Hot sale high quality new steel ruler cable steel tape cable Ruler cable Steel ruler cable Ruler cable, High temperature resistant steel tape cable, widely used in water conservancy survey, the dam project, watermark detection, oil level measuring. Steel Ruler cable, providing us a accurate method of measuring the water level, typically used for measuring wells, drilling and water level tube water level, and also suitable for hydropower projects groundwater level observation and on dam manual inspection. Technical data 1).High accurately 2). High tensile strength 3).Very durable and tough 4). Non-stretch 5).Water proof 6).Oil and wear resistant

Copper Conductor	Tinned copper wire
Conductor size	7/0.2mm
Coating	PE
Width of Cable	9.8mm
Cable thickness	2mm

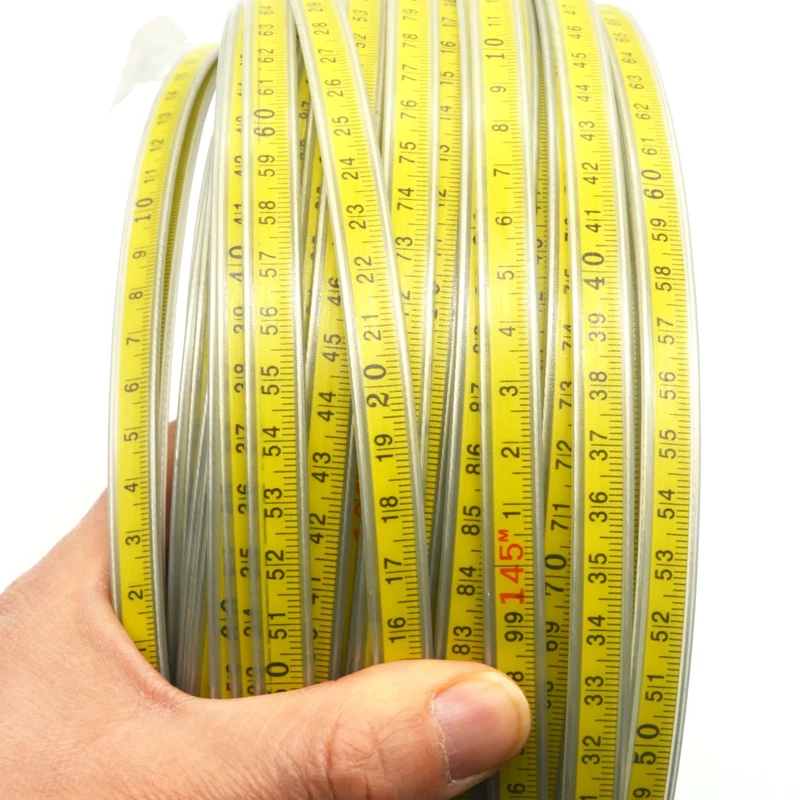

Scale	Metric scale
Working Temperature	-50 °C to +300 °C
Specification	0-30M,0-50M,0-100M,0-150M,0-200M,0-250M,0-300M,0-350M,0-400M,0-450M,0-500M

Application steel ruler cable are widely been used on the water dip level meter Company Profile Packing & Delivery FAQ
Q 1: I didn't find my needed model in this page.
Answer: Dear Friends, e-catalog will emailed to you asap when you contact with us. Also, we supply customization service. So,contact us !

Q 2: What's your Minimum Order Quantity?
Answer: Normally, 300m, but we also accept 100m order.

Q 3: When can I get the price and what's the validity?
Answer: usually within one day.Validity is 30 days

Q 4: What's your payment terms?
Answer: By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.

Q 5: What's your delivery time?
Answer: It depends on whether we just have the stock for your type. Or, it takes about 10 - 30 days for normal orders.

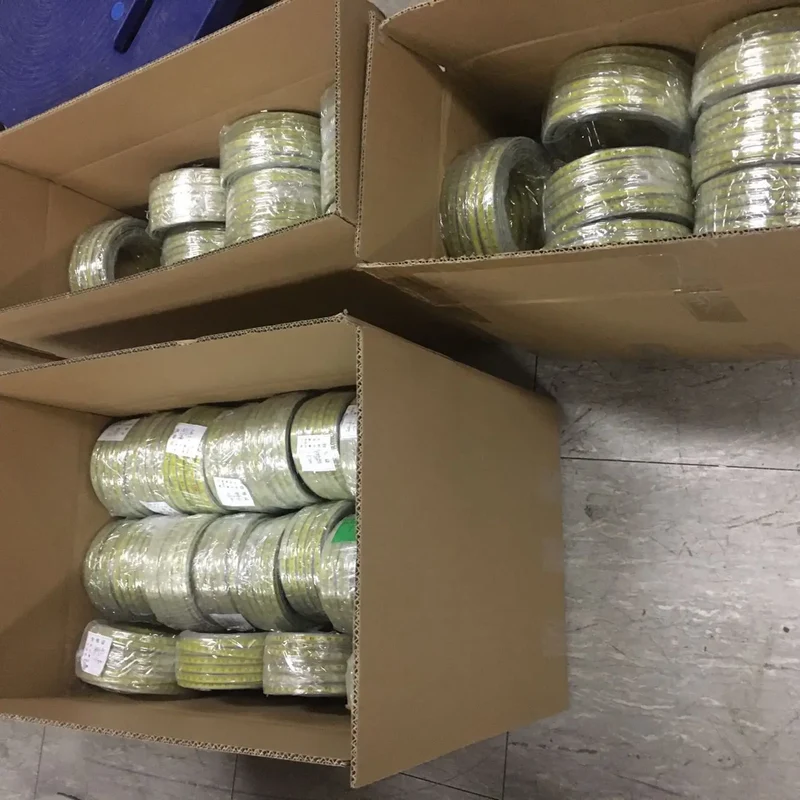

Q 6: What's your package method ?
Answer: Usually, cartons, and for big cable, we use wooden drum.
Any other questions please contact with us freely:)
