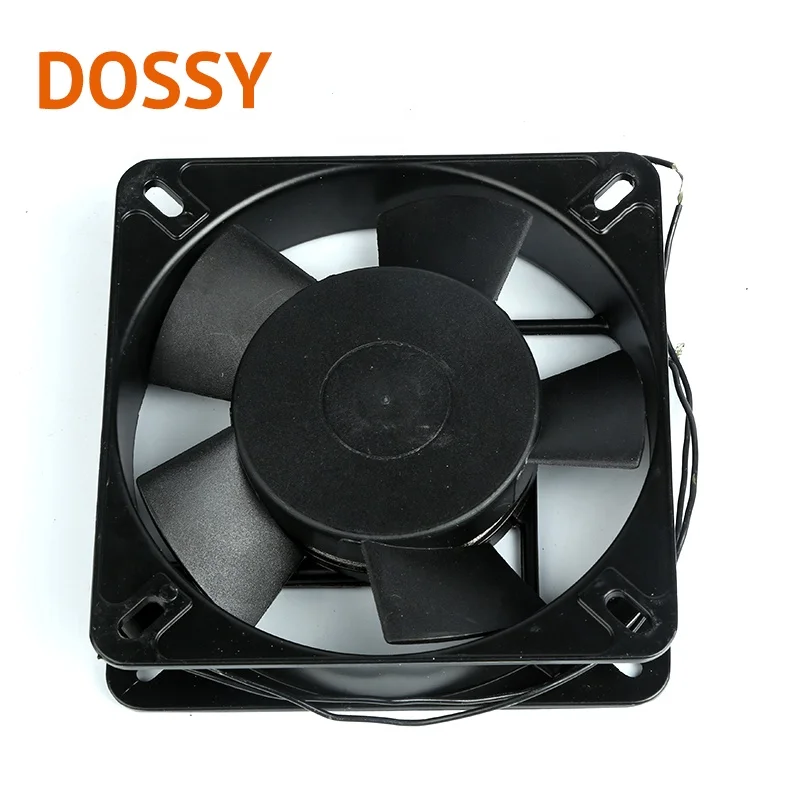

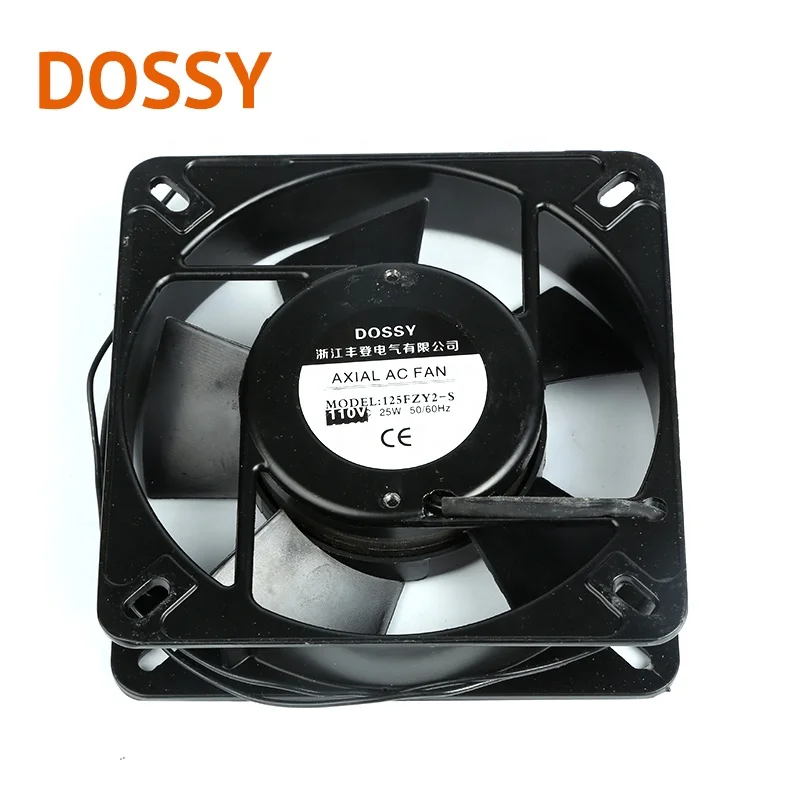

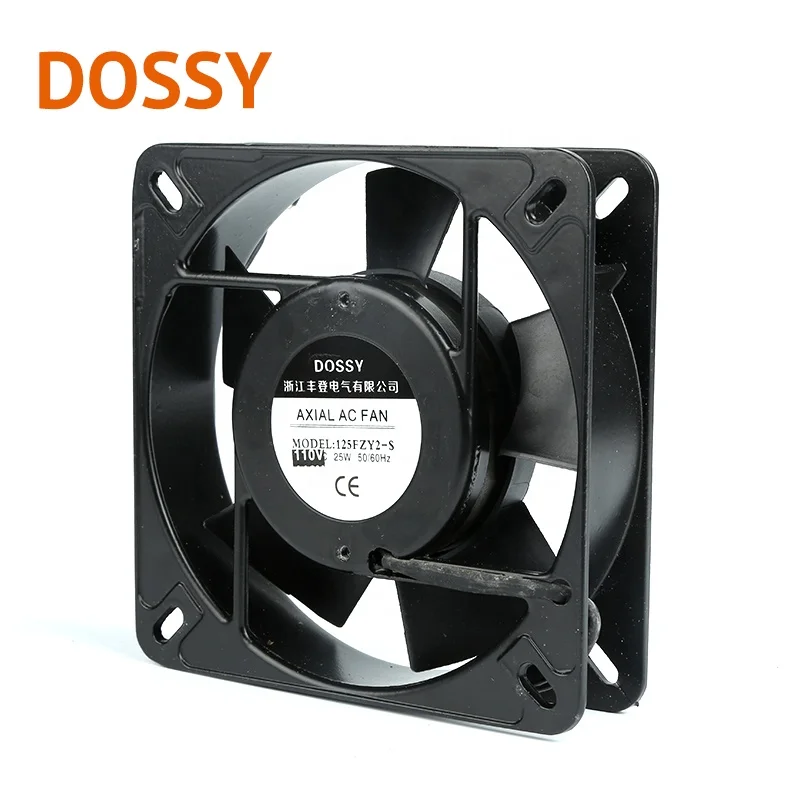

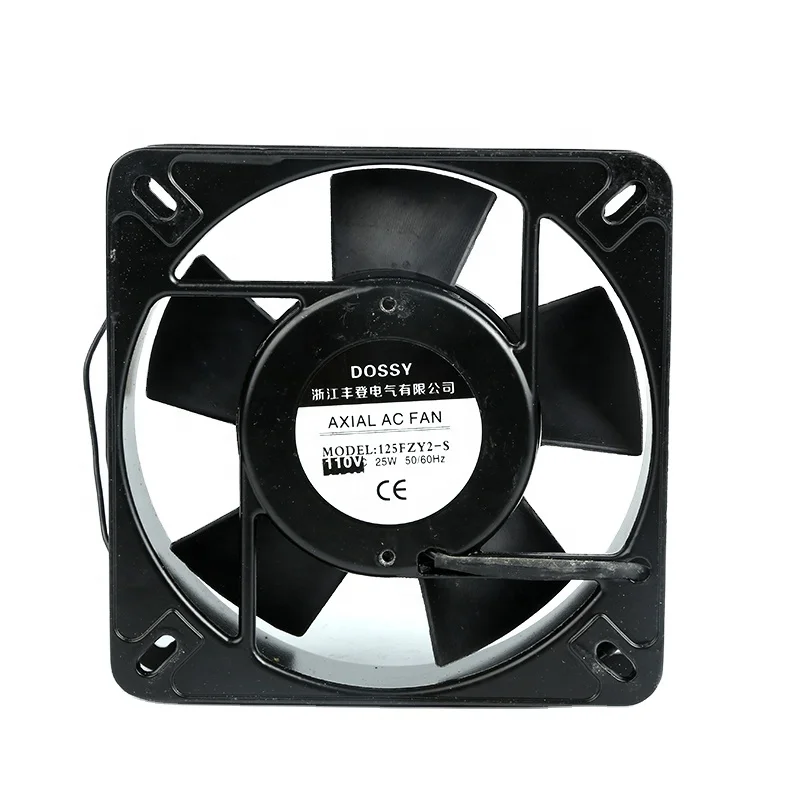

135x135x32mm 125FZY2-S 110V Sleeve-bearing Type Cooling Fan for Panel

SPECIFICATIONS

Blade Diameter: 5.4in

Certification: ce/RoHS/CCC

Current: 0.28A/0.14A/0.08A

Fan size: 135*135*32mm

Frame: Aluminum Alloy

Impeller Material: PBT Thermoplastic Black UL94-V

Label diameter: 45mm

Material: Aluminum alloy

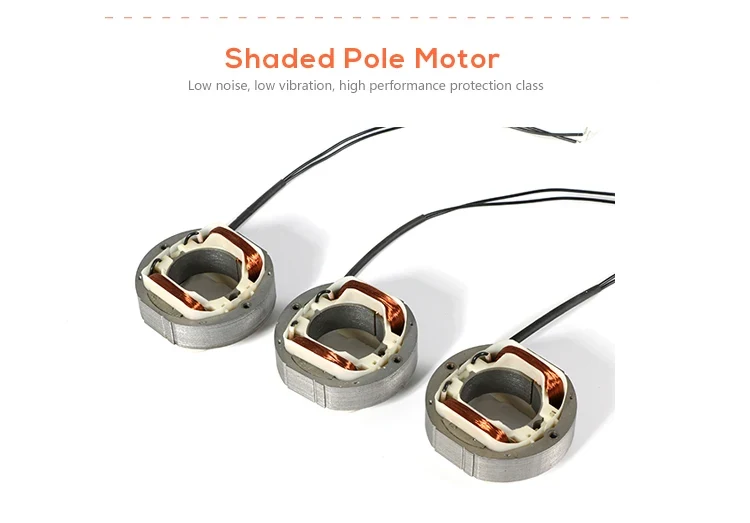

Motor: Shaded Pole Induction Motor

Power Source: Electric

Type: ac axial fan,Axial flow fan

Voltage: 110/220V/380V,110/220/380

after-sales service provided: Online support

bearing type: Sleeve Bearing

blade material: Plastic

brand name: DOSSY

customized support: OEM,ODM

model number: 125FZY1-S/110V

mounting type: Wall Fan

perating Temperature: -10C~+65C

place of origin: Zhejiang, China

speed: 2500 RPM

warranty: 1 Year

Product Description

 sleeve-bearing type axial cooling fan 135x135x32

Product name	Axial fan
Material	Aluminum Alloy Frame+Plastic Impeller
Delivery time	Quantity
Packaging	40pcs/carton
Size	135*135*32
Weight	24kg/ctn
OEM/ODM	Customization Service Provided

Product show

Factory Code	Model	Voltage	Current	Freq	Noise	Bearing	Power	Speed	Air volume		connector	Packing
		(V)	(A)	(HZ)	(Db)		(Watt)	(r/min)	(m3/h)	CFM		pcs/ctn	weight	dimension
AF13532S11L	125FZY1-S	110	0.28	50/60	45	sleeve	25	2500	168	98	wire	40	24kg	37*29.5*30
AF13532B11L	125FZY1-S	110	0.28	50/60	45	ball	25	2550	180	105		40	24kg	37*29.5*30
AF13532S22L	125FZY2-S	220	0.14	50/60	45	sleeve	25	2500	168	98		40	24kg	37*29.5*30
AF13532B22L	125FZY2-S	220	0.14	50/60	45	ball	25	2550	180	105		40	24kg	37*29.5*30
AF13532S38L	125FZY4-S	380	0.08	50/60	45	sleeve	25	2500	168	98		40	24kg	37*29.5*30
AF13532B38L	125FZY4-S	380	0.08	50/60	45	ball	25	2550	180	105		40	24kg	37*29.5*30

FAQ

Q1: Are you a factory or trading company ?

A1: Yes,We are the factory which have 15 years manufacture history.

Q2: What is DC Fan and AC fan?

A2: DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and72V.

AC fan is power by AC voltage,always is 110V,220V and 380V.

Q3: How to choose Fan?

A3:  To choose a Fan, you should consider the points below:

a. Fan size  b. Fan voltage   c. Fan speed

d. Fan bearing type ? ( Sleeve-bearing or Ball-bearing type?)

e. Fan power ( Wattage)  f. Fan airflow.

Q4: How long is the warranty?

A4: We Guarantee 1 years warranty.

Q5: What is the delivery time?

A5:  Sample lead time:3-5 days

Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)

Q6: Can you tell me the normal DC fan Model?

A6:  15*15*6mm  25*25*10mm  30*30*10mm  40*40*10mm  40*40*20mm  40*40*28mm 50*50*10mm  50*50*15mm  50*50*20mm  60*60*10mm 60*60*20mm 60*60*25mm  70*70*15mm 70*70*25mm   80*80*15mm   80*80*25mm 80*80*38mm 92*92*25mm

120*120*25mm 120*120*38mm   140*140*25mm  150*150*51mm 172*150*51mm

Q7: Can you tell me the normal AC fan Model?

A7:  80*80*25mm, 80*80*38mm, 92*92*25mm, 92*92*38mm,

110*110*25mm, 120*120*25mm, 120*120*38mm, 135*135*32mm

172*150*38mm,  172*150*51mm,  150*150*51mm,  172*172*51mm,

180*180*61mm, 200*200*60mm, 223*223*61mm,  230*200*65mm,

107*100*30mm, 150*160*60mm,  210*210*70mm  172*150*51mm 225*225*80mm,280*280*80mm, 250*410*90mm, 300*460*100mm,

200mm-600mm External Rotor fan,  130FLJ1 blower
