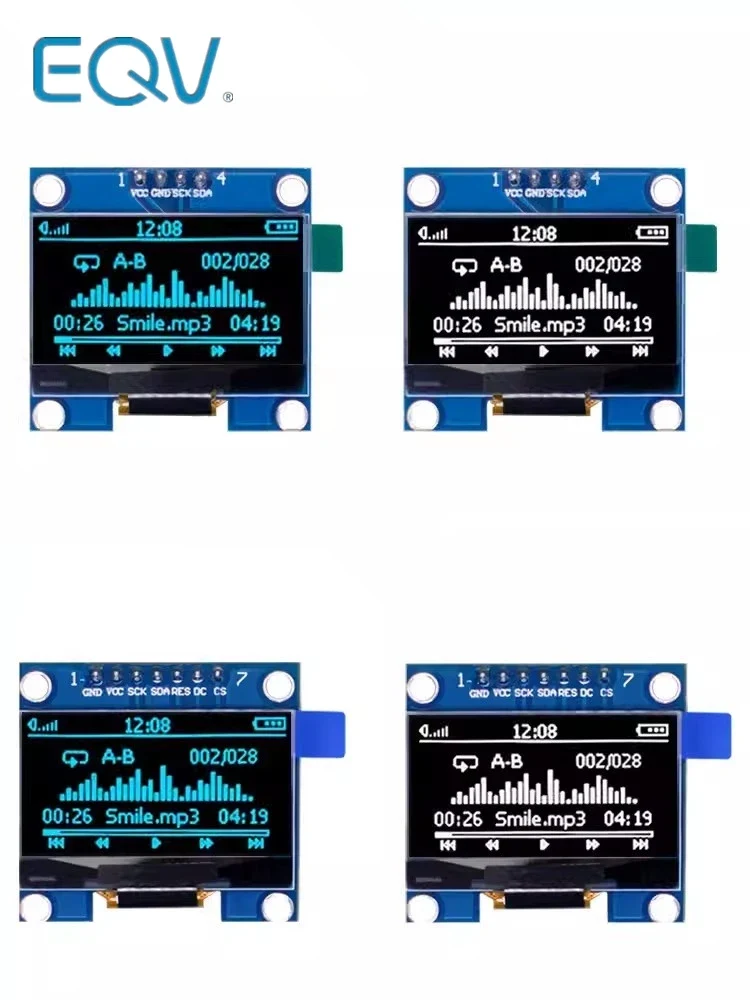

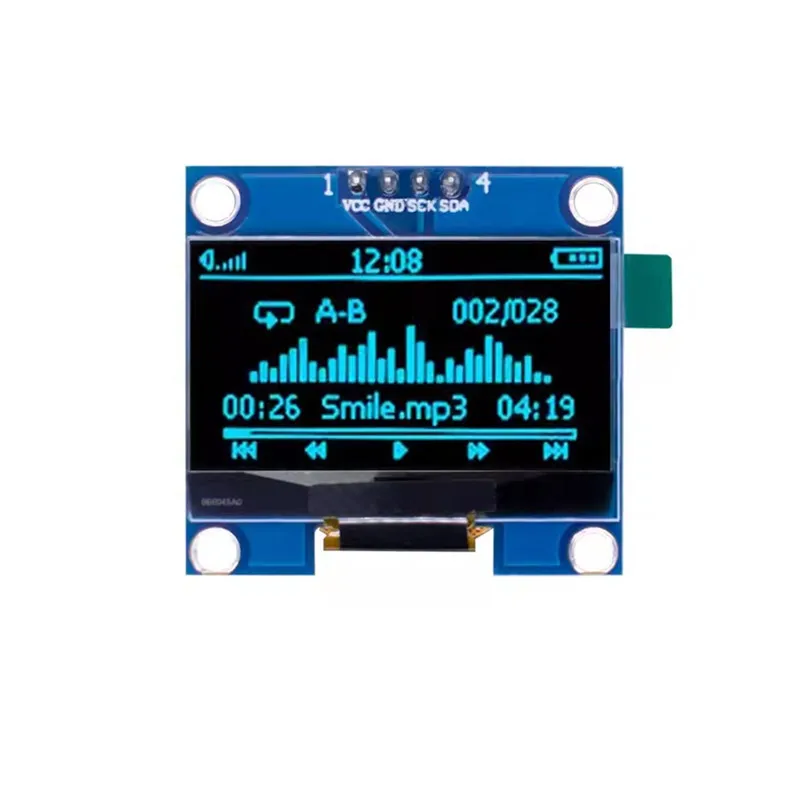

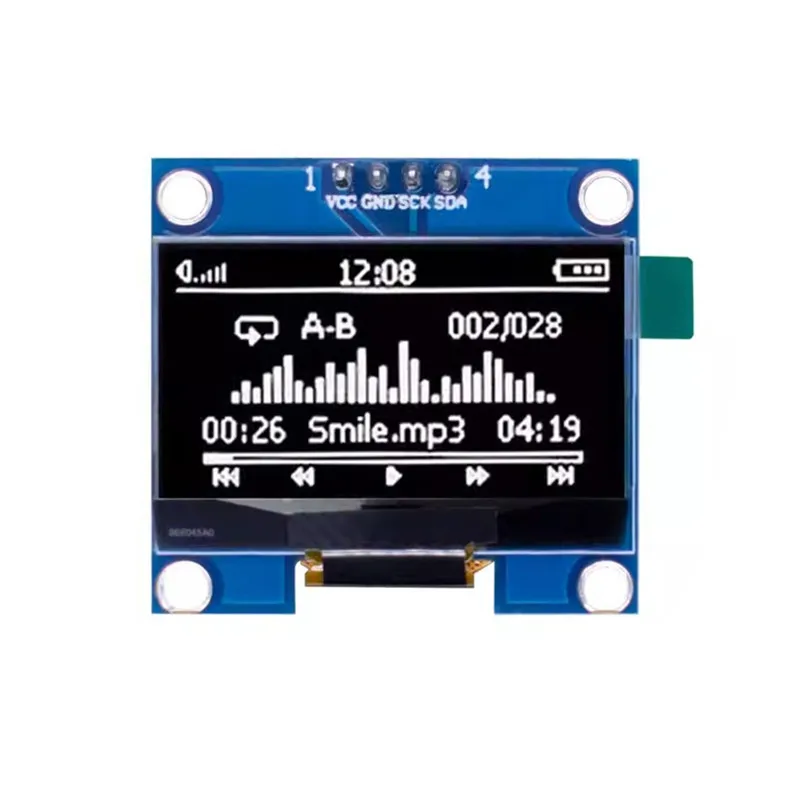

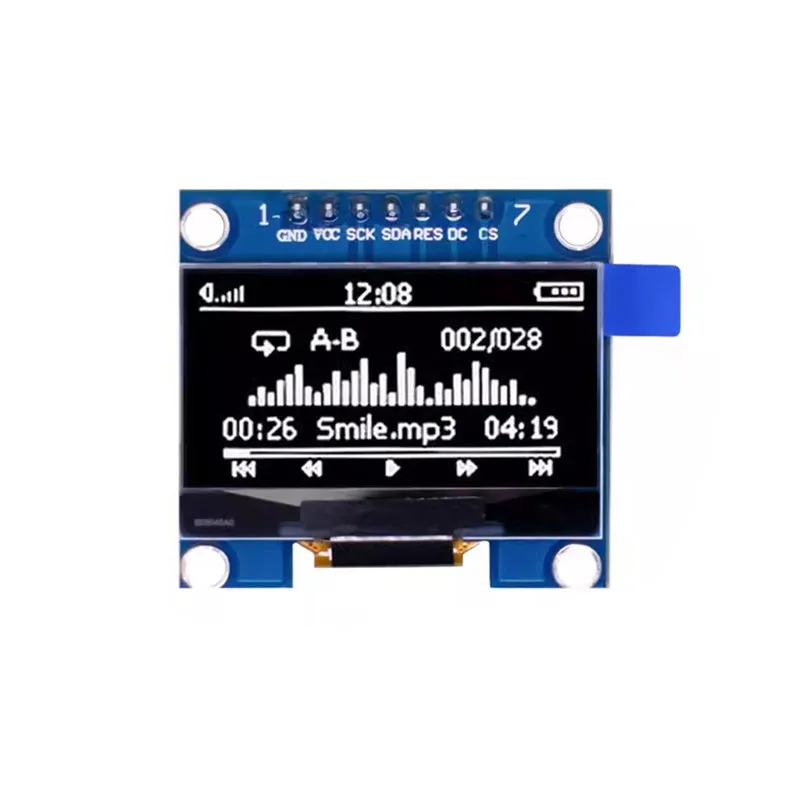

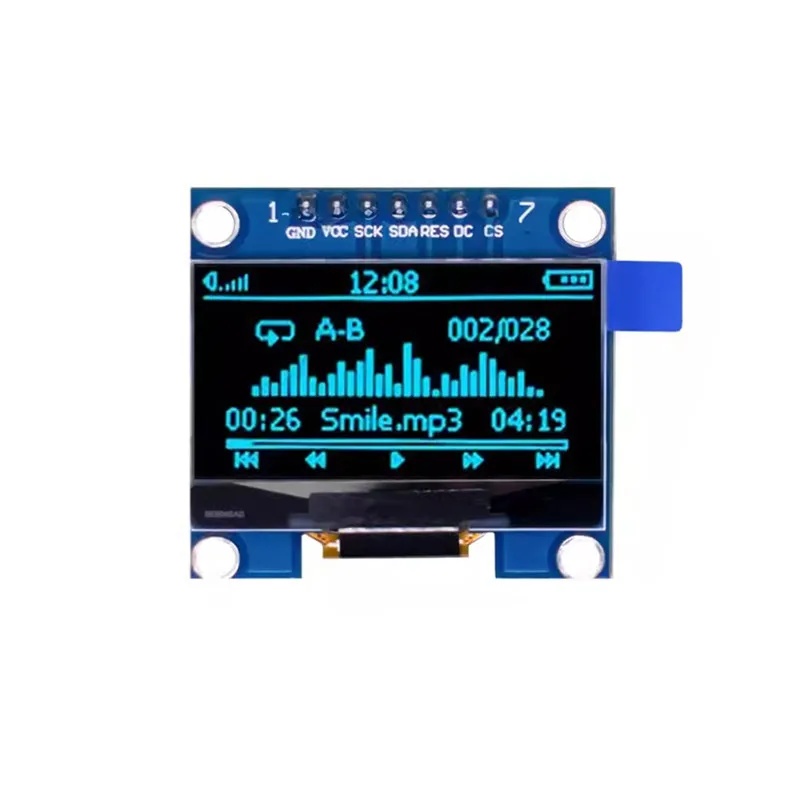

1.3 Inch Oled Module Witte Kleur 128X64 Oled Lcd Led Display Module 1.3 Iic I2C Spi Communiceren Voor Arduino Diy kit

10,12 €~~14,85 €~~31% OFF

2 in den letzten 5 Stunden verkauft

Color: 4P White

4P White7P Blue4P BLUE7P White

Noch 50,00 € bis zum kostenlosen Versand

Voraussichtliche Lieferzeit : 7. Oktober - 9. Oktober.

Garantiert sicher bezahlen

Beschreibung

Product Description

1.3-inch OLED, high resolution: 128X64 (same resolution as 12864, high PPI)
Super large viewing angle: greater than 160 °(the screen with the largest viewing angle in the display screen)
Ultra low power consumption: normal display 0.06w (far lower than TFT display)
Wide voltage supply (3V ~ 5V), compatible with 3.3V and 5V level logic, without level conversion chip
The default SPI interface (IIC interface can be changed), only 5 IOS are needed to light up easily
The working temperature range is industrial grade (- 20 ℃ ~ 70 ℃)
Military grade process standard, long-term stable work
Provide rich routines, provide the underlying driver technical support

Product Parameters

Name	Parameter
Display Color	white/blue
SKU	MSP130W / MSP130B
Screen Size	1.3(inch)
Screen Type	OLED
Driver IC	SH1106
Resolution	128*64 (Pixel)
Module Interface	4-wire SPI interface
Active Area	29.42x14.7(mm)
Module PCB Size	33.50x35.40(mm)
Operating Voltage	3.3V~5V
Logic IO port voltage	3.3V(TTL)
Power Consumption	TBD
Rough Weight(Package containing)	10(g)

Interface Definition

Module Pin	Pin description
GND	OLED power ground
VCC	OLED power positive (3.3V~5V)
CLK	SPI bus clock signal of OLED display module
MOSI	SPI bus write data signal of OLED display module
RES	Reset control signal of OLED display module
DC	Command / data selection control signal of OLED display module
CS	Chip selection control signal of OLED display module

Product Description

1.3 inch OLED screen with black and white or black and blue color display
128x64 resolution for clear display and high contrast
Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display)
Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip required
With IIC bus, only a few IOs can be used to light up the display
Ultra-low power consumption: normal display is only 0.06W (far below the TFT display)
Military-grade process standards, long-term stable work
Provides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platforms
Provide underlying driver technical support

Product Parameters

Name	Parameter
Display Color	white/blue
SKU	MC130GW/MC130GB
Screen Size	1.3(inch)
Screen Type	OLED
Driver IC	SH1106
Resolution	128*64 (Pixel)
Module Interface	IIC interface
Active Area	29.42x14.7(mm)
Touch Screen Type	have no touch screen
Touch IC	have no IC
Module PCB Size	33.50x35.40(mm)
Visual Angle	>160°
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	3.3V~5V
Power Consumption	TBD
Rough Weight(Package containing)	10(g)

Interface Definition

NOTE:

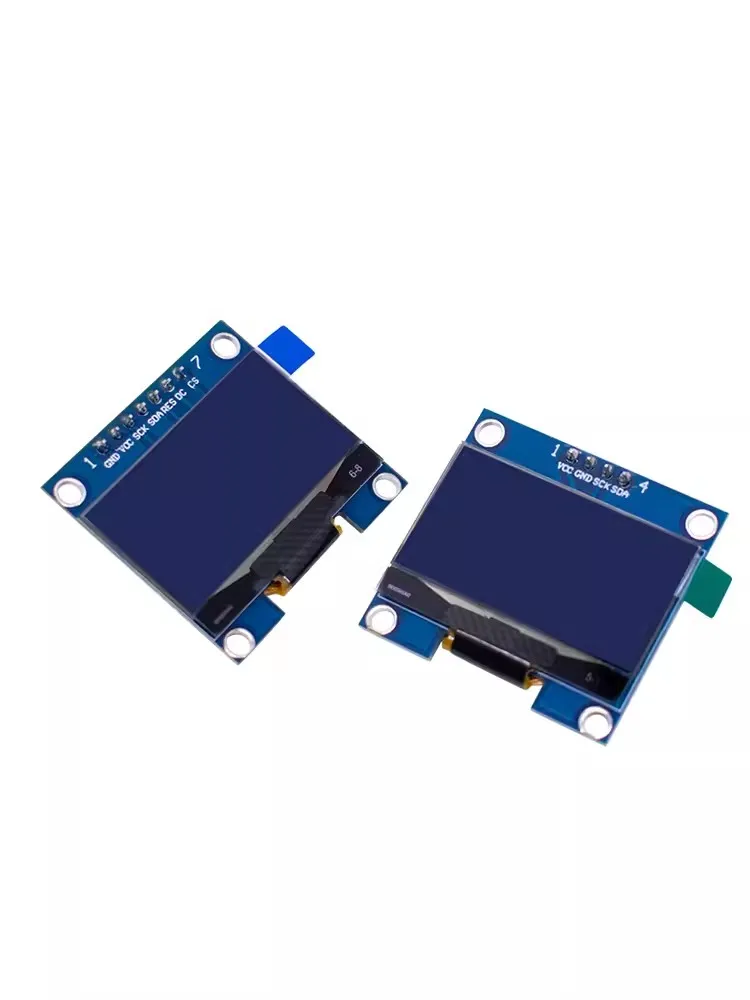

1.This module supports IIC slave device address switching (shown in red box in Picture 4), as follows:A.Solder the 0x78 side resistance, disconnect the 0x7A side, then select the 0x78 slave address (default);B.Solder the 0x7A side resistance, disconnect the 0x78 side, then select the 0x7A slave address;2.The hardware switches the IIC slave device address, and the software also needs to be modified accordingly.For details, see the test program description document or the user manual..
