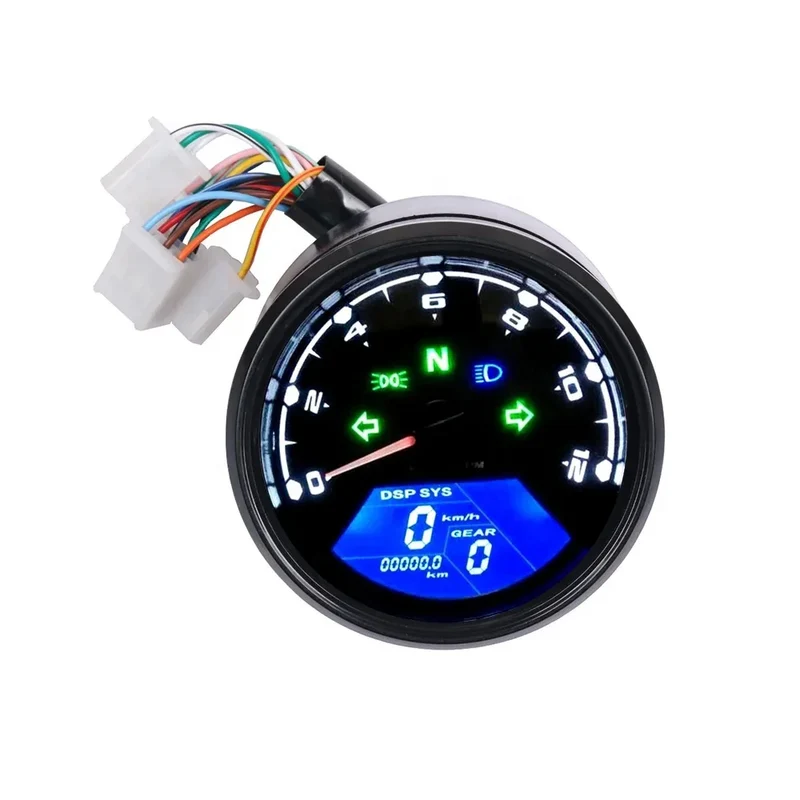

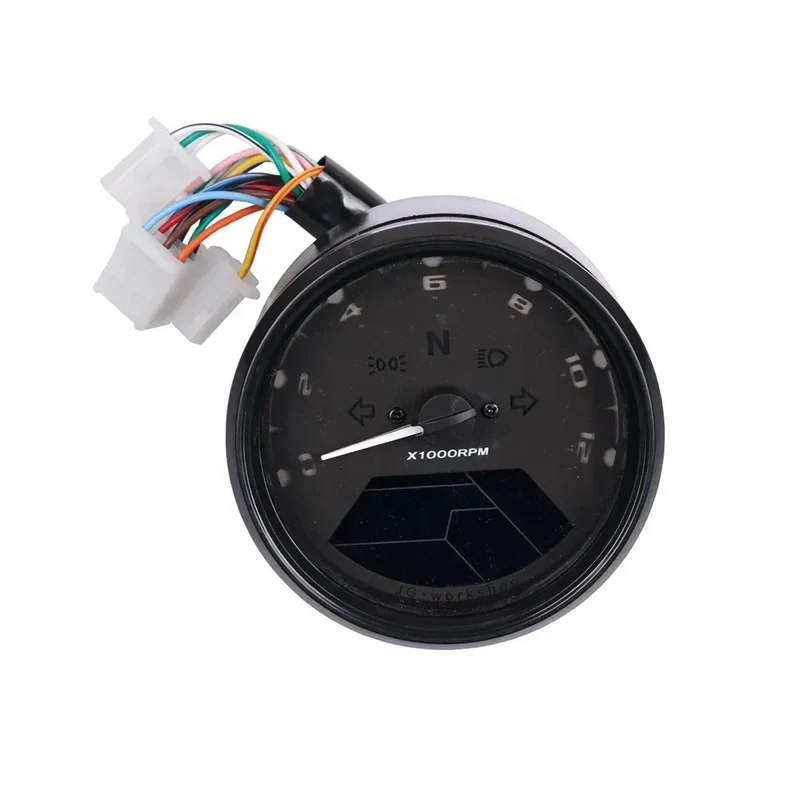

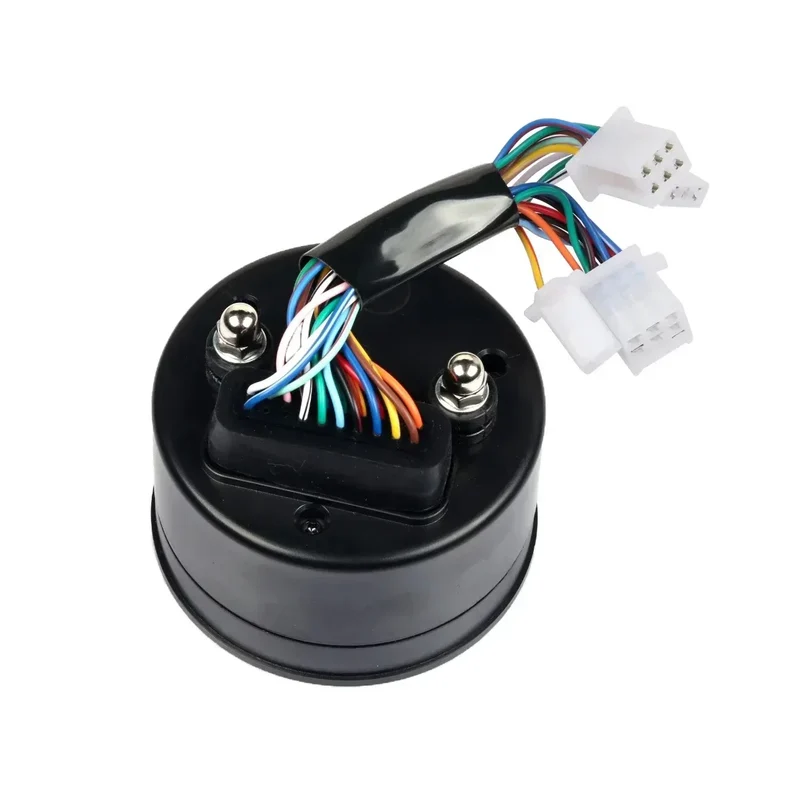

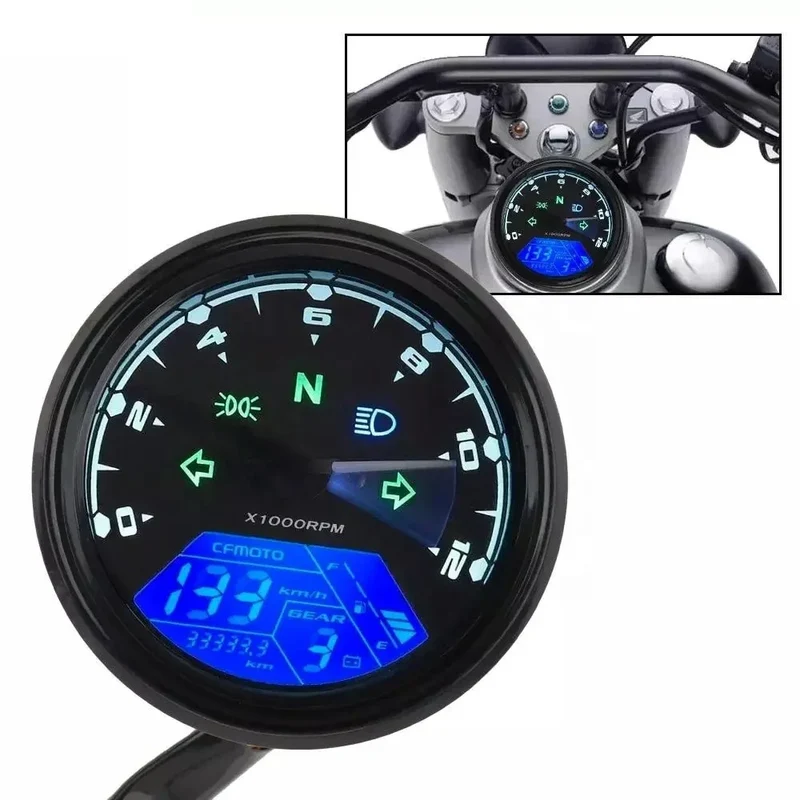

12V Motorcycle Speedometer Tachometer Fuel Meter Dashboard Gauges Dial Odometer LCD Digital Indicator Moto Accessories Universal

SPECIFICATIONS

Brand Name: FOCAN

Place of Origin: Jiangsu, China

Warranty: 6months

Product Description

 Features:
* 100% Brand new and good quality

* Large anti -UV & Anti-glare LCD screen

* All-in-one design with digital signal processing system

* Using chip technology for most of the components

* Multiple indicator functions as the L/R Turn Signal, High Beam, Position Lights, N Lights

* High withstand voltage up to 100V


* Waterproof & Anti-vibration

* Fits for most motorcycle that is with 4 stroke, 2 / 4 Cylinders (default as 1 cylinder of the setting)

* Please allow 1-2 cm difference due to manual measurement.

* Please check size to make sure the fitment before bidding. Thank you.

* Our digital images are as accurate as possible. However, different monitors may cause colors to vary slightly.


Specifications:
* Working voltage : 8-18V

* Rated voltage: DC 12V

* Working temperature: -20 - +70℃

* Storage temperature: -30 - +80 ℃

* Digital display speed range: 0-199km/h (error +10%)

* Needle display rpm range: 0-12000rpm (error +5%)


* Digital display odo distance range: 0-99999.9km

* Gear indicator: 1- 6

* Backlight: BlueInstallation diameter: 9cm

* Height: 5.3cm

* Cable Length: 12cm


Note:
* No friction or contact between the hall probe and the magnet

* Engine
rotate speed comes from the ignition signal. The sensor wire is
normally contacted with the positive side of the magnetor or directly
wired on the rectifier

* Oil Mass can be wired on the original sensor

* Do
NOT wired on the headlight if it had been modified as the HID Xenon
light. Instead, connect it on the headlight control wiring


Package Included:
* 1x motorcycle speedometer
