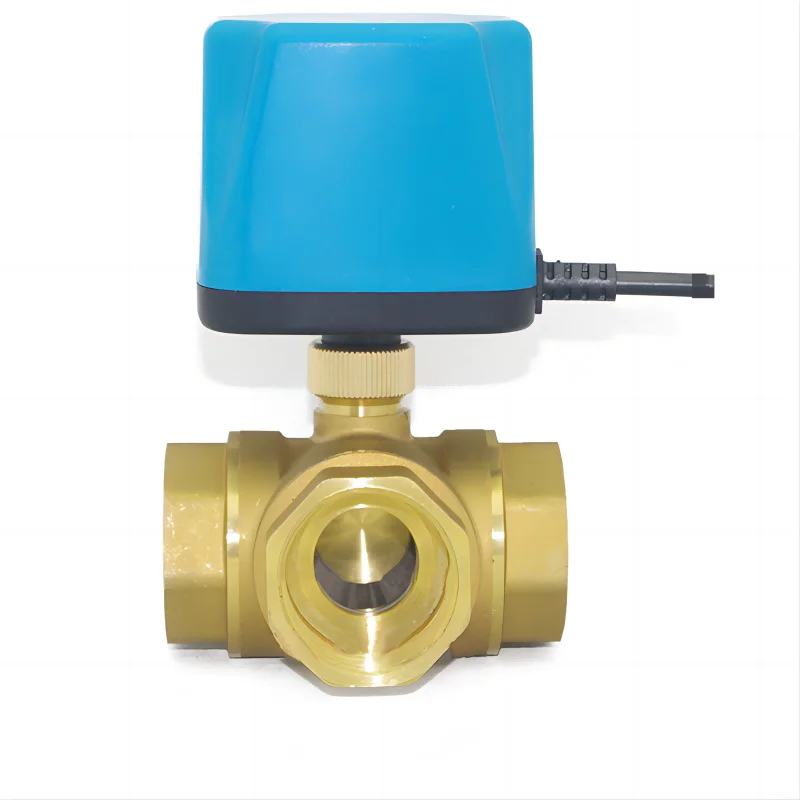

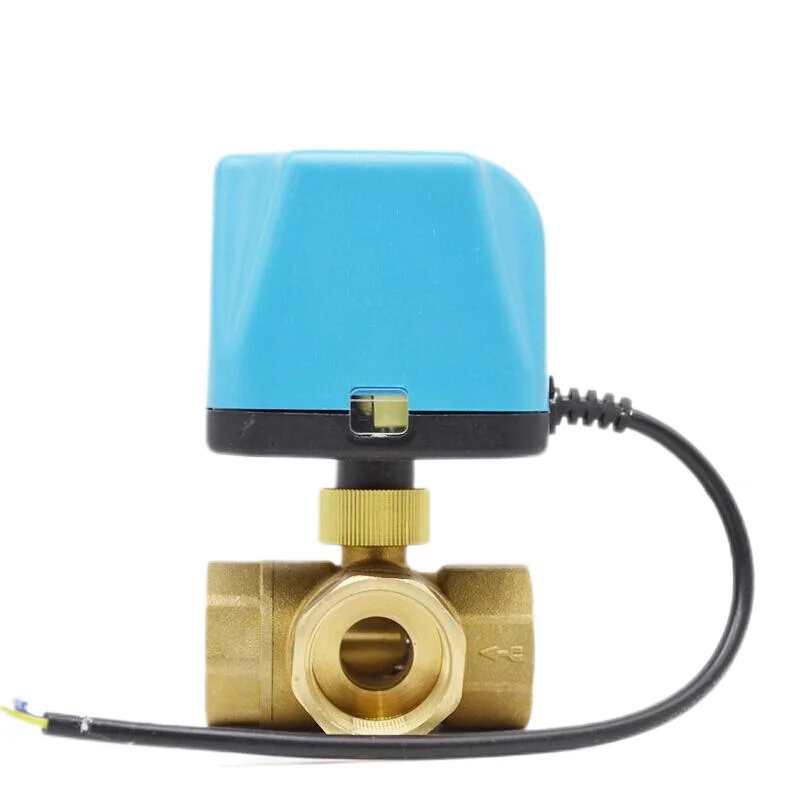

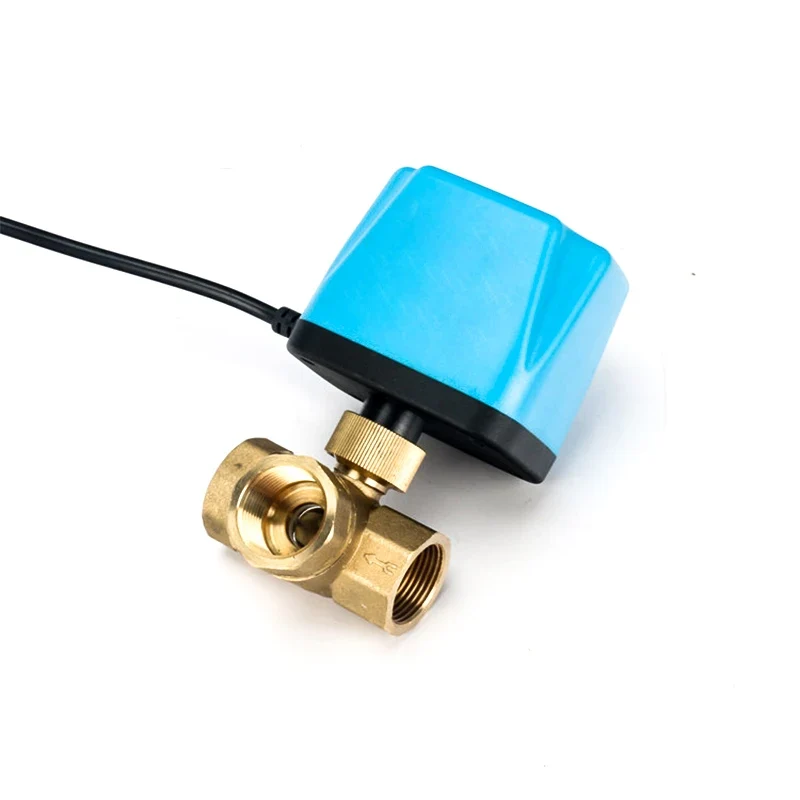

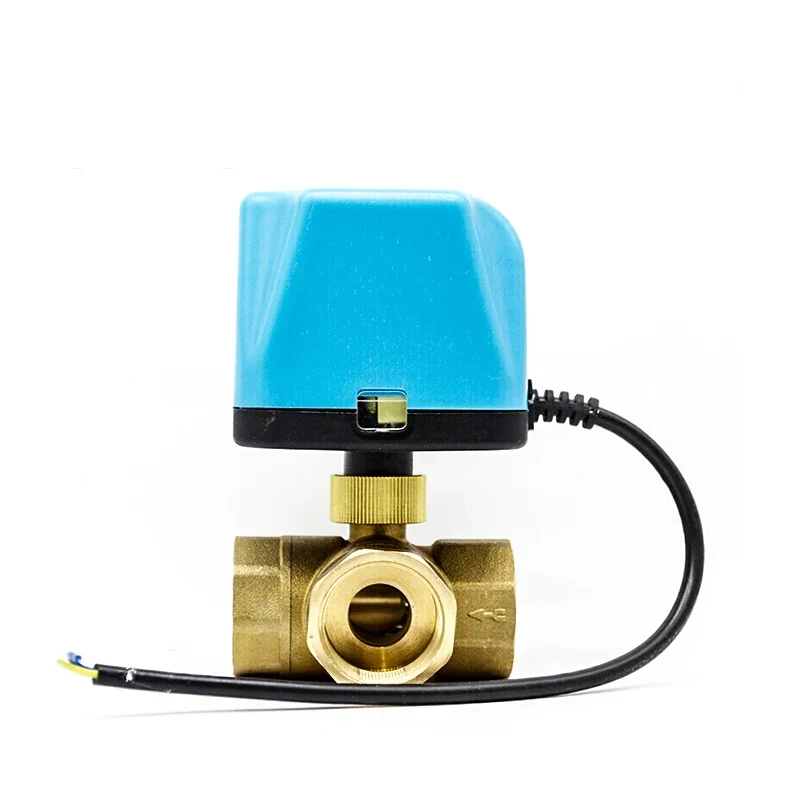

1/2" to 2" Three Way Electric Motorized Brass Ball Valve Water 220VAC/12VDC/24VDC Two Wire Normally Close L/T Type Control Valve

SPECIFICATIONS

Application: Water

Ball Material: Brass

Body material: Brass

Connection Size: 1/2 in,3/4 in,1 in,2 in,1-1/4 in,1-1/2 in

Connection Type: Thread

Connection type: BSP (G)

For Maximum Pipe Size: 2 in

Operation: Two wire Normally close

Port Size: 1/2" to 2"

Power: 6W(Only when the valves open and close)

Running Time: 5-15 Seconds

Sealing Material: PTFE

Structure Forms: Three Ways

Temperature: <95℃

Voltage: 12VDC, 220VAC, 24VDC

Working pressure: 0-16bar

application: General

brand name: Acarps

customized support: OEM

media: Water

model number: 2W

place of origin: Guangdong, China

power: Solenoid

structure: Ball

temperature of media: Normal Temperature

warranty: 1 year

Products Description Specification:
Medium: Cold/hot water, 60% Ethylene Glycol
Material: BrassPower Supply: AC220V/DC24V/DC12V
Structure Forms: Three Ways T Type&L Type
Operation Mode: CR04,Normally Close
Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: <90℃
Maximum Differential Pressure: 1.0MPa
Working Current: 2A
Sealing Material: NBR+PTFE
Max. Torque Force: 8 N.M
Cable Length: 0.35m
Protection Class: IP52
Connection Mode: G Internal Thread
