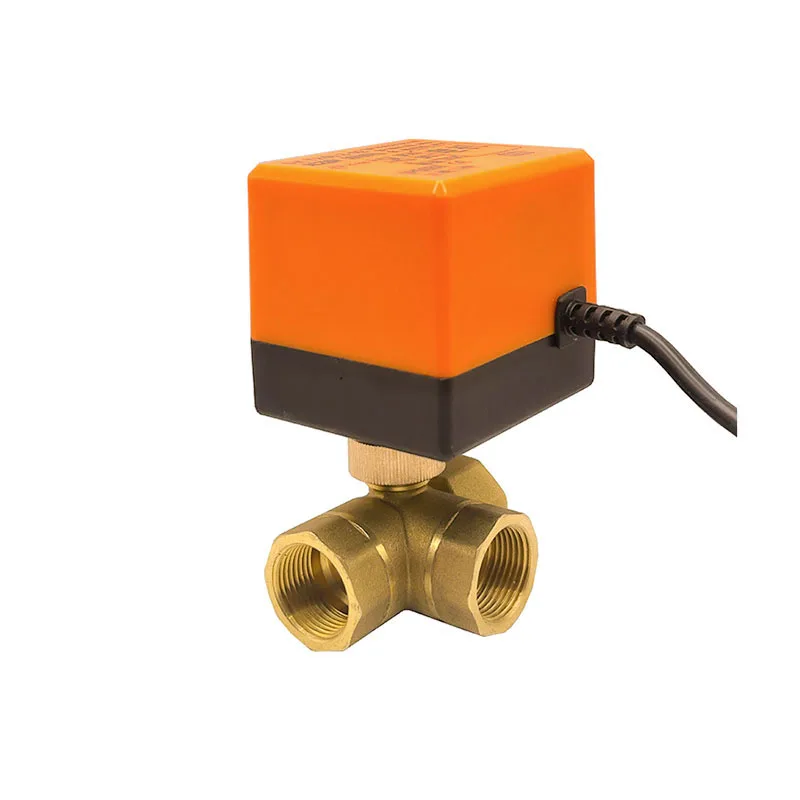

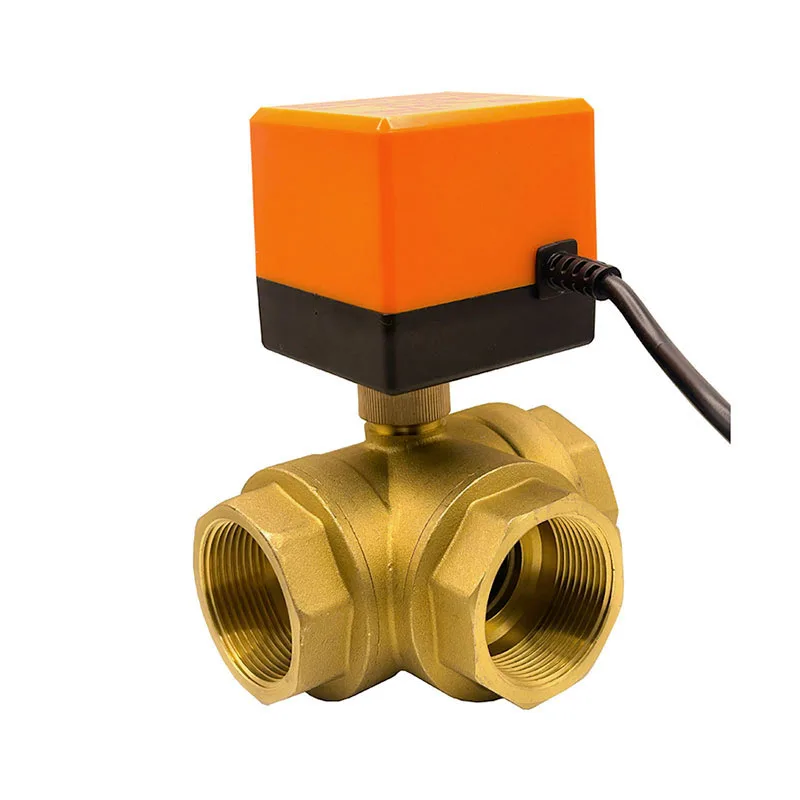

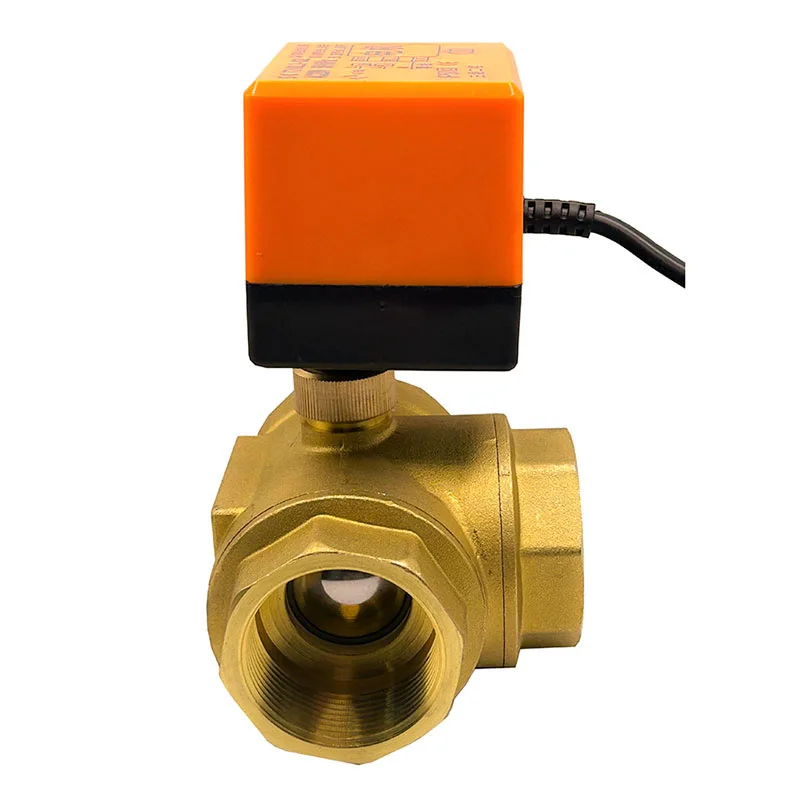

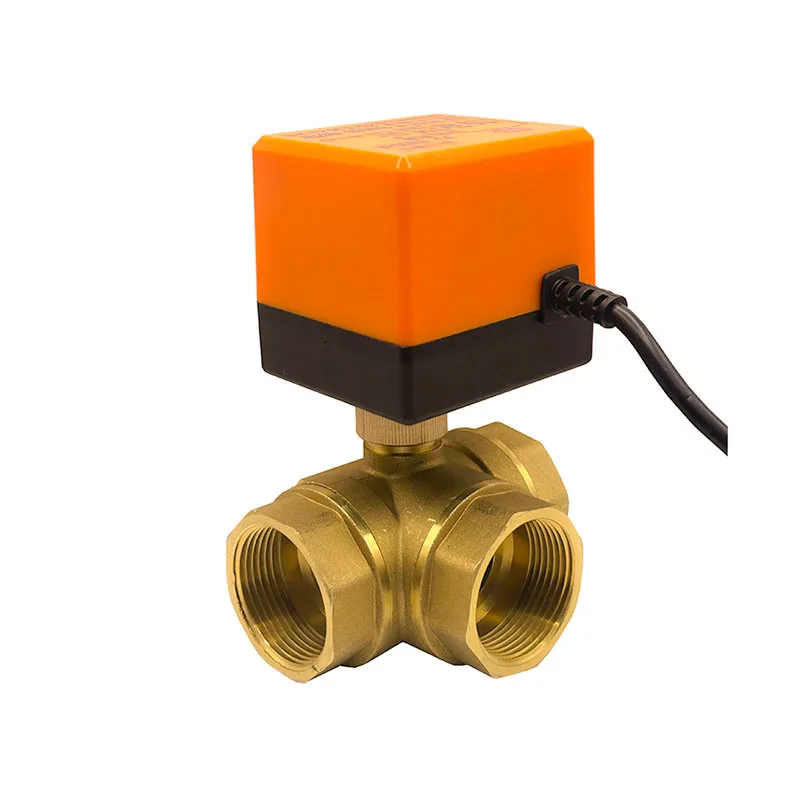

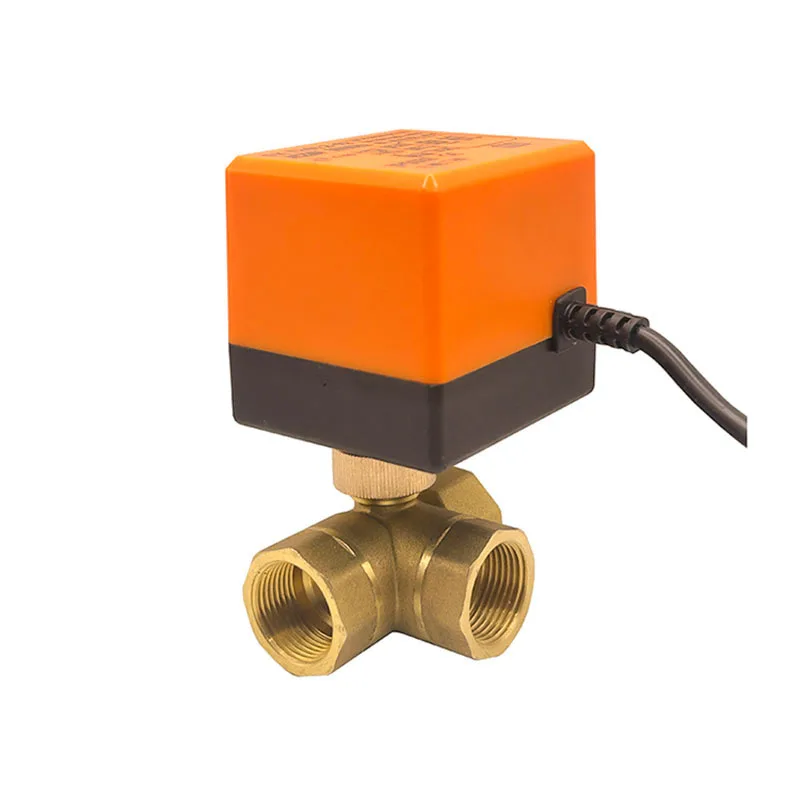

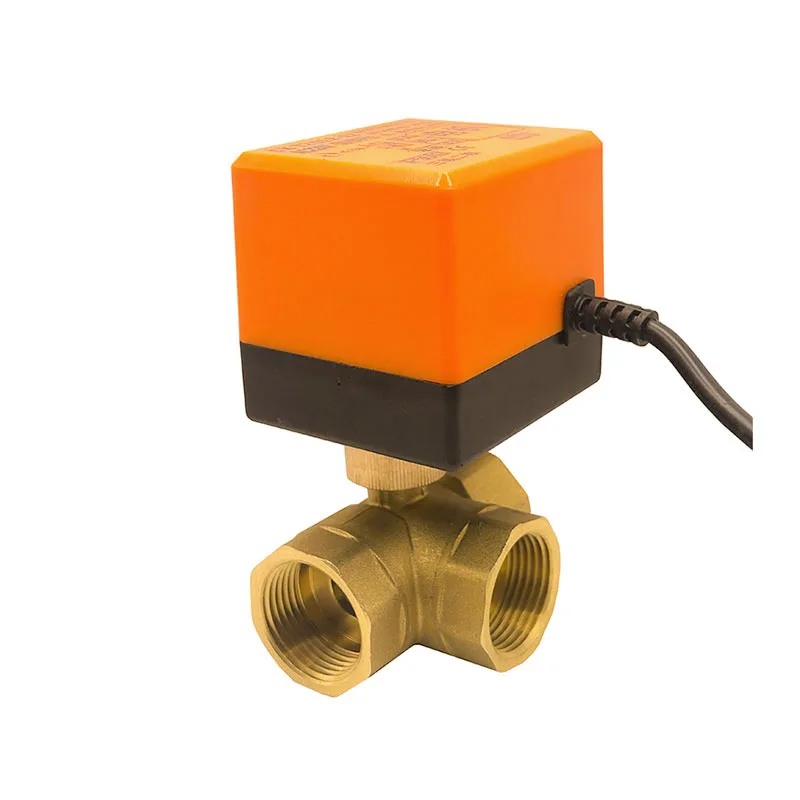

1/2'' 3/4'' Three Way Brass Motorized Ball Valve AC220V Three Wire One Control T/L Type Control Valve for Water

SPECIFICATIONS

Application: Water

Ball Material: Brass

Body material: Brass

Connection Size: 1/2 in,1 in,3/4 in,2 in,1-1/4 in,1-1/2 in

Connection Type: Thread

Connection type: BSP (G)

For Maximum Pipe Size: 2 in

Operating Temp. Range: 0~95℃

Operation: Three Wire One Control

Port Size: 1/2" to 2"

Power: 6W(Only when the valves open and close)

Running Time: 5-15 Seconds

Sealing Material: FKM

Structure Forms: Three Ways

Temperature: <95℃

Voltage: AC220V

Working pressure: 0-16bar

application: General

brand name: Acarps

customized support: OEM

media: Water

model number: EBV

place of origin: Guangdong, China

power: Solenoid

structure: Ball

temperature of media: Normal Temperature

warranty: 1 year

Product Highlights

Specification:

Size: DN15/DN20/DN25/DN32/DN40/DN50

Power Supply: AC220V 50/60Hz

Material: Brass

Structure Forms: Two Ways

Operation Mode: Three wire one control

Power: 6W (Only when the valves open and close)

Motor Type: Synchronous motor

Running Time: ≤15 Seconds

Nominal Pressure: 1.6MPa

Connection Way:Pipe screw thread thread G

Applied Medium: Cold water, hot water or 50% liquor of glycol water liquor Medium

Temperature: 2°~90°

Grade of Protection: IP54

Valve Body Material: Forging Brass, Nickel plated

Surface Actuator Material: Out Cover: ABS+PC Engineering Plastics(antiflaming) Base:PA66+30%GF
