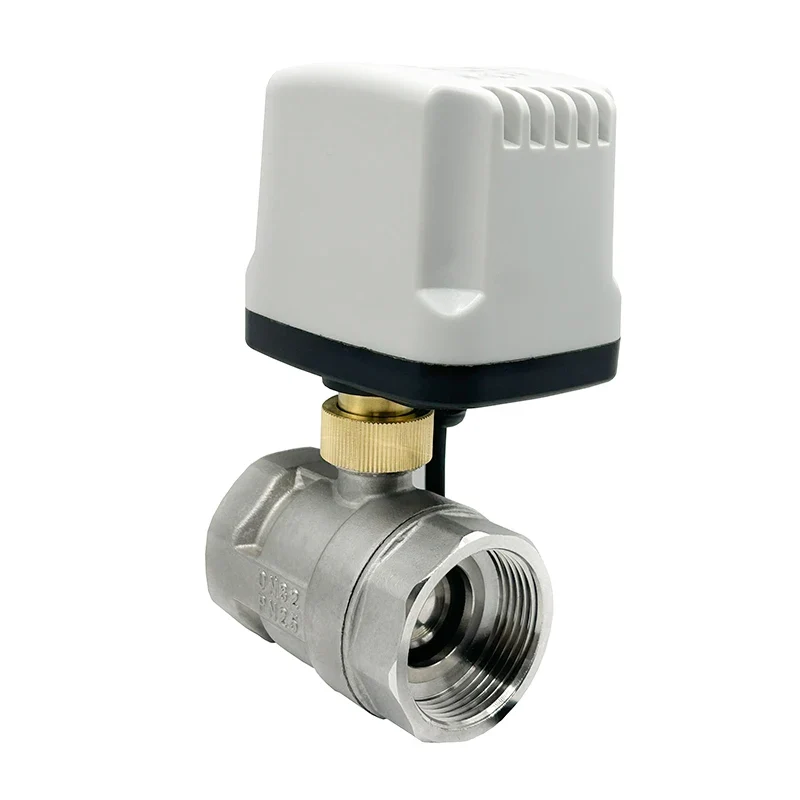

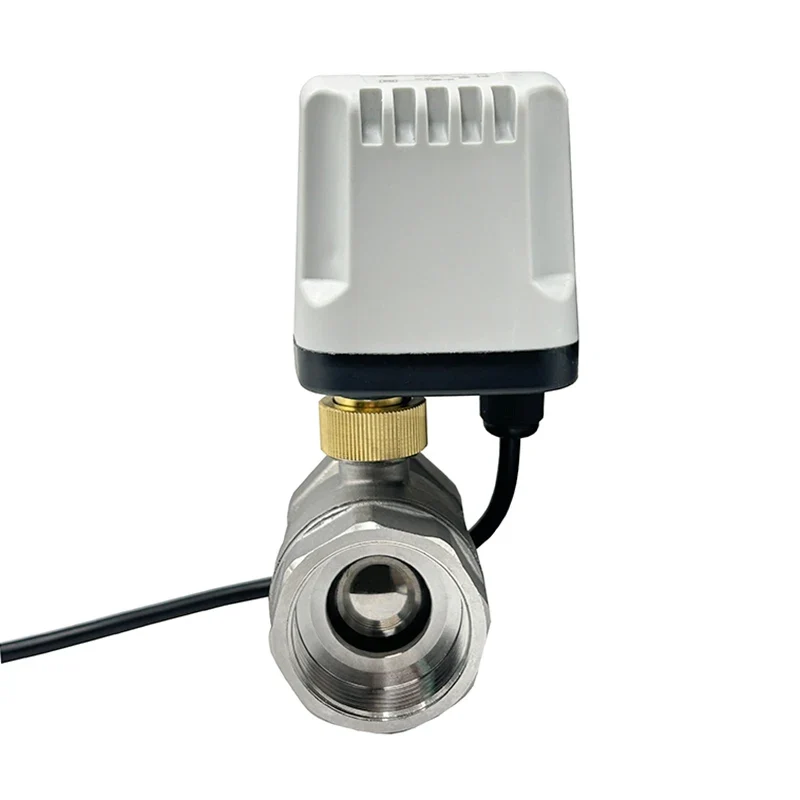

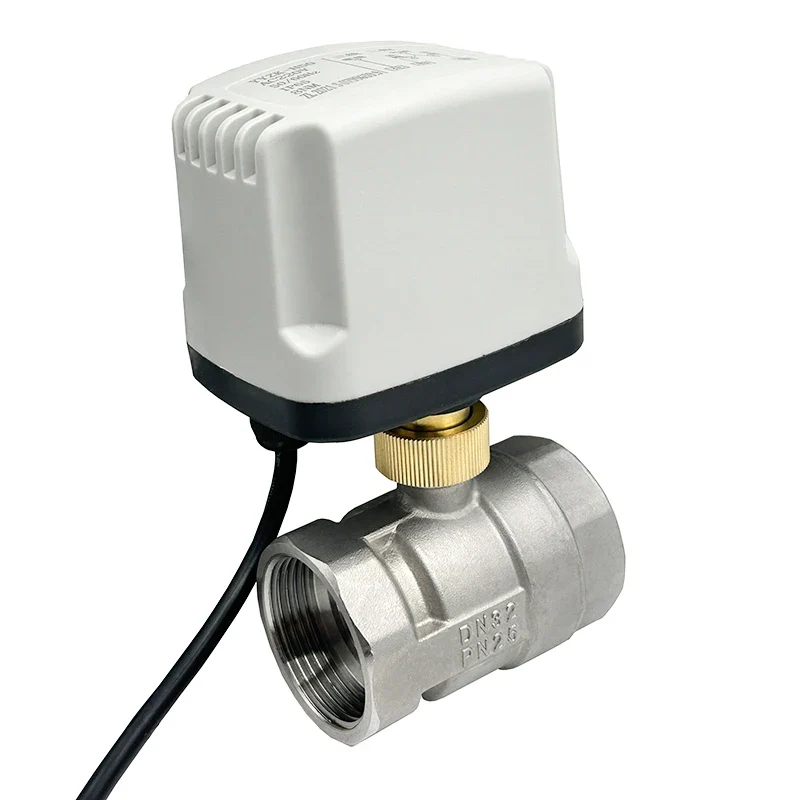

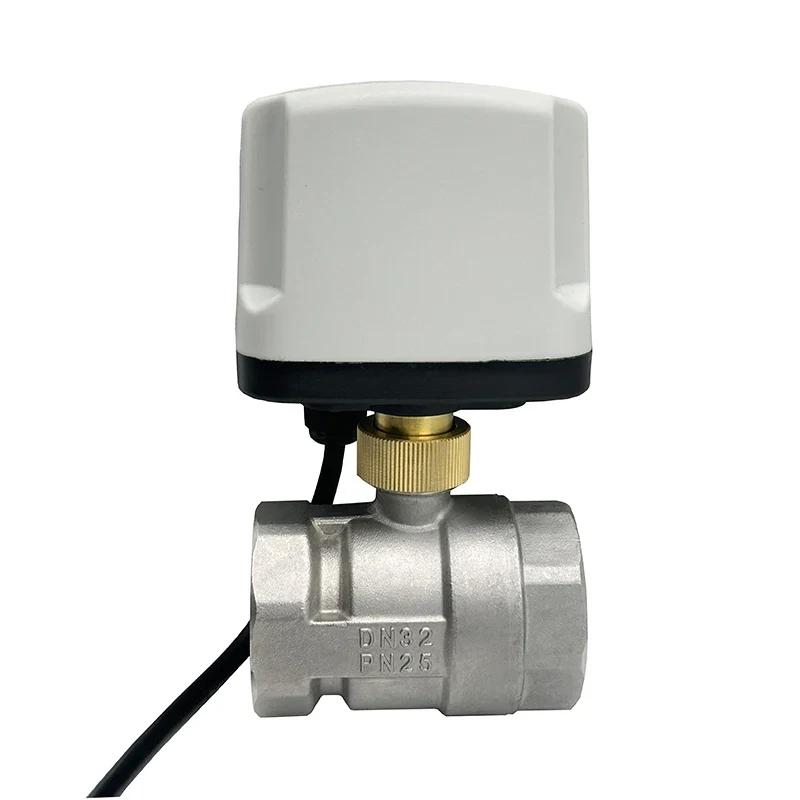

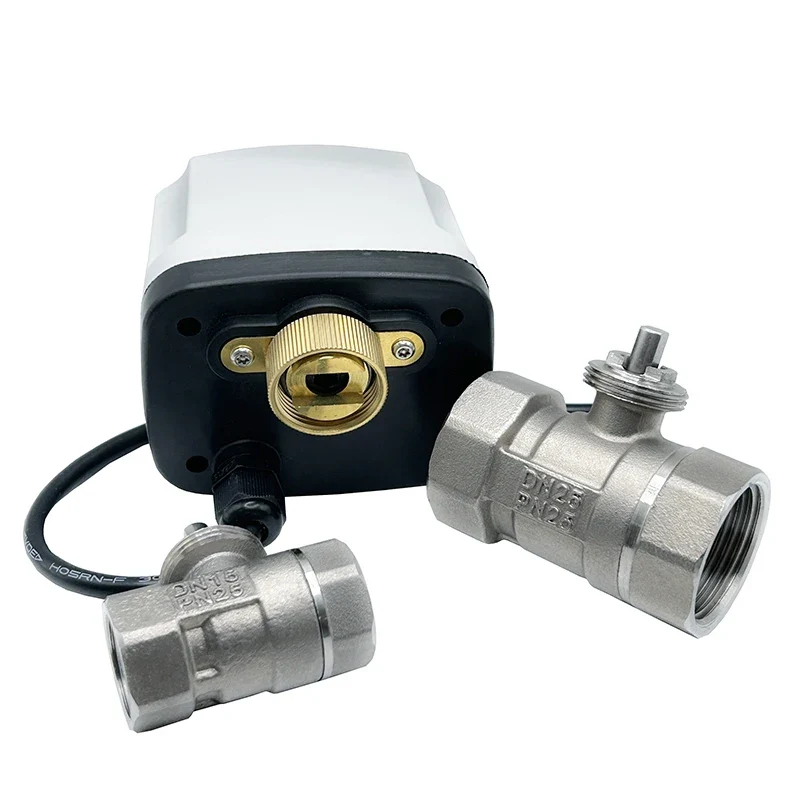

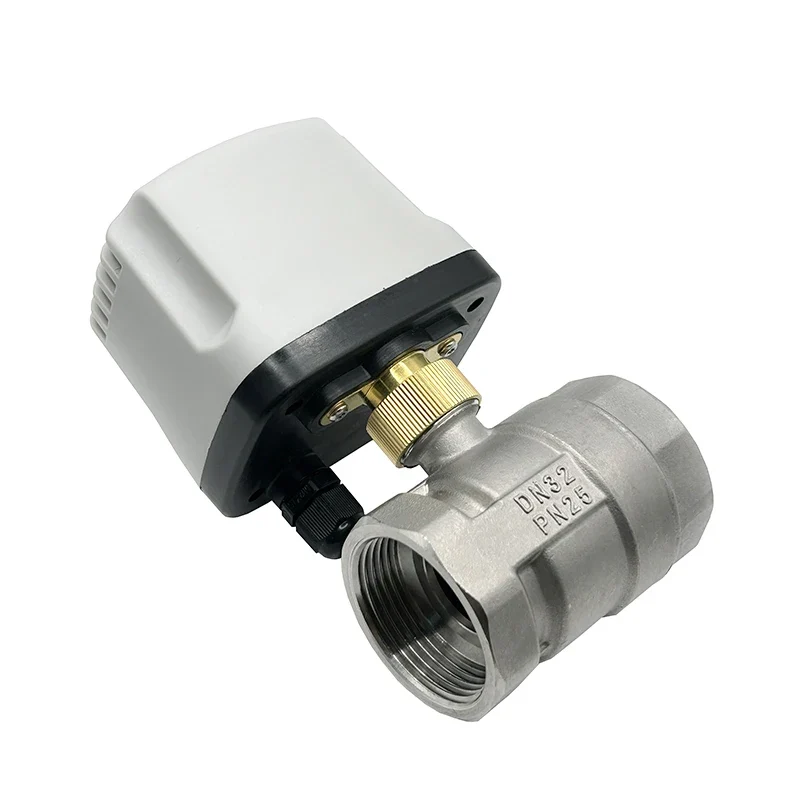

1/2" 3/4" 1" 1-1/4" Stainless Steel Electric Motorized Ball Valve 220V 12V 24V 3-Wire 2-Control for Water High Big Torque Motor

SPECIFICATIONS

Application: Water

Body material: Stainless Steel

Connection Size: 1/2 in,2 in,1 in,3/4 in,1.5 in

Connection type: BSP (G)

Operating Temp. Range: 0~95℃

Operation: Three wire two control

Operational Pressure Range: 16bar

Power: 6W(Only when the valves open and close)

Running Time: 5-15 Seconds

Structure Forms: Two Ways

Temperature: <95℃

Voltage: AC 220 V,Dc 12V,Dc 24V,12VDC, 220VAC, 24VDC

Working pressure: 0-16bar

application: General

brand name: Acarps

customized support: OEM,ODM,OBM

media: Water

model number: EBA

place of origin: Guangdong, China

port size: 1/2" to 2"

power: Solenoid

structure: Acarps

temperature of media: Normal Temperature

warranty: 1year

Products Description Specification:
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Stainless Steel
Power Supply: AC220V/AC110/DC24V/DC12V
Structure Forms: Two Ways
Operation Mode: CR02Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: -10~100℃
Maximum Differential Pressure: 1.0MPa
Working Current: 2A
Sealing Material: NBR+PTFE
Max. Torque Force: 8 N.M
Protection Class: IP65
Connection Mode: G Internal Thread Shipment and Payment FAQ Q1: Only bulk orders?
