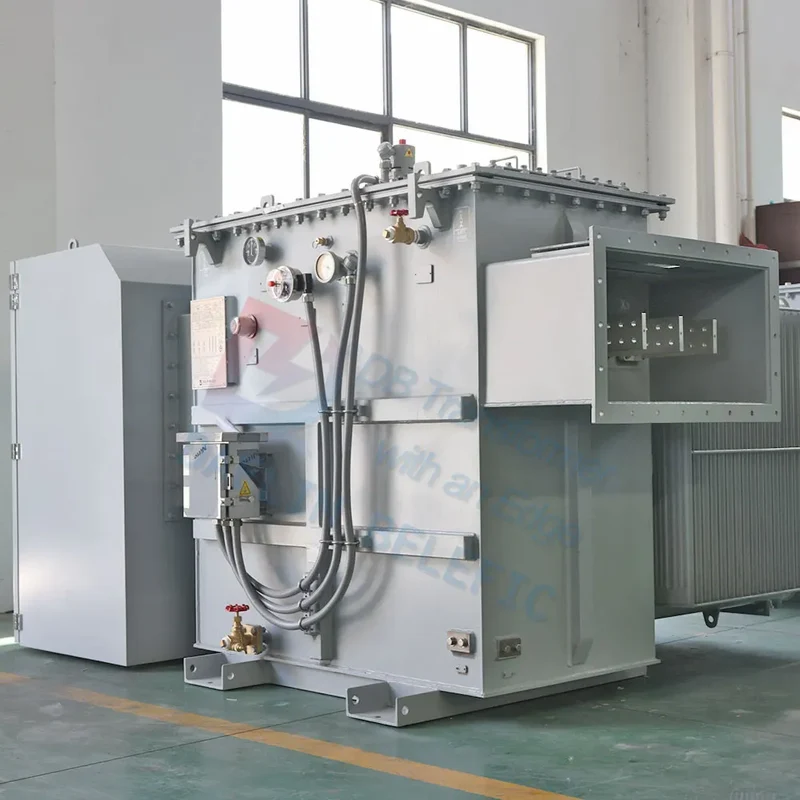

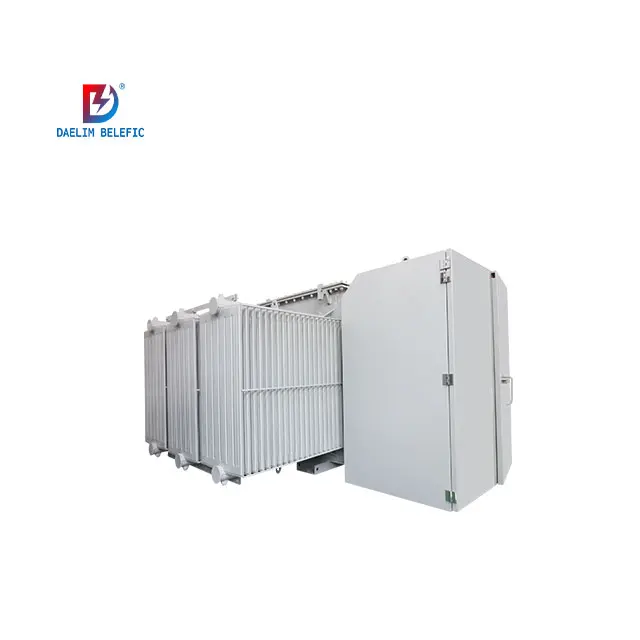

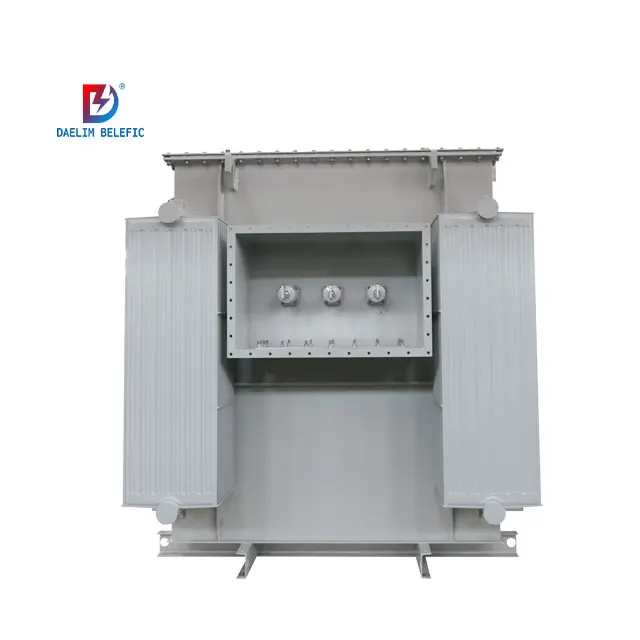

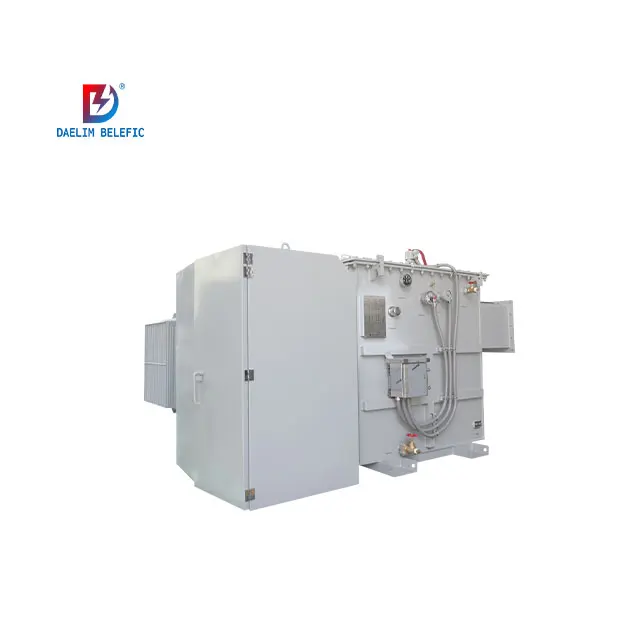

1 Mw Oil Immersed Three Winding 1.6 1.25 1 Mva 11kv to 400v Power Furance Transformer Price of 1 0.86 Mva 11 Kv to 0.4 Kv

SPECIFICATIONS

Application: Power Distribution System

Brand Name: Daelim Transformer

Certification: CSA/UL/cUL

Coil Number: Multi-Winding Coil

Coil Structure: Layered Winding

Frequency: 50/60Hz

Input Voltage: 35kv 34.5kv 33kv 24.94kv 13.8kv 13.2kv 12.47kv 11

Material: Copper/Aluminum

Model Number: S

Output Voltage: 220 V,380 V,440 V,480 V

Output voltage: 0.4kv 0.415kv or others

Phase: Three

Place of Origin: Beijing, China

Product name: 1 mva 1.6 mva transformer, 11 kv to 0.4 kv

Rated voltage: 13.2kv/13.8kv/24.9kv/34.5kv or others

Standard: ANSI C57.12/AS/CSA/DOE/IEEE

Type: Distribution transformer

Warranty: 24 Months

application: New Energy, Utilities, Data Centers

Daelim Advantages

1. Certifications

Daelim is a professional transformer manufacturer and supplier. Various international standards can be customized for your transformer, such as: IEEE/ANSI, CSA, AS/NZS, IEC, EN 60076, NZS,GOST, etc.Daelim produces transformers with UL/cUL, CSA, CESI etc certifications.

2. Efficient and transparent supply chain

A. Fast delivery: 4-6 weeks B. Online video factory inspection, and online product lab testing available

3. After Sales Service

A. Up to 24 months quality guarantee period. If there is any problem in the operation of your transformer, Daelim's after-sales team will solve it promptly and quickly; B. Local after-sales installation service team. Whether you are in North America, South America or other regions, Daelim's local team can provide you with professional transformer installation, commissioning, maintenance and other services; C. Daelim provides remote video guidance for transformer installation; Transformer Detail Small Substation Power Transformer Daelim Transformer offers a complete line of liquid filled distribution transformers that meet current applicable ANSI" /lEEE" standards. With high voltages up to 44kV and ratings up to 20 MVA(ONAN), Daelim Transformer primary and secondary substation transformers are used in a wide range of utility, commercial and industrial applications, High-grade materials, combined with state of the art technology in our design and manufacturing systems, are key elements of a transformer that will deliver years of high reliability service.
Standard Feature − Insulating mineral oil
− 60/50 Hertz operation
− Liquid level gauge
− Externally operated de-energized tap changer with(2)
2.5% full capacity taps above and below nominal
− 65℃ average winding rise
− Side-mounted bushingsTop filter press valve provision − ANSl grounding pad − ANSl 61 paint finish, 5 mils thickness − HV and LV flange connections

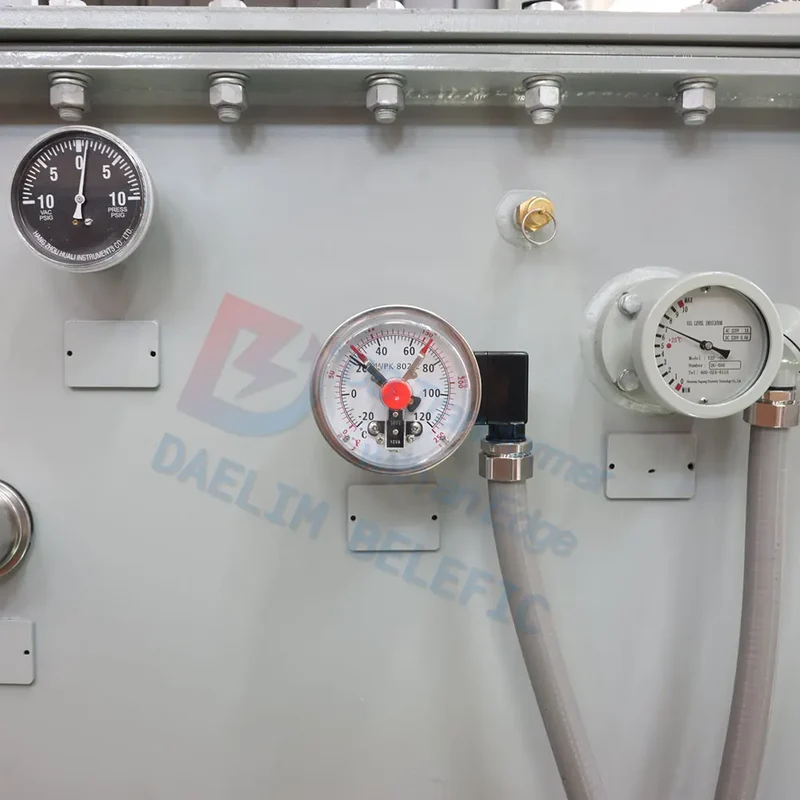

− Pressure-vacuum gauge − Liquid level gauge
− Liquid temperature gauge
− Pressure test valve
− Drain/filter valve with sampling device
− Tank lifting lugs
− Corrosion resistant nameplate
− Hydran provision (above 7.5 MVA)
− ANSl 70 paint finish, 5 mils thickness
Option Accessories ■High-fire point fluid,such as silicone,hydrocarbon or
vegetable fluids. (up to 15 MVA)
■55° C 55/65° C average winding rise
■Forced air cooling
■Forced air cooling with 2 stages
(from 7.5 MVA and up to 15 MAVA)
■Removable radiators

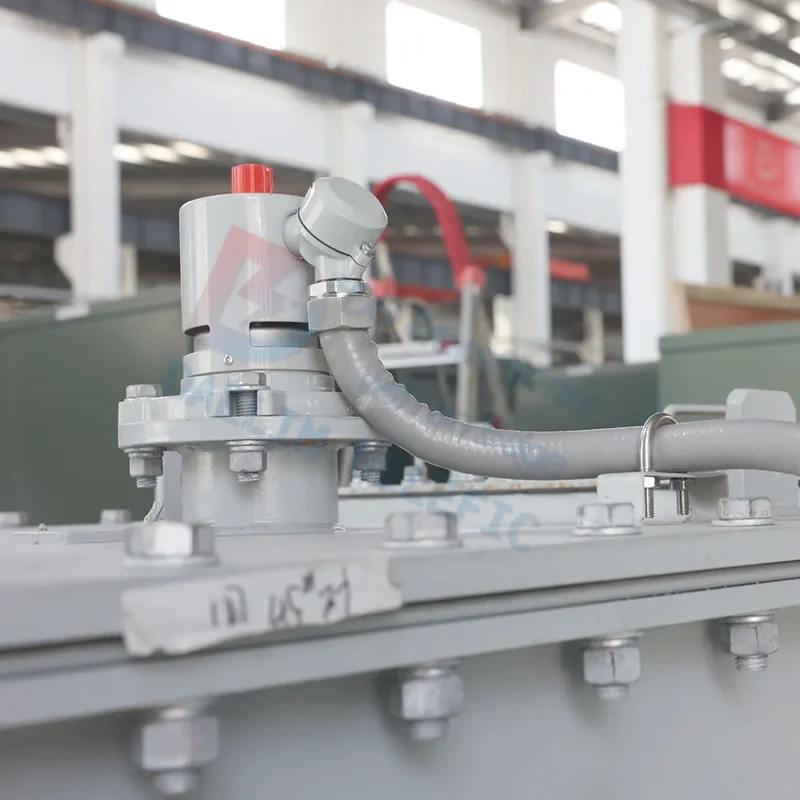

■Pressure relief device
■Winding temperature device
■Sudden pressure relay with or without seal in
■Devices with alarm contacts
■Top filter press valve
■HV & LV air terminal compartments
■HV lightning arresters in ATC
■Current transformers ■50 Hertz
■ Neutral grounding resistor
■ Special impedances
■ Low losses
■ Special environment(i.e:classified areas)
■ Special/low sound level
■ Retrofit to specific dimensions
■ Non-standard loading conditions such as
harmonic loading or specified K-factor
■ Stainless steel removable radiators
■ Galvanized steel removable radiators
■ Special paint for marine ambient
■ Special paint thickness
■ Special colors
■ CSA compliance
■ Other special features upon request ■ Seismic zone lll and lV
Technical Specification

Small substation Power Transformer
Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	Loss (W)
						No-load Loss (W)	On-load Loss (W)
800KVA	24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/  or others	208/210V 415/240V 480/277V 400V 600V 12000V 12470V 13200V 13800V or others	980	9350
1000KVA					1160	11500
1250KVA					1380	13900
1600KVA					1660	16600
2000KVA					2030	18300
2500KVA					2450	19600
3000KVA					3240	26500
5000KVA					4500	27000
7500KVA					7200	32000
10000KVA					8500	35500

Packing & Delivery Factory Profile Daelim Transformer is the top transformer supplier in China. The factory is located in Jiangsu Province, covering an area of 60,000 square meters. With more than 20 years of transformer export experience, the professional technical team can meet your requirements for all technical standards; the professional marketing team will quickly and efficiently promote your transformer project, saving you more time and economic costs. Various international certifications of transformers to ensure product quality, safety and reliability. The practical application of Daelim Transformer in nearly a hundred countries will make you more confident in Daelim Transformer. Daelim Transformer will be your good choice. Applications

Data Center System Facilities

Daelim Transformer is experts in data center systems, providing power distribution equipment solutions for your data center, including small substation transformer, pad mounted transformer. Fast delivery time and perfect design plan bring you the greatest economic benefits.

Oil And Gas Refining Facilities

Daelim Transformer has provided effective power solutions for oil and gas exploration customers in the United States, Canada,Venezuela and other countries. We are familiar with your needs for transformer equipment, and our professional technical team will provide you with efficient solutions; Click Here For Transformer Solution

Utilities

Daelim Transformer designs and produces single phase pole mounted transformer, pad mounted transformer and substation style transformers to fit utility needs. The lead time of 6-8 weeks and the monthly production capacity of 500 units will provide reliable guarantee for your project.

Renewable Energy Facilities

Daelim Transformer can provide power distribution solutions for your wind, solar, battery storage and other renewable energy facilities. small substation transformer are technically designed to meet your facility needs, providing you with a one-stop solution. Sales Record Daelim's transformers are sold to nearly 100 countries including the United States, Canada, Mexico, Ecuador, Chile, and Australia. The picture below is part of the sales record.
