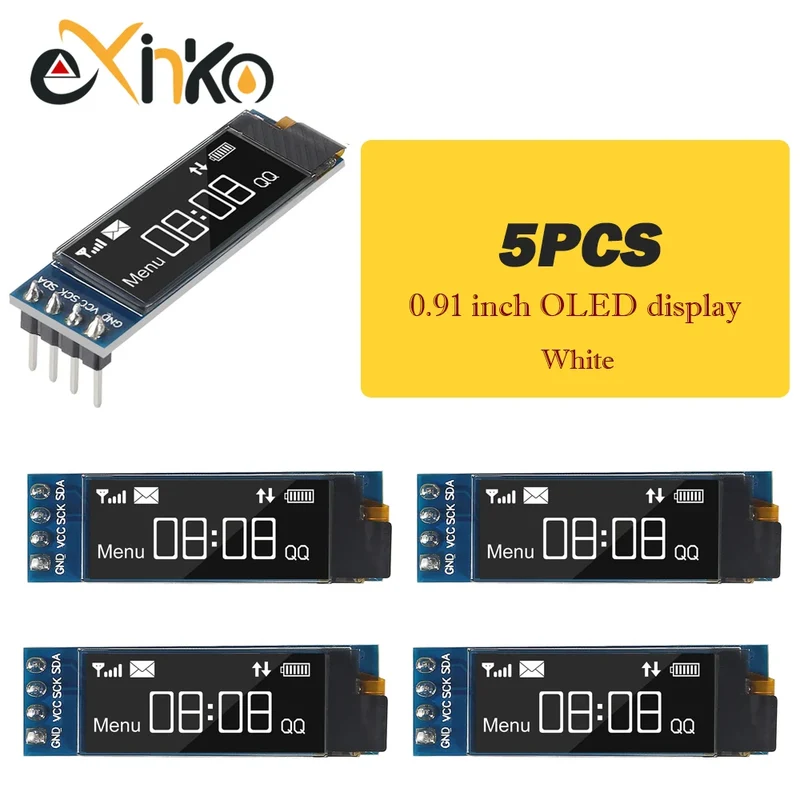

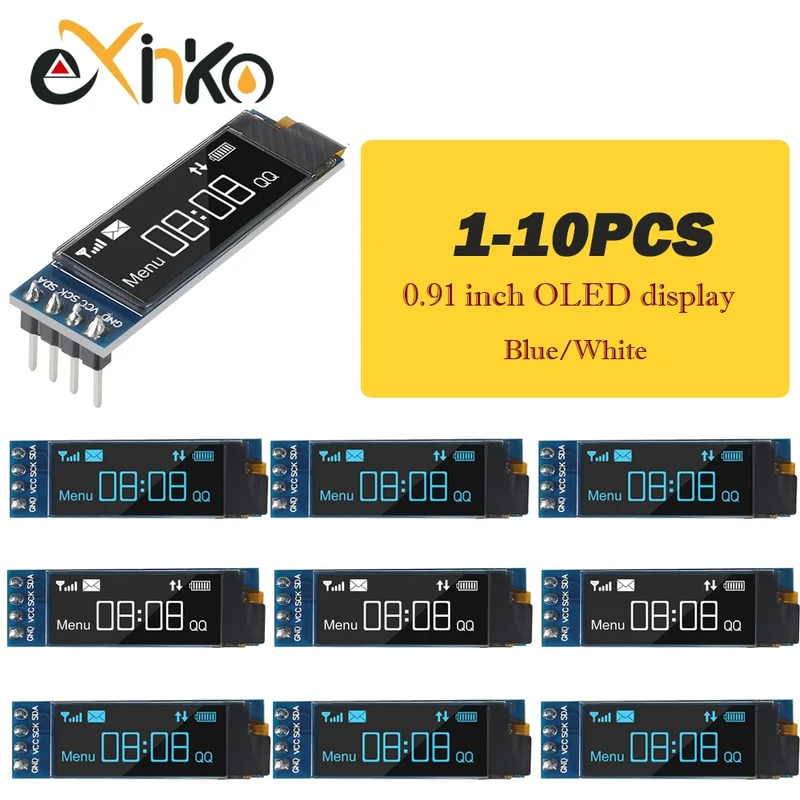

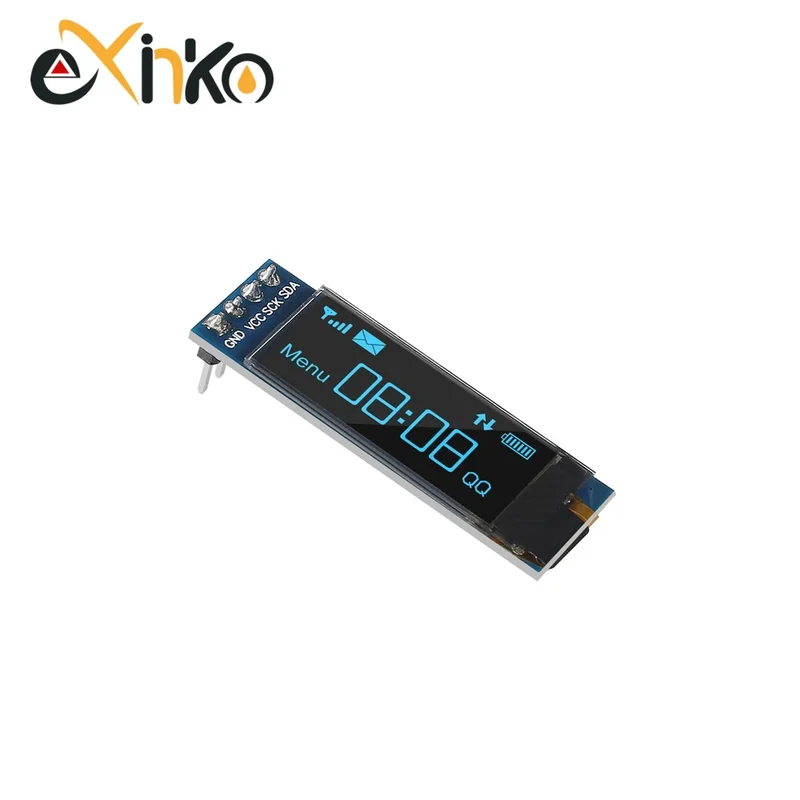

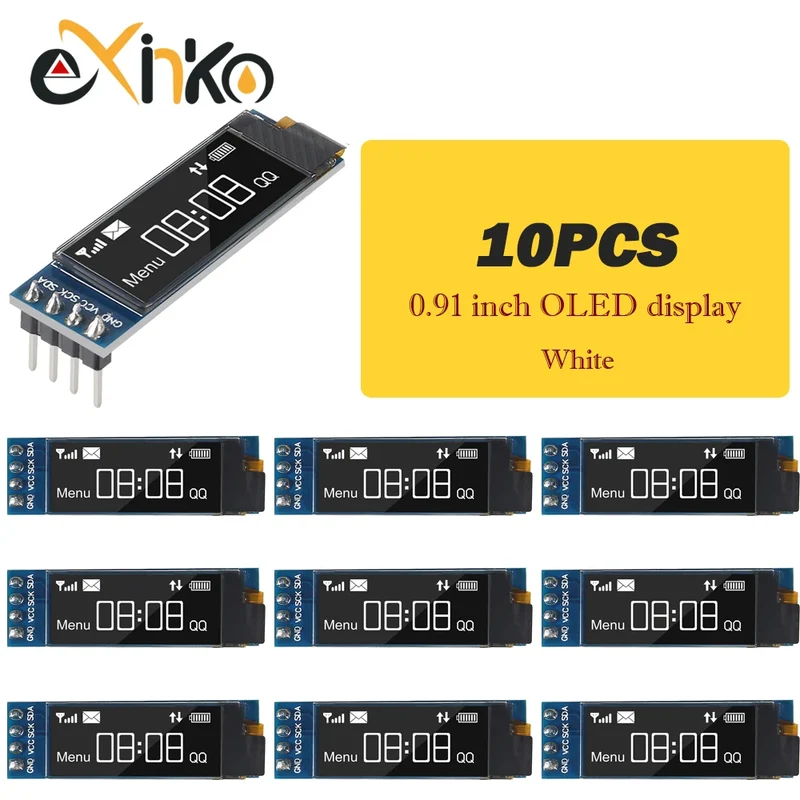

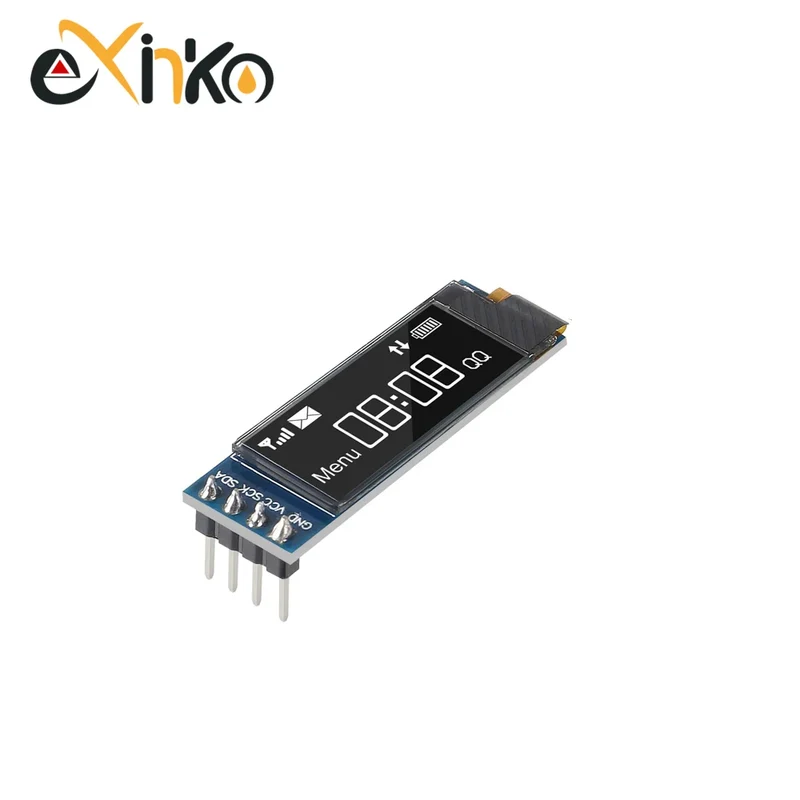

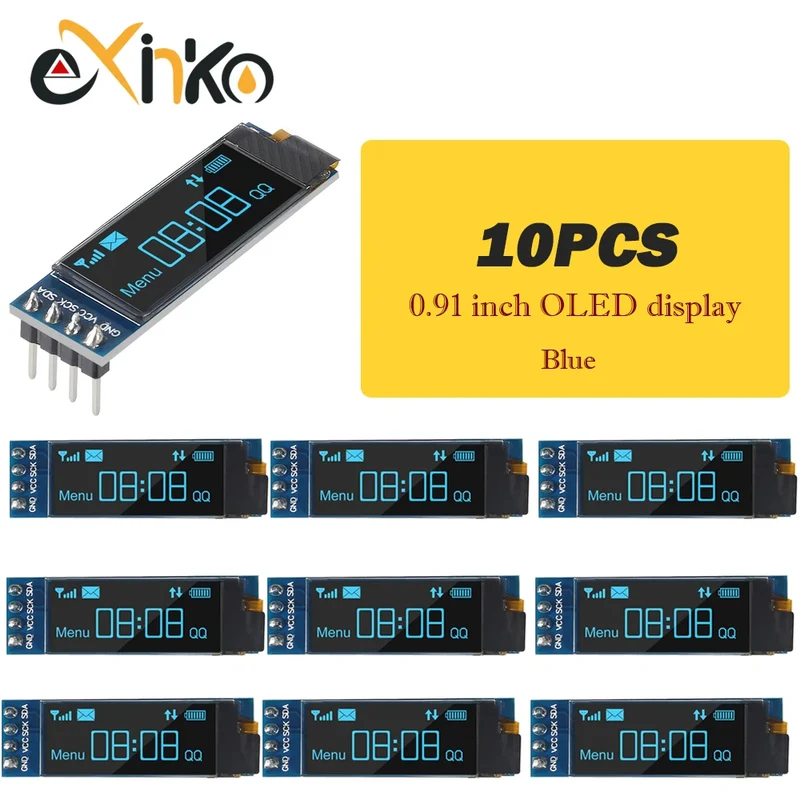

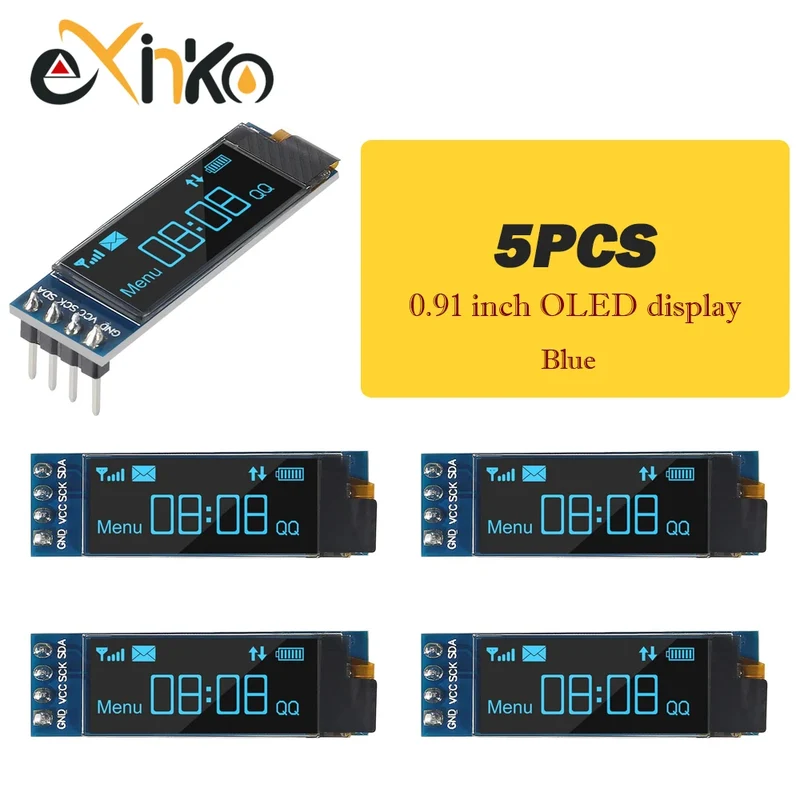

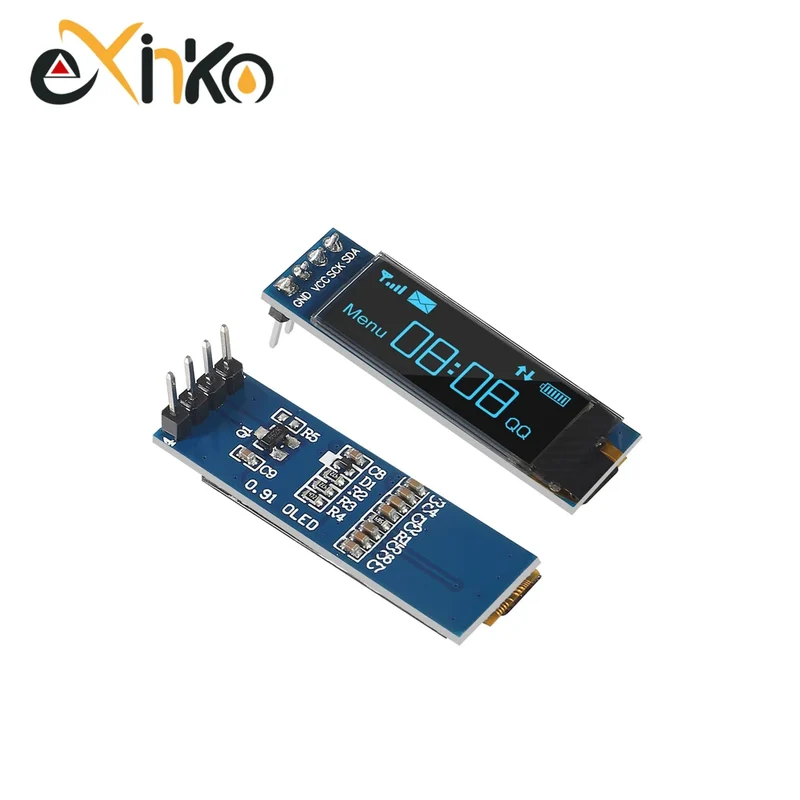

1-10pcs 0.91 inch OLED display module white/blue OLED 128X32 LCD LED Display SSD1306 12832 0.91 IIC i2C Communicate for ardunio

1-10pcs 0.91 inch OLED display module white/blue OLED 128X32 LCD LED Display SSD1306 12832 0.91 IIC i2C Communicate for ardunio

Noted:The needle is not welded and needs to be welded by oneself!!!

Description

• 0.91 OLED, lightweight and compact
• high resolution: 128 x32 (same resolution as 12832, clearer display)
• visual angle: greater than 160 ° (each direction can be clearly seen)
• wide voltage power supply (3V ~ 5V), simultaneously containing 3.3V and 5V level logic, without level conversion chip
• ultra-low power consumption: normal display 0.06w (much lower than TFT display)
• the IIC interface can be easily lit with only 2 IO
• military-grade craft standard, long-term stable work

parameter

name	color classification
display color	white	blue
SKU
the size of	0.96(inch)
type	OLED
the OLED drive chip	SSD1306
resolution	128*32 (Pixel)
module Interface	IIC,①-GND,②-VCC,③-SCL,④-SDA

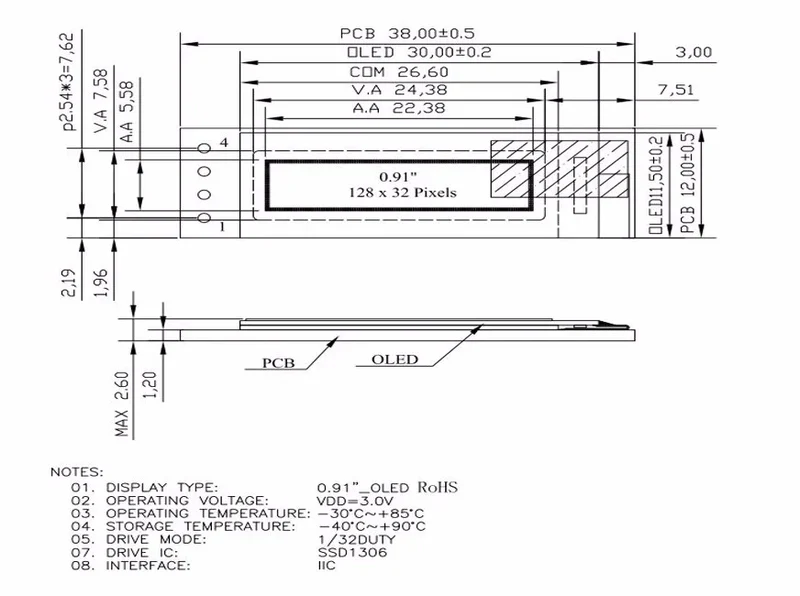

the effective display region	5.52x22.38(mm)
module size	12x38(mm)
from the perspective	> 160 °
working voltage	3.3V / 5V
power consumption	the full brightness is about 25mA, and the full extinction is about 1.5mA
product Weight	15(g)

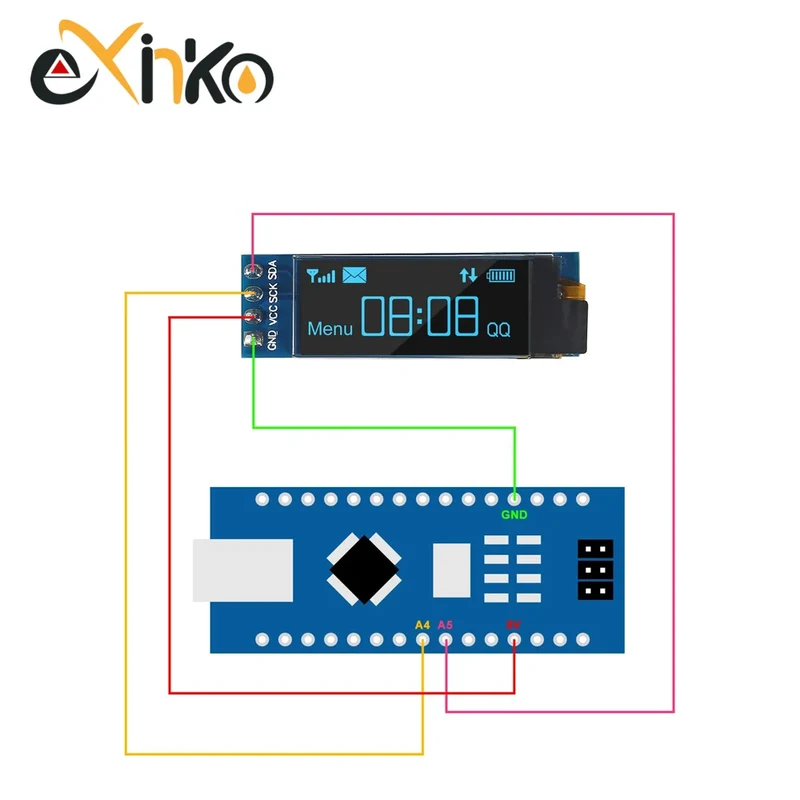

interface Definition

PIN	cement grade	pin description
1	GND	OLED power ground
2	VCC	OLED power supply positive (3.3V ~ 5V)
3	SCL	OLED IIC bus clock signal
4	SDA	OLED IIC bus data signal
