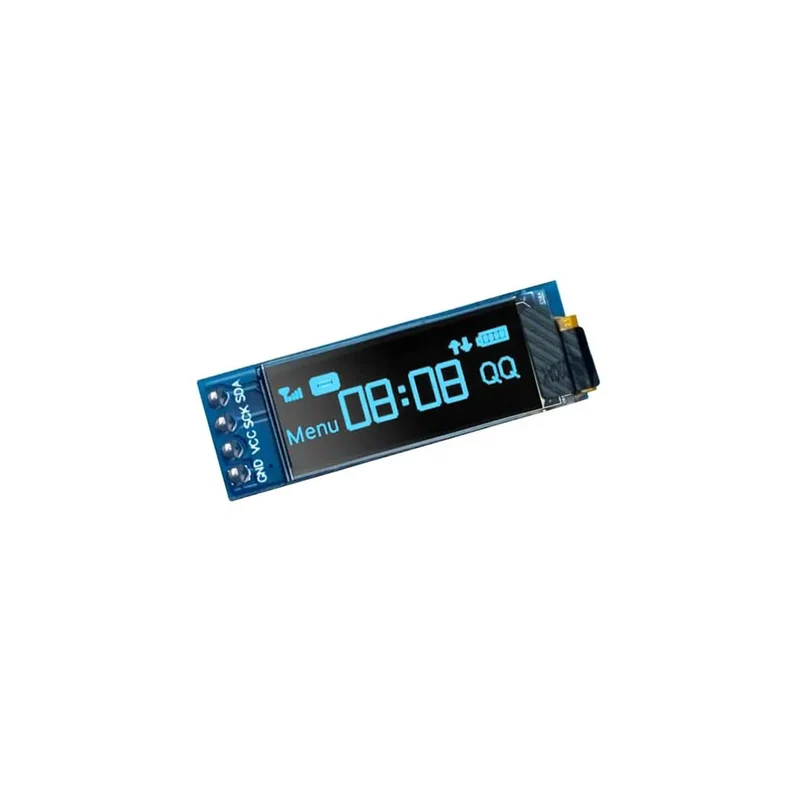

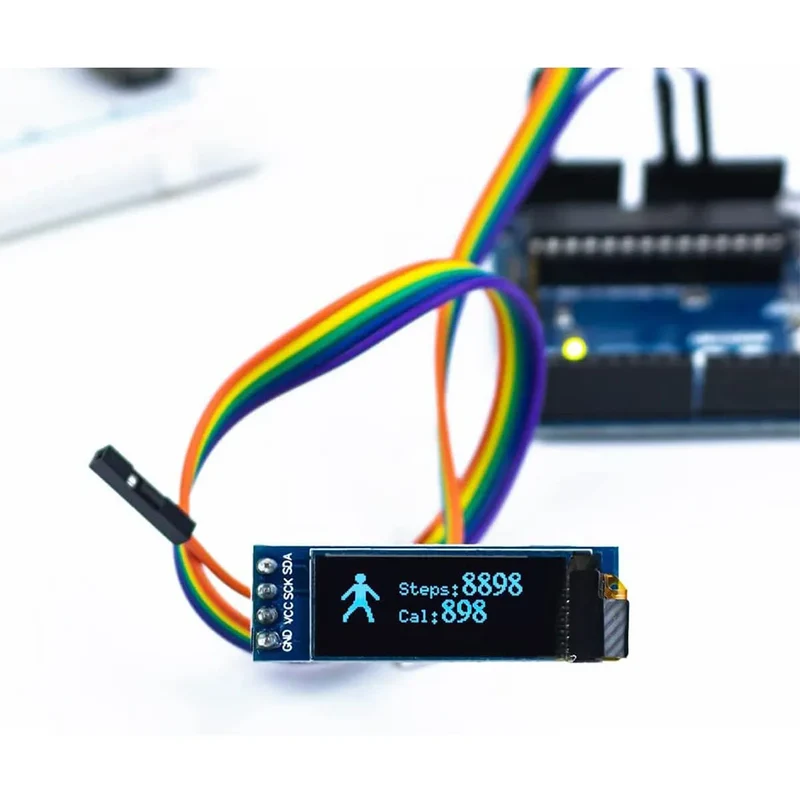

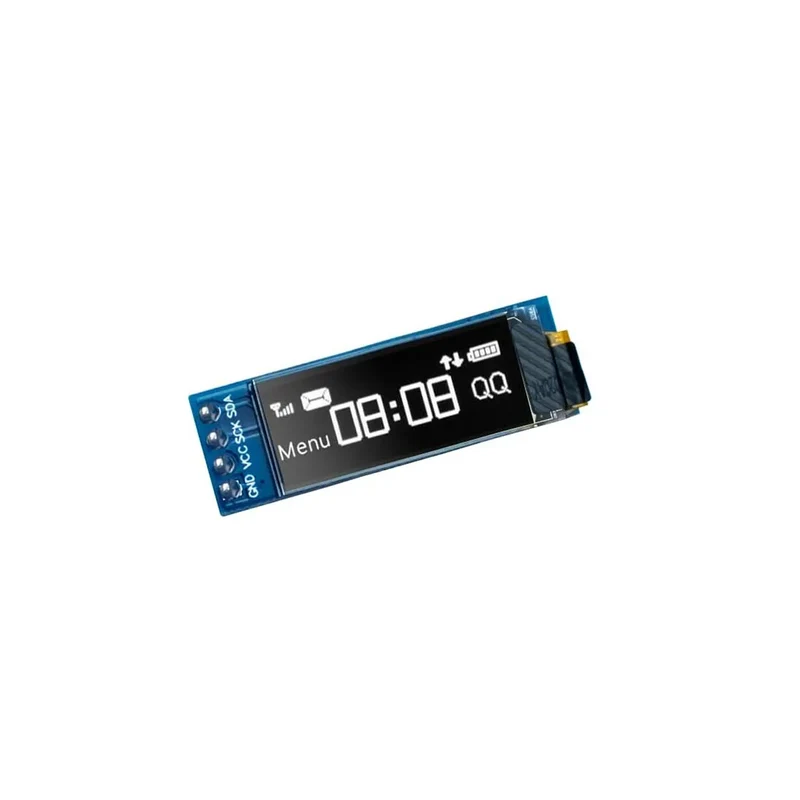

0.91 inch OLED display module white/blue OLED 128X32 LCD LED Display SSD1306 12832 0.91 IIC i2C Communicate for ardunio

128 x 32 Pixel: Needn't backlight, these OLED module can self-luminous. It has super high contrast, bright and crisp dots, viewing angle is greater than 160°, even tiny fonts quite readable

No Embedded Fonts: There are no embedded fonts inside these Arduino display module, you can create the fonts through font generation software

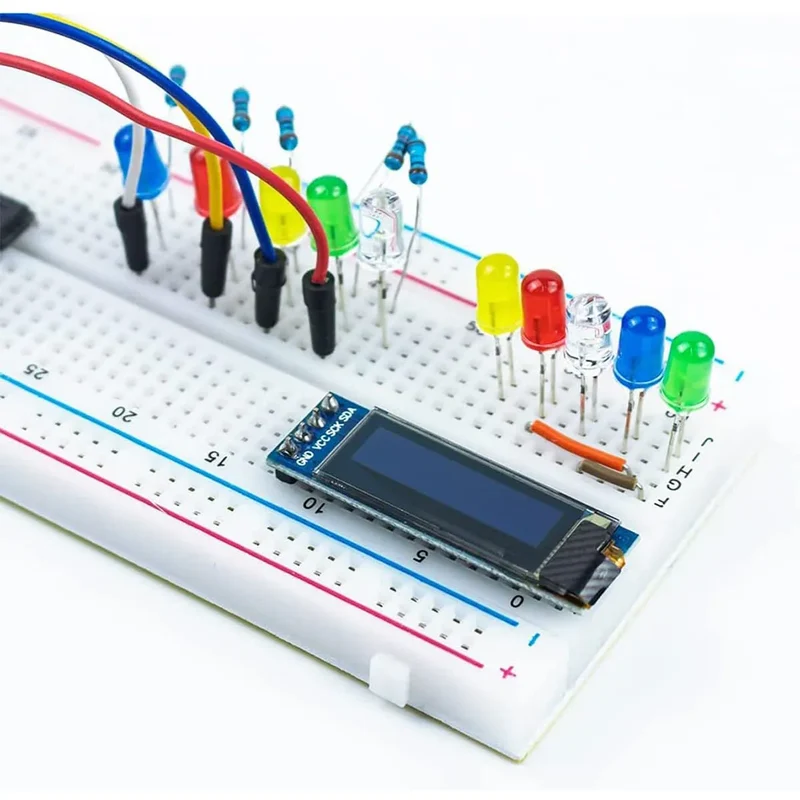

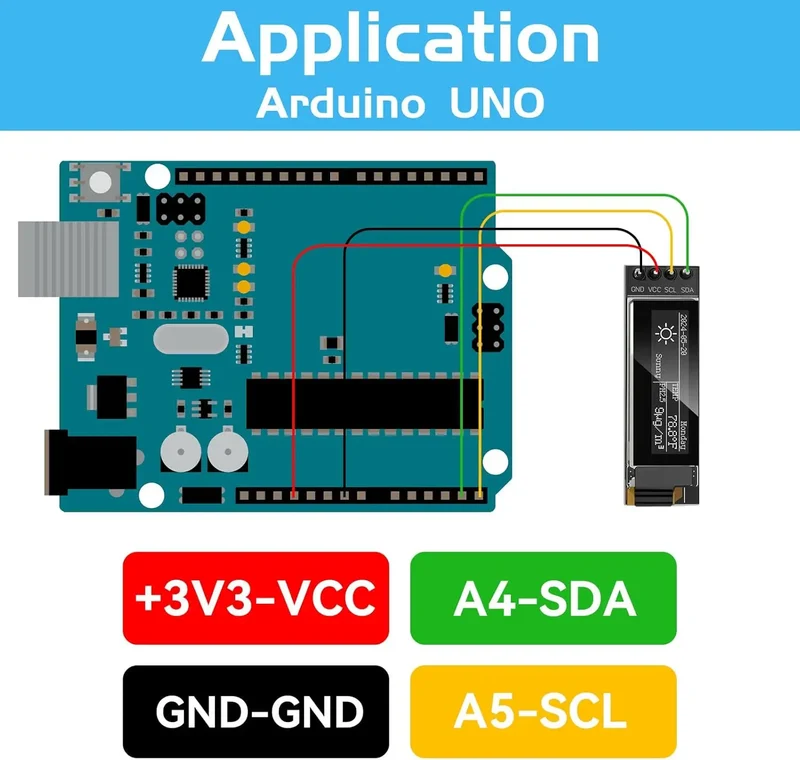

Application: These OLED display can be used for Arduino, Raspberry Pi 5/4B/3B+/3B/2B/Zero, STM32, C51, ESP32 development board and so on. Showing graphical & textual information directly of your machines

Parameters: Screen Size: 0.91-inch; Driver Chip: SSD1306; Resolution: 128*32; Color: White; Viewing Angle: >160°; Power Consumption: 0.06W; Voltage: 3.3V or 5V DC; Working Temperature: -20℃-60℃

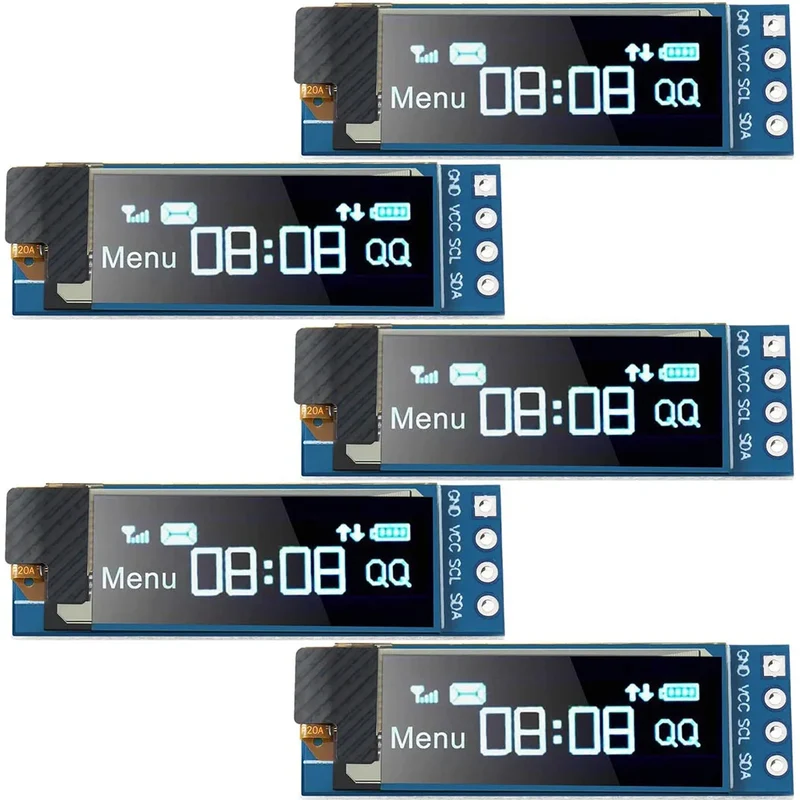

What You Get: You will get 5 pieces 0.91-inch I2C OLED display module with 1 pieces protective case

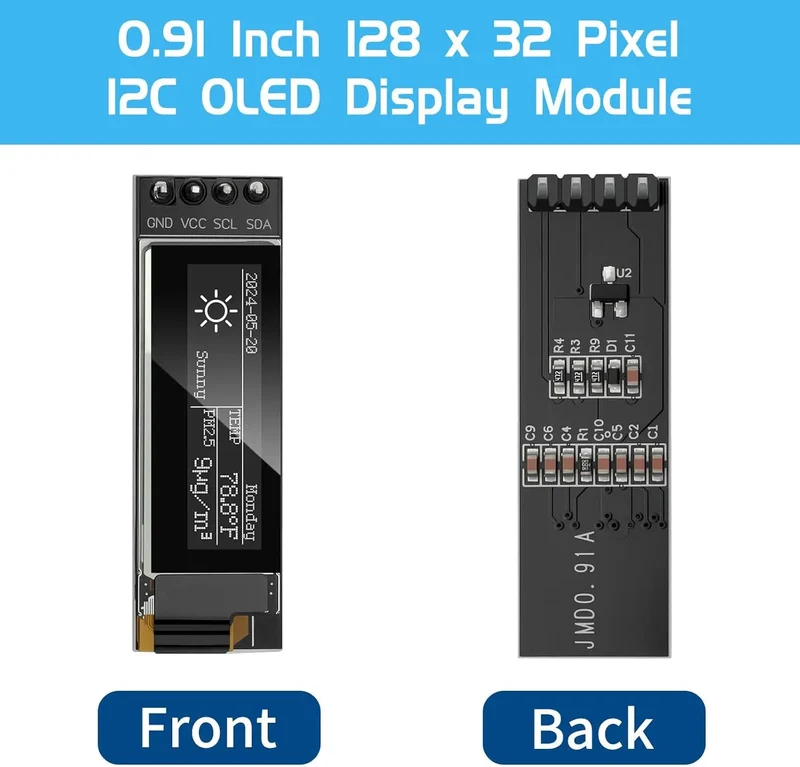

Specifications:

Size: 0.91 inch OLED

Resolution: 128 x 32

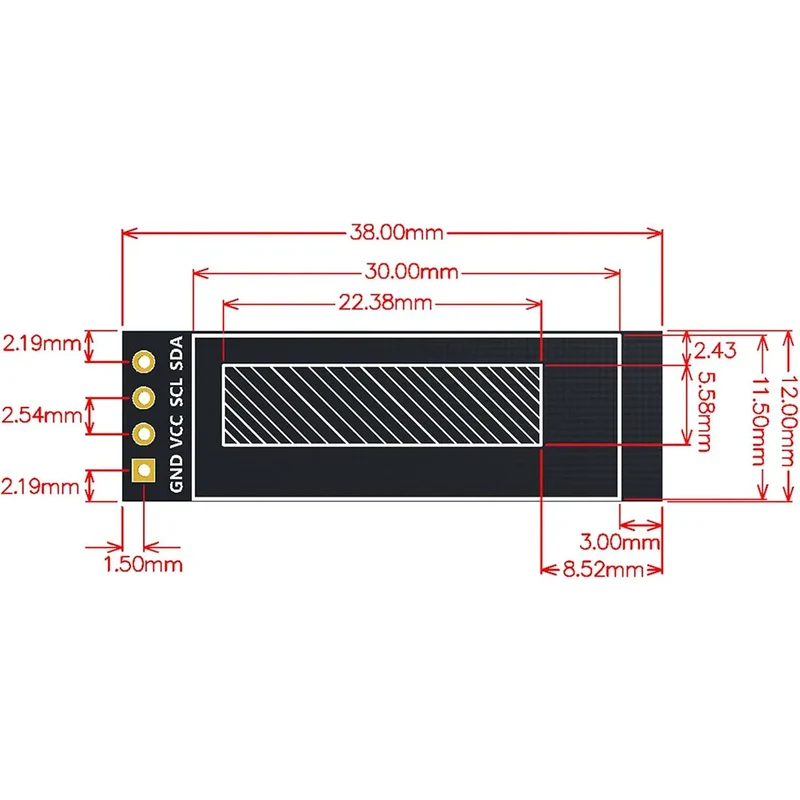

Size: 38 x 12 mm

Interface type: IIC interface

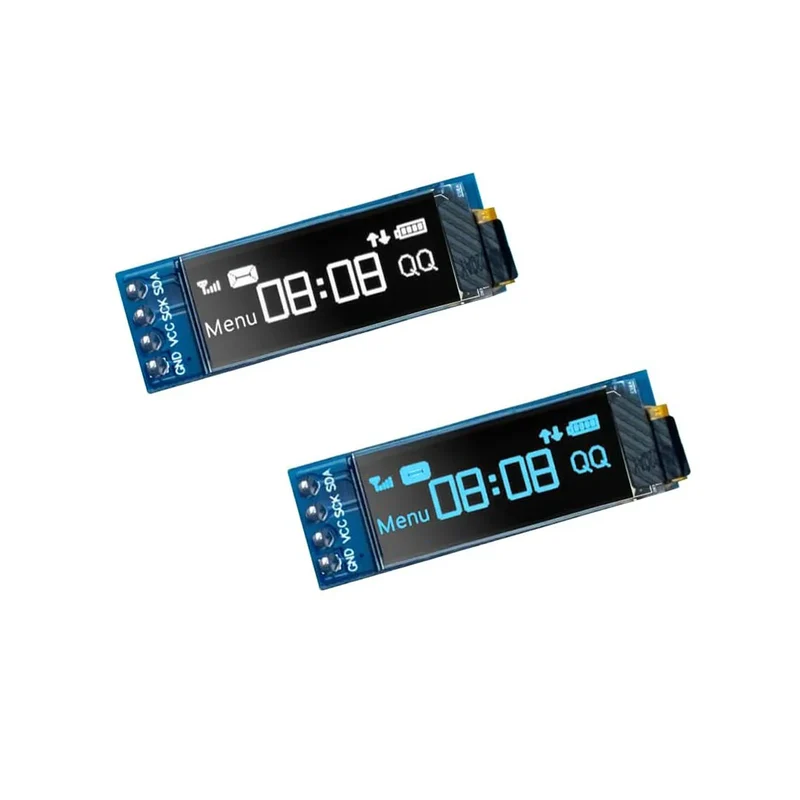

Display color: blue or white

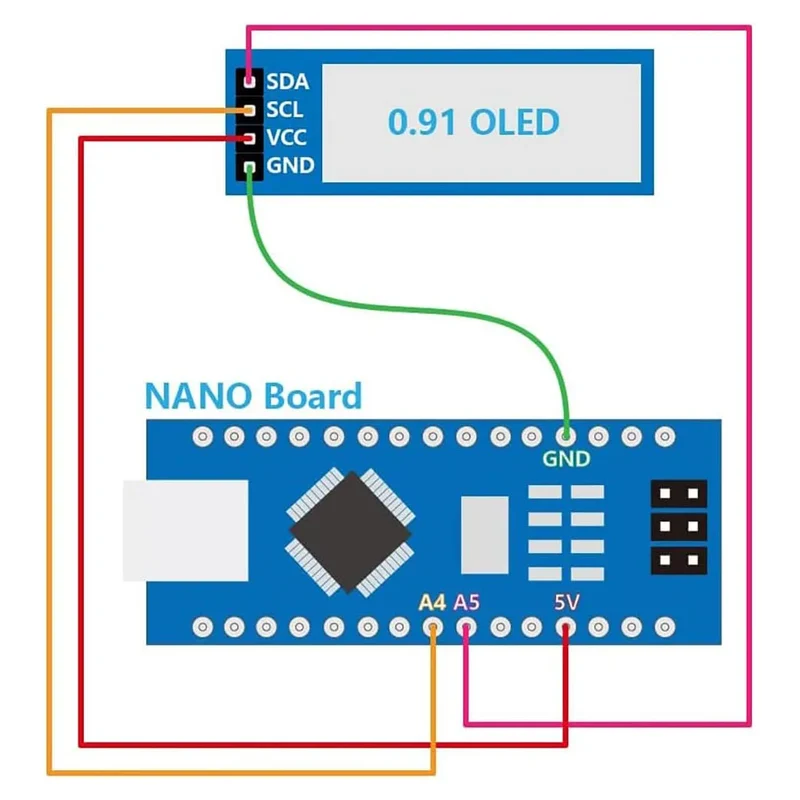

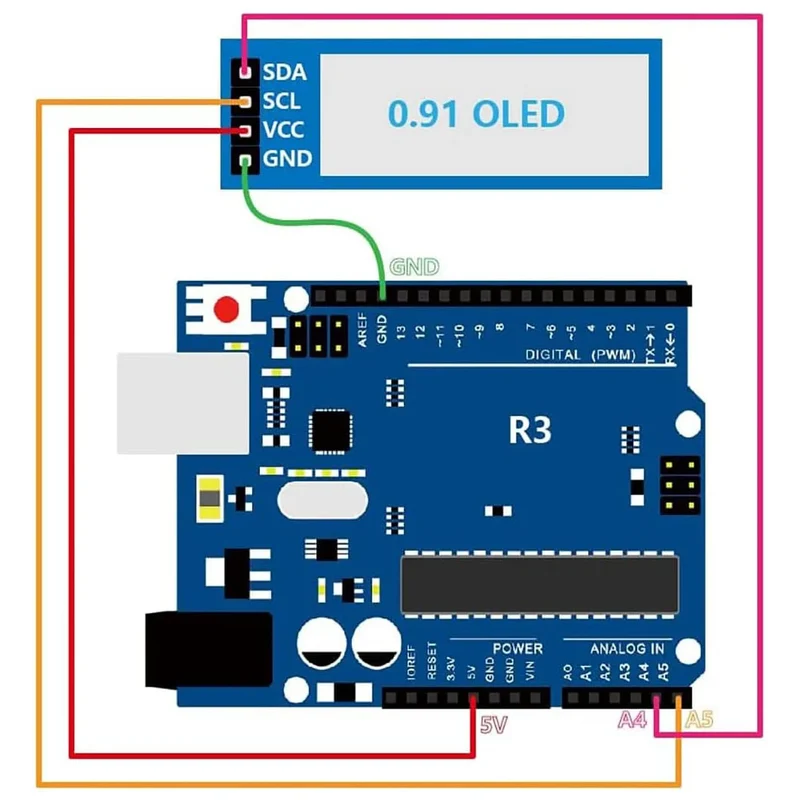

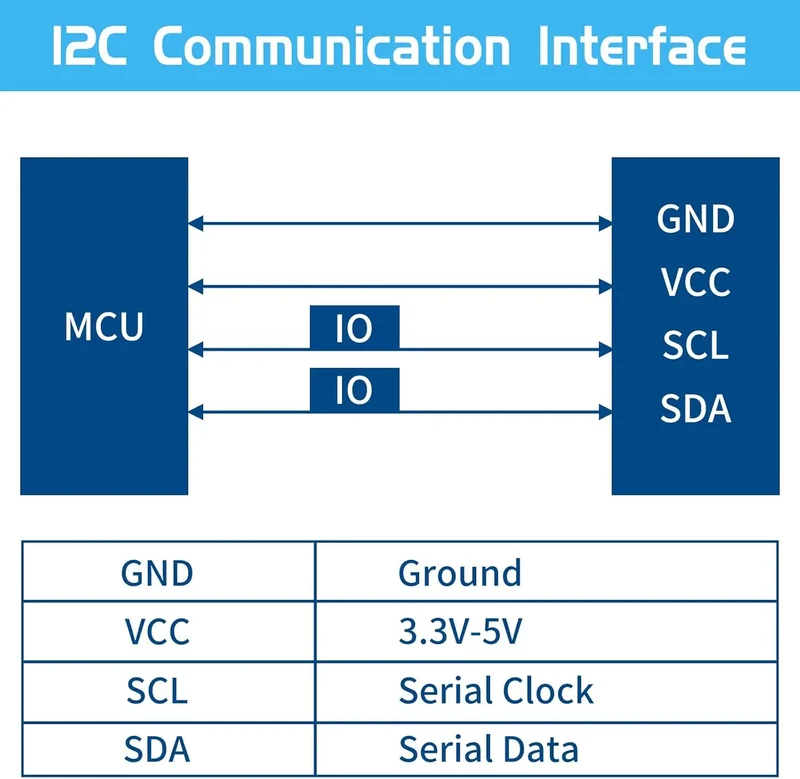

Pin description:

GND: Power Ground

VCC: Power + (DC 3.3 - 5v)

Operating temperature: -40 ~ 85 celsius degree

SCL: clock line

SDA: data line

Package includes:

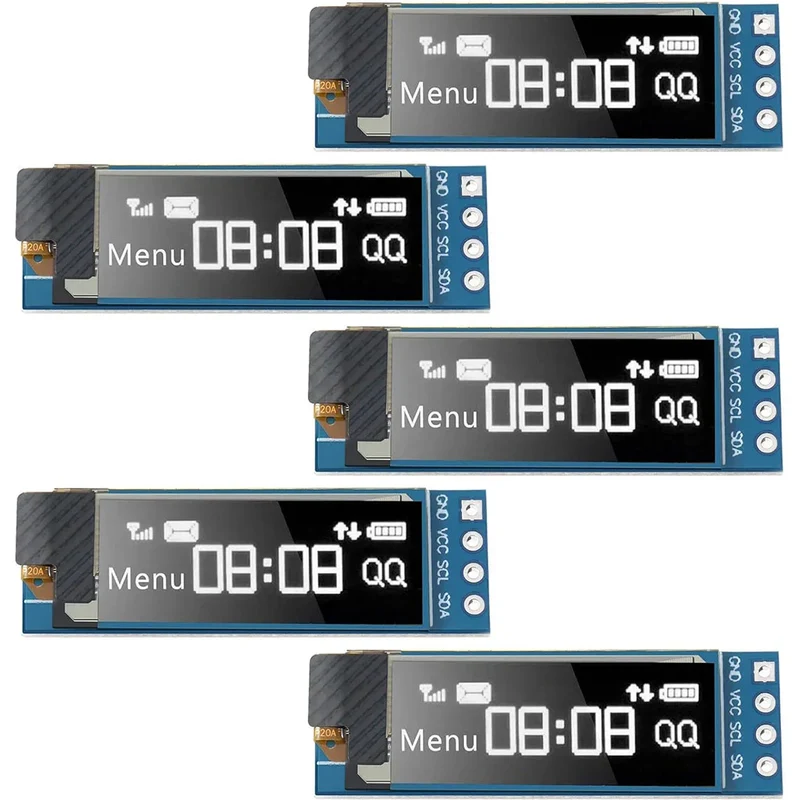

1/5PCS I2C OLED display module

(Please choose the model and quantity you need,we will send the goods according to your choice.)
